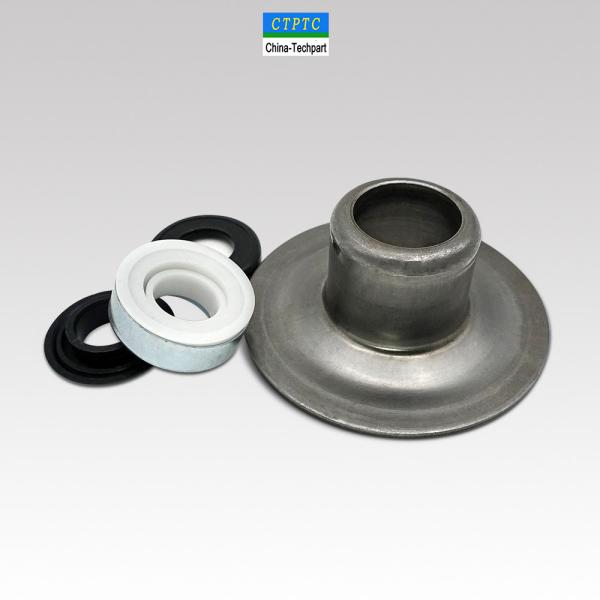

Galvanized TK6204-140 Shaft Bearing SPHC Housing Deepness 42.5mm
Galvanized TK6204-140 Shaft Bearing SPHC Housing Deepness 42.5mm
Specifications
Brand Name :
China-Techpart
Model Number :
TK6204-140(135)
Certification :
ISO9001-2008
Place of Origin :
Anhui of China
MOQ :
500 sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
18000 sets per week
Delivery Time :
18-25 work days
Packaging Details :
Standard export packing
Material :
SPHC(Pickled steel)
Applicable Industries :
Building Material Shops, Manufacturing Plant, Mining etc
Quality :
High precision with low tolerance
Bearing Type :
6204
Roller Diameter :
140mm
Flange Diameter :
135mm
Deepness :
42.5mm
Hole Diameter :
35mm
Price :
0.4 - 2.5 USD
Description

Best Quality Galvanized TK6204-140 Long Life Bearing Housing

Detailed Parameter:

Bearing Pipe Dia (mm) Shaft (mm) Flange (mm) Caliber (mm) Hole Dia (mm) Bearing Seat Dia (mm) Deepness(mm) Thickness(mm)
6204 63 20 59.5 47.1 35 47 42.5 2.5
76 72 2.5
89 83/84/85 2.5
102 97 2.5/3.0
108 103 2.5/3.0
114 109/110 2.5/3.0
127 121/122 2.5/3.0
133 127/128 2.5/3.0
140 134/135/136 2.5/3.0
152 146/147 2.5/3.0
159 152/153 2.5/3.0
6205 76 25 72 52.1 40 52 45 2.5
89 83/84/85 2.5
102 97 2.5/3.0
108 103 2.5/3.0
114 109/110 2.5/3.0
127 121/122 2.5/3.0
133 127/128 2.5/3.0
140 134/135/136 2.5/3.0
152 146/147 2.5/3.0
159 152/153 2.5/3.0

Material for every part :

1. Metal Housing: Carbon steel SPHC from Baosteel Group

2. Inner Sealing Ring: Nylon PA6

3. Double Labyrinth Seals: POM

4. Metal Cover: Carbon Steel SPCC

5. Protect Shell: Nylon PA6

Product (TK Series Bearing Housing and Seals):

Our roller bearing housing and the relative seals are with high precision, good gloss,

without stretching scars or burrs. Steel material is from Shanghai Baosteel Group, which is the best steel

manufacturer in China.

Galvanized TK6204-140 Shaft Bearing SPHC Housing Deepness 42.5mm

Factory Show:

Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,

and passed ISO9001-2008 certificate. We have 4 advanced production lines, leading us

one of the largest and most professional bearing housing maker in China.

Galvanized TK6204-140 Shaft Bearing SPHC Housing Deepness 42.5mm

Packing:

Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,

we could also packed the items as requested.

Galvanized TK6204-140 Shaft Bearing SPHC Housing Deepness 42.5mm

Customer Visiting:

Our business has been expanded to over 30 countries over the world like Russia, USA, Netherlands,

Chile, Mexico, Colombia, Thailand, Indonesia.,etc.

Galvanized TK6204-140 Shaft Bearing SPHC Housing Deepness 42.5mm

Welcome to visit our factory ! If you have any problem, just be free to contact us !
