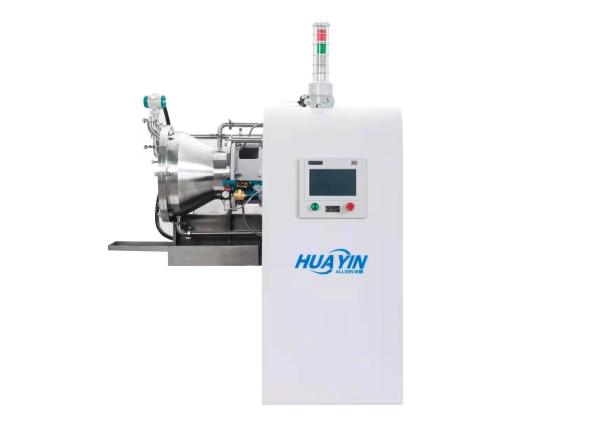

High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow
High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow
High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow
High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow
High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow
High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow
Specifications
Brand Name :
ALLWIN
Model Number :
FS10
Certification :
ISO9001
Place of Origin :
Chongqing,China
MOQ :
1 unit
Price :
USD 53000---65000 Per Unit
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
30 Units per Month
Delivery Time :
20-30 Work Days
Packaging Details :
Wooden Boxes
Inner Chamber Matrial :
9Cr18Mo, SUS 304 Stainless Steel
Outter Chamber Material :
SUS 304 Stainless Steel
Effective Volume :
10 L
Motor Energy :
18.5KW
Ex-proof Performance :
Explosion-proof, Non Explosion-proof
Operation Control :
touching screen
Application :
baterry materials, new materials, MLCC
Warranty :
12 months
Dispersing type :
Cone barrel rod type
Discharging manner :
dynamic-axis discharging
Finished fineness :
100nm
Grinding media :
0.05-1.0mm
Description

High Efficiency Large Flow Nano Wet Grinding Horizontal Bead Mill For New Materials ​


Cone barrel rod type nano griding horizontal bead mill is an very high technical and smart grinding mills, which can calculate and reduce the energy of grinding with different slurry flow path. and the energy saving capability is strong enough, and final fineness can reach to very small, according to materials final requirement. Usually applicated in postive and negative materials of baterry, MLCC,electric inks, etc.

1. Technical data of nano grinding bead mill

No Main Parameters FS10 bead mill Notes
1 Motor power
(kW)		 18.5KW Ex-proof/non ex-proof available
2

Effective volume of

grinding chamber (L)

 10L volume can be suggested according to different grinding materials and usages
3 Water pressure
(MPa)		 0.3
4 Cooling water consumption (L/min) 2.0 -2.5 m3/h Advision: Users offer the Cooling water less 10°C
5 Dimensions:L*W*H
(mm)

1500*1200*2000
6 Weight
(kg)		 1000 Different as for different chamber volume
2. Configuration Instructions

No

Main parts

 FS10 Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel 9Cr18Mo alloy steel, SUS 304 stainless steel different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating
4

Material of dispersing system

 304 stainless steel,9Cr18Mo wearable steel Choose what you need
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Dynamic discharge screen ring dynamic cone barrel screen ring with very small gaps (gaps can be customized according to differnet fineness requirment) zirconia beads can vary from 0.05 to 1.0mm
7 Mechanical seal Double end mechanical seal patent technology
8 Feeding pump 1" ARO diaphragm pump IngersoII Rand
3. Customer investigation
High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow
4. Exhibition show
High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow


5. The package and shipping:

Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

6.other related products

We can also offer other related products in production lines, like disperser, moving tank, zirconia bead, grinding medium charging&discharging machines, etc. there are some pictures for your referrence.

High Efficiency Nano Wet Grinding Horizontal Bead Mill For New Materials Large Flow

We warmly welcome all potential customers to visit our factory, also welcome to send materials for testment.

If you are interested in our machines, please feel free to contact us, and we will give response in 24-48 hours.
