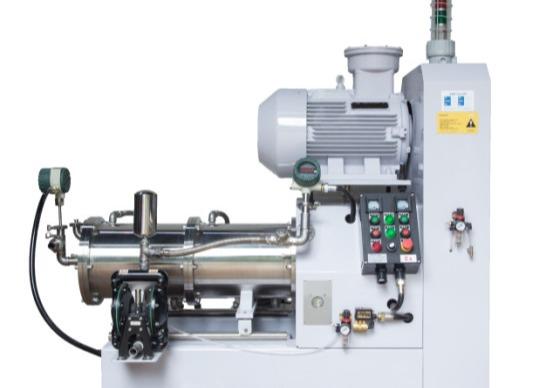

100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow
100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow
100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow
100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow
100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow
100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow
Specifications
Brand Name :
AllWin
Model Number :
HZ100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1-5sets
Price :
USD24000-42000/set
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
30sets /month
Delivery Time :
20-30 Working Days
Packaging Details :
Wooden boxes
Inner cylinder material :
silicon carbide, wearable steel, stainless steel
Power :
55kW
Voltage :
380 V/220V/415V
Litre :
100L
Inner chamber :
ceramics, wearable steel,. stainless steel,PU
Outter chamber material :
Stainless Steel
Discharge type :
dynamic discharge
Disperser's material :
Wearable steel 9Cr18Mo, stainless steel,PU
Motor :
Ex-proof/ non ex-proof
Disperers' structure :
disk combined with turbine
Warranty :
12 months
Description

100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow

HZ series is disk dispersers with turbine combined type structure with dynamic discharge, could meet many high viscosity slurrys grinding, llike special paint.Final fineness can reach 15-30um.

Characters of Allwin brand grinding mills

1.easy to install and maintain,

2.rather humanized considering the safety, working comfort level,etc.

3. tested before shipping, which makes sure of availability after mills reach to your side.

4. lower energy comsimption, and higher effeciency

The main technical parameters

No main parameters HZ 100 Note
1 Explosion-proof motor kW 55 ( Ex-proof)
2

Effective volume of

Grinding chamber (L)

 100
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.0-2.5 Advise offer the Cooling water less 10°C
5 Dimension*W*H (mm) 2300*1240*2150
6 Weight (kg) 1800

The main instructions:

NO Items HZ 100 Notes
1. Core technologies Mechanical sealing

Intelligent double mechanical

seal with mandatory

with self-lubricating-cooling system

 Allwin technology
Inner Chamber Silicon Ceramic, wearable steel, stainless steel
Grinding system stainless steel,wearable steel, PU Disc type
dynamic discharge screen ring stainless steel, wearable steel, PU
2. Feeding and discharging end covers on the Chamber 304 stainless steel Easy Clean
3. Bearing NSK Bearing
4. Feed pump 1"/1.5” Pneumatic diaphragm pump
5. Outer chamber 304 stainless steel
6. Dispersing shaft 40Cr with hard chromium plating
7. Electrical appliances Motor 55kW Ex-proof Brand:Pinxing or Wannan
Safety protection system slurry over-temperature, chamber over-pressure, sealing liquid lower- level, sealing liquid over pressure
Electrical components Electrical box, pressure gauge, thermometer, solenoid valve, winding pipe with EX-proof
Light alarm system with
Electrical brand Delixi
8 maintainance slide track 1 free set
100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow
photoes of processing
100L Dynamic Discharge Horizontal Wet Grinding Mill With Large Flow
Key parts
Packing and delivery

The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

If need more detailed information and price ,please contact us soon and warmly welcome to visit us!
