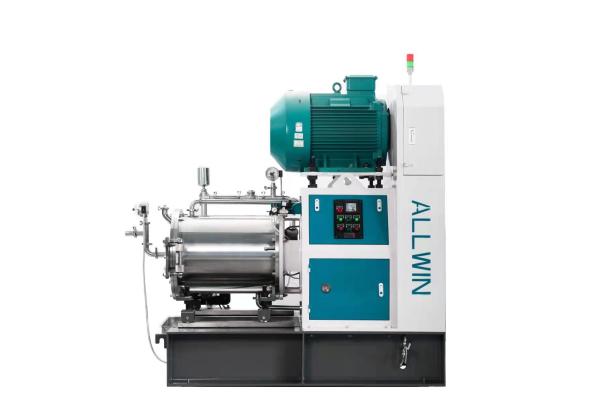

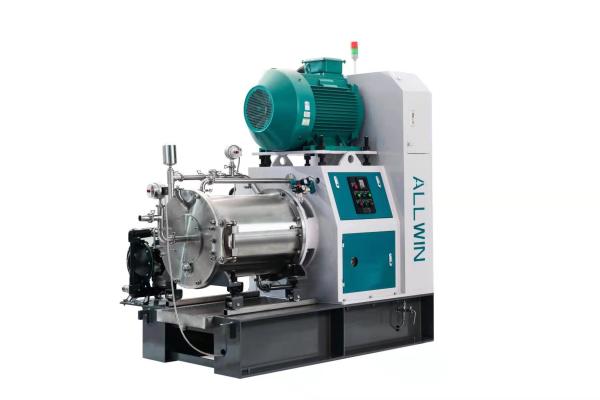

50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production
50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production
50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production
50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production
50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production
50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production
Specifications
Brand Name :
AllWin
Model Number :
SH50
Certification :
ISO9001
Place of Origin :
China
MOQ :
1-5sets
Price :
USD26000-35000/set
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
30sets /month
Delivery Time :
20-30 Working Days
Packaging Details :
Wooden boxes
Power :
55/75KW
Voltage :
380 V/220V/415V
Litre :
50/60L
Disperser's material :
stainless steel, 9Cr18Mo alloy steel, PU coated with stainless steel, ceramics
Motor :
Ex-proof or non ex-proof motor
Disperers' structure :
pin type
Outter chamber material :
Stainless Steel
Application :
pesticides
Description

50L 60L Pin Type Middle/Mass Production Water Based Bead Mill Machine In Pesticides Formulation Grinding​

Pesticides formaulation is a large range, and each small classification has different requirement of fineness. Some requires D90 finess less than 2um, which needs high energy density bead mill.That's why we recommend pin type bead mill.

There are still many materials for your option, such as silicon carbide ceramics, Cr12Mov wearable steel, 304 stainless steel, PU, etc.the operation manner can be botton column or touching screen with PLC.


Main instructions:

No

Main parts

 SH50/SH60Notes
1Material of External vesselSUS 304 stainless steel
2Material of Inner grinding vessel9Cr18Mo wearing-resistant steel, stainless steel, ceramics, pu coated with stainless steeldifferent mateials for choice
3Material of Dispersing shaft40Cr with hard chromium plating
4

Material of dispersing system

pin type with alloy steel or stainless steelChoose what you need
5Feeding and discharging end covers on the cylinderSUS 304 stainless steel
6Static discharge screen ringWire Wound screen ring with 304.Gaps: 0.5 mm.dynamic scraper: alloy steel
7Mechanical sealDouble end mechanical seal
8Feeding pump1" ARO diaphragm pumpIngersoII Rand

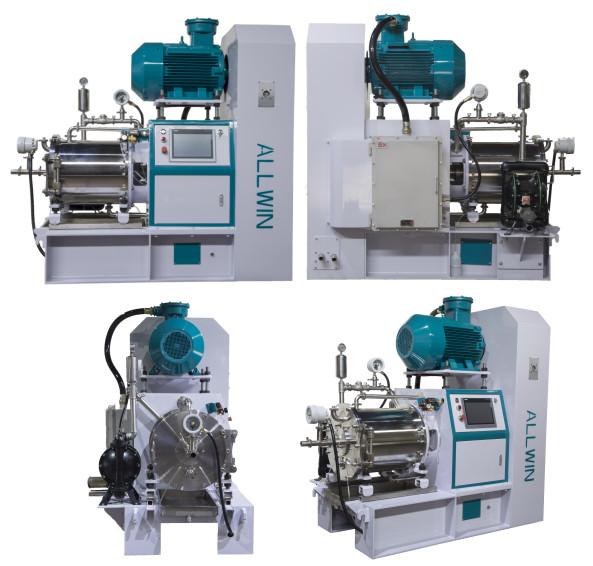

Key parts:
50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production

The pictures of processing and inspection
50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production

Packing and delivery: Wooden boxes and FUL or LCL container

50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production

50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production


Related products:
Allwin also offer related grinding mediums and dispersing machines for grinding and dispersing processing.More informations can contact our sales manager.

50L 60L Water Based Bead Mill Machine Pin Type Middle / Mass Production

The After sales service:


1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.


FAQ

Q1:Trading company or manufacturer?

A1: We are the manufacturer.

Q2: Is it available if we want to visit your plant?

A2: Yes, of course. Warmly welcome you to visit our factory to know our process, our technology.and communication face-to-face is rather benecial to built trust degree.

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly. Warranty of all new disperser is one year free.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
