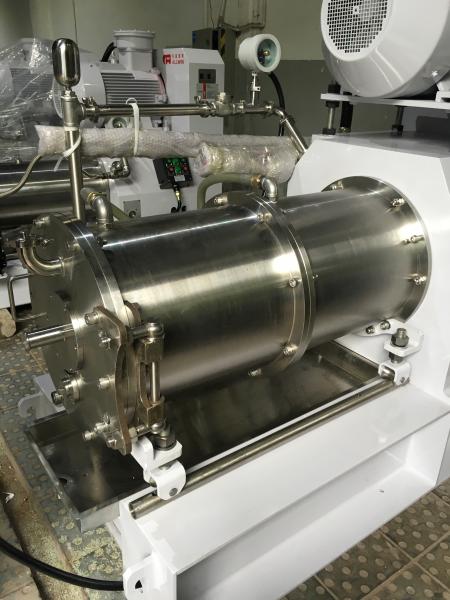

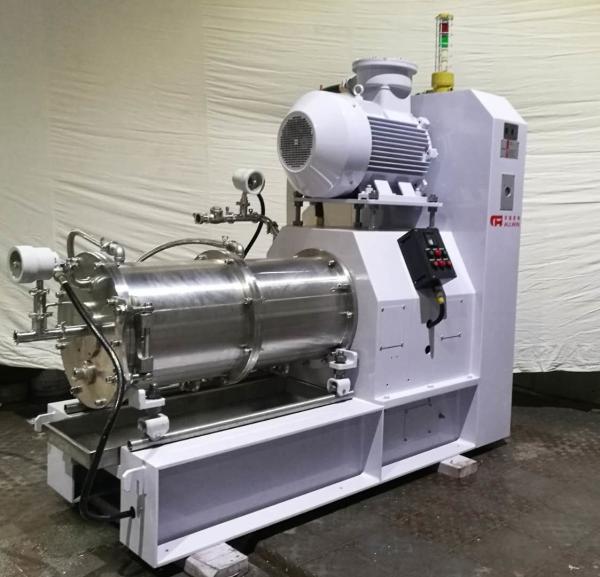

10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding
10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding
10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding
10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding
10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding
10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding
Specifications
Brand Name :
AllWin
Model Number :
SP100
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD 25000--USD 35000/set
Payment Terms :
T/T, MoneyGram, Western Union, L/C,
Supply Ability :
30sets /month
Delivery Time :
20-30 Working Days
Packaging Details :
Wooden boxes
Power :
55kW
Voltage :
380 or you need
Litre :
100L
Inner chamber material :
Silicon carbide Ceramics,alloy steel or you need
Warranty :
12 month
Life period :
over 10 years
Fineness :
5-10um
Experience :
28 years
Description

Disc Type Water/ Oil Based Wet Grinding In Coating 100L 10 um Horizontal Bead Mill Machine

The main introduction:

1. Composition: chamber and disc dispersing system, input system, output system, cooling system, driving system, lubrication system.

2. Corrision resistence and long worklife.

3. Fineness ensurance: grinding medium size and screen ring

4. Temperature control: sectional double spiral water course.

5. High Efficiency: higher 15-30%

6. Different materials for dispersing system: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

The Technical Data:

No main parameters SP100 Note
1 Motor power (kW) 55kW (Non Ex) ex-proof for your choice
2

Effective volume of

grinding chamber (L)

 100 volumes can be customized
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 2000*900*2000
6 Weight (kg) 1800

The Configuration instructions:

No Main parts SP100 Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel Silicon Carbide Ceramics, 9Cr18Mo alloy steel, SUS 304 stainless steel different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating
4

Material of Dispersing disk

(agitator disk)

 PU coated 304 stainless steel,
Cr12MoV, GCr15, 9Cr18Mo alloy steel		 Choose what you need
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm.
7 Mechanical seal Double end mechanical seal
8 Feeding pump 1"/1.5” ARO diaphragm pump; IngersoII Rand

The details and spares:
10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding
Display of customer site
10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding

The packing and delivery (firstly anti-abrasion film and packed in wooden boxes)

10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding

The related products:

10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding

Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and dispersing disks can be choosen according to your different grinding materials and industries.
3.The control system will match with different demands, such as PLC or traditional button type.


If need more detailed information and price , please don't hesitate contact us, Also Warmly welcome to visit us.
