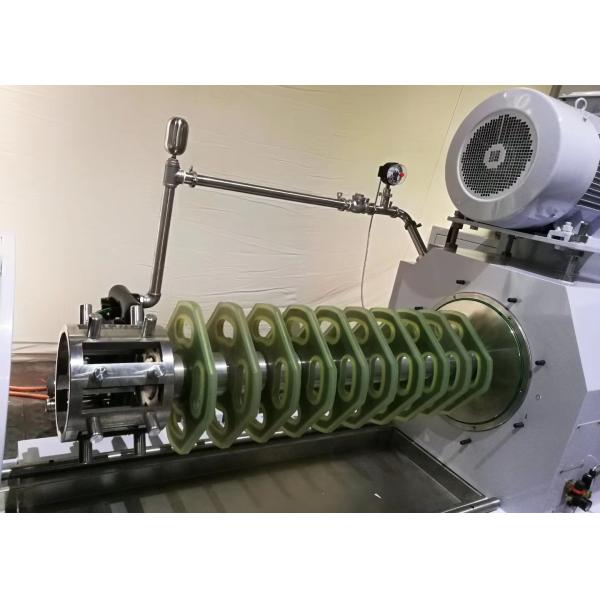

18.5kW Axis Discharge Wet Grinding Bead Mill Machine For Namo Fineness
18.5kW Axis Discharge Wet Grinding Bead Mill Machine For Namo Fineness
18.5kW Axis Discharge Wet Grinding Bead Mill Machine For Namo Fineness
18.5kW Axis Discharge Wet Grinding Bead Mill Machine For Namo Fineness
Specifications
Brand Name :
AllWin
Model Number :
HZ10
Certification :
ISO9001
Place of Origin :
China
MOQ :
1-5sets
Price :
USD22000-38500/set
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
30sets /month
Delivery Time :
20-30 Working Days
Packaging Details :
Wooden boxes
Inner cylinder material :
silicon carbide, or other materials for optional
Power :
11kW
Voltage :
380 V/220V/415V
Discharge type :
Axis discharge
Litre :
10L
Disperser's material :
Wearable steel 9Cr18Mo
Motor :
Ex-proof
Disperers' structure :
disc combined with turbine
Outter chamber material :
Stainless Steel
Description

18.5kW Axis Discharge Wet Grinding Bead Mill Machine FS10 For Namo Fineness

FS series is pin type structure with Axis discharge, could meet all kinds of namometer fineness griding, could reach 50nm, widely used inMLCC ,Lithium and namo materials industry.

Allwin brand grinding mills are easy to install, and operation is rather humanized considering the safety, working comfort level,etc. All mills are tested before shipping, which makes sure of availability after mills reach to your side. The installstion can be operated with attached installation and maintainence instructions. If there are other problems need our assistance, contact us, we offer on-line assistance as soon as possible.

The Main parameter

No main parameters FS10 Note
1 Explosion-proof motor kW 18.5kW ( Ex-proof)
2

Effective volume of

Grinding chamber (L)

 10L
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.0-2.5 Advise offer the Cooling water less 10°C
5 Dimension*W*H (mm) 1500*1200*2000
6 Weight (kg) 1300

The Main instructions:

NO Items FS10 Notes
1. Core technologies Mechanical sealing

Intelligent double mechanical

seal with mandatory

with self-lubricating-cooling system

 Allwin technology
Inner Chamber SUS304 stainless steel Cone Barrel
Grinding system SUS304+Wearable steel (9Cr18Mov) Pin type
Static discharge screen ring Axis discharge and SUS304 Screen (Dynamic rotation)
2. Feeding and discharging end covers on the Chamber 304 stainless steel Easy Clean
3. Bearing NSK Bearing
4. Feed pump 1” Pneumatic diaphragm pump with Buffer tank
5. Outer chamber 304 stainless steel
6. Dispersing shaft 40Cr with hard chromium plating
7. Electrical appliances Motor 18.5kW Ex-proof Brand:Pinxing or Wannan
intelligent control Siemens SMART1000 touch screen
Safety protection system Material temperature, chamber pressure, sealing liquid level, sealing liquid pressure
Electrical components Electrical box, pressure gauge, thermometer, solenoid valve, winding pipe with EX-proof
Light alarm system with
Electrical brand Delixi
8. Cooling water pipeline Hose+ Hard tube
9. Trace slide 1 sets for free
18.5kW Axis Discharge Wet Grinding Bead Mill Machine For Namo Fineness

18.5kW Axis Discharge Wet Grinding Bead Mill Machine For Namo Fineness

Related products:

Allwin also offer related grinding mediums and dispersing machines for grinding and dispersing processing.More informations can contact our sales manager.

18.5kW Axis Discharge Wet Grinding Bead Mill Machine For Namo Fineness

The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

If need more detailed information and price ,please contact us soon and warmly welcome to visit us!
