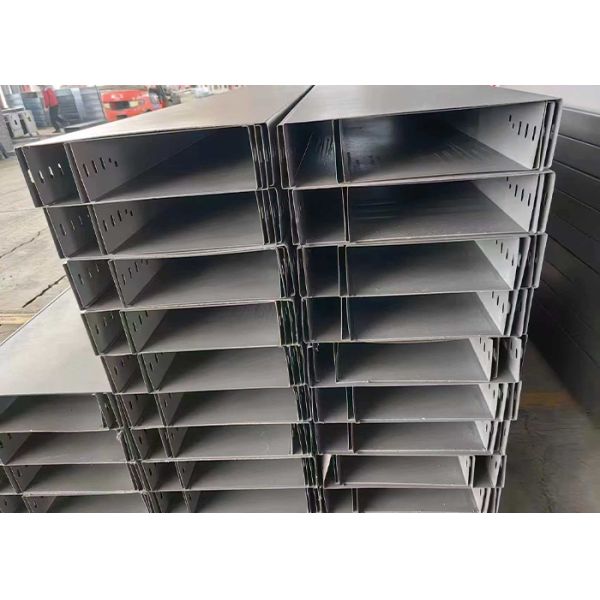

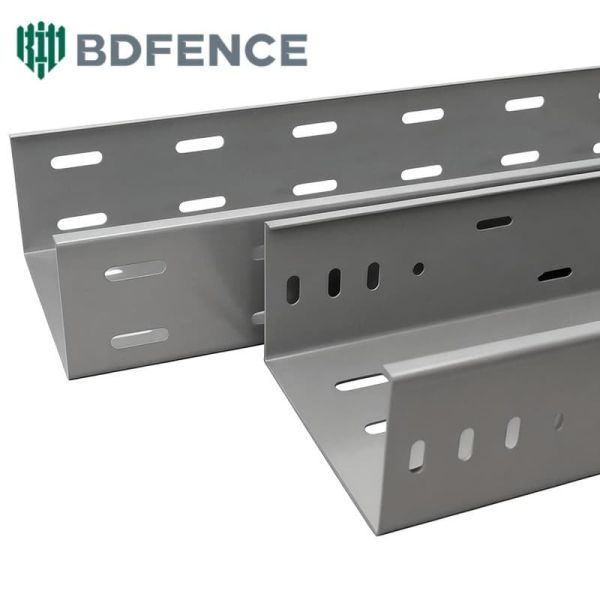

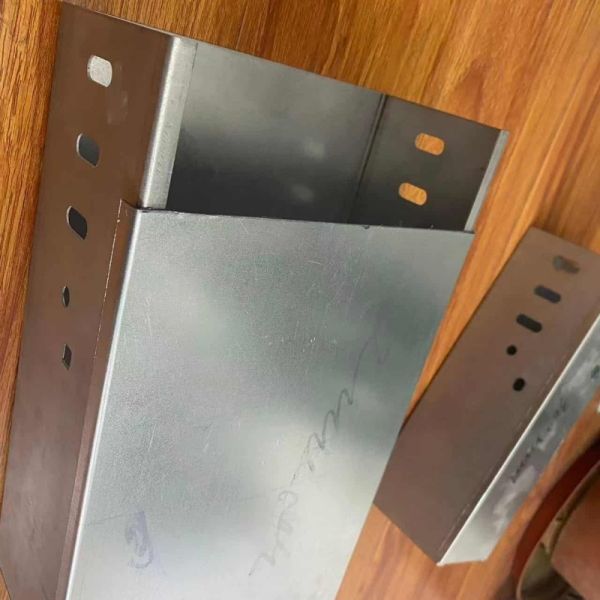

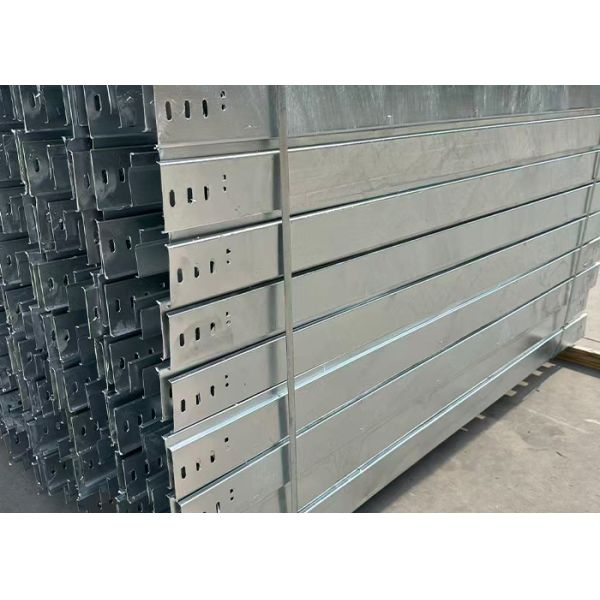

Bending company's 50mm galvanised cable tray specification& positioning

The core parameters and application positioning of the "50mm Galvanized Cable Tray" are summarized in the table below:

Bending company's 50mm galvanised cable tray Primary Application Scenarios

Due to its moderate capacity and cost, the 50mm high galvanized tray is widely used in:

• Building Electrical Systems: Horizontal and vertical routing for lighting, socket outlets, and low-voltage (network, telephone) lines in office buildings, shopping malls, and residential complexes.

• Industrial Control: Tray systems for control cables, instrument signal cables, and low-voltage power lines in factory production lines and equipment rooms.

• Small Equipment Rooms: Cable convergence and management above or below network cabinets.

• Lightweight Equipment Floors: Cable routing in equipment mezzanines with low space and load requirements.

Bending company's 50mm galvanised cable tray Important Selection & Installation Notes

To ensure safety and reliability, pay attention to the following during selection and installation:

1. Accurate Load Calculation: Always calculate the total weight of all cables and determine appropriate support spacing based on the supplier's load-span curve. Avoid tray deformation due to overload.

2. Distinguish "Heavy-Duty" vs. "General Purpose": A 50mm high tray typically does not fall into the "heavy-duty" category. For heavier cables or longer span requirements, choose a model with higher side walls, thicker plates, and stiffeners, and request load test reports.

3. Environmental Suitability: In damp or chemically aggressive environments, verify if the hot-dip galvanizing thickness is sufficient, or consider trays with galvanizing plus powder coating ("zinc + plastic") for better protection.

4. System Integrity: Ensure the use of original or compatible connection plates, screws, and bonding jumpers to guarantee electrical continuity and structural strength.



Bending company's 50mm galvanised cable tray Summary:

The "50mm Galvanized Cable Tray" is a cost-effective, general-purpose cable routing solution. The key to its successful application is: precisely matching the cable scale, strictly controlling support spans, and ensuring it is used within its designed environmental conditions. For more demanding loads or environments, higher-grade products should be considered.
