Perforated Type 90 Degree Bend Cable Tray
Perforated Type 90 Degree Bend Cable Tray
Perforated Type 90 Degree Bend Cable Tray
Perforated Type 90 Degree Bend Cable Tray
Perforated Type 90 Degree Bend Cable Tray
Perforated Type 90 Degree Bend Cable Tray
Specifications
Brand Name :
BDINDUSTRIAL
Model Number :
90 Degree Bend Cable Tray
Certification :
IEC 61537，BS EN 61537,NEMA/CSA
Place of Origin :
CHINA
MOQ :
100 sets
Price :
5-10 USD
Payment Terms :
L/C,D/P,T/T
Supply Ability :
50000m/week
Delivery Time :
15-25 work days
Packaging Details :
Carton, Box, Wooden carton
Product Name :
Cable Tray，90 Degree Bend
Keywords :
90° Cable Tray Elbow
Material :
Carbon Steel,Stainless Steel,Aluminum
Categories :
Ladder Type Bend，Perforated Type Bend，Solid Bottom Type Bend
Description

90 Degree Bend Cable Tray

The 90 Degree Bend Cable Tray of Bending provides a safe, organized pathway for power and control cables, protects cables from damage, and ensures neat installation in commercial, industrial, and construction projects.

Perforated Type 90 Degree Bend Cable Tray

Perforated Type 90 Degree Bend Cable Tray

Common Specifications

The 90 Degree Bend Cable Tray of Bending is essential for routing cables around corners, enabling safe and organized installation.

Feature Description
Core Function To change cable routing direction within a cable tray system
Typical Angles Most common is 90°; also called "90° Horizontal Bend"

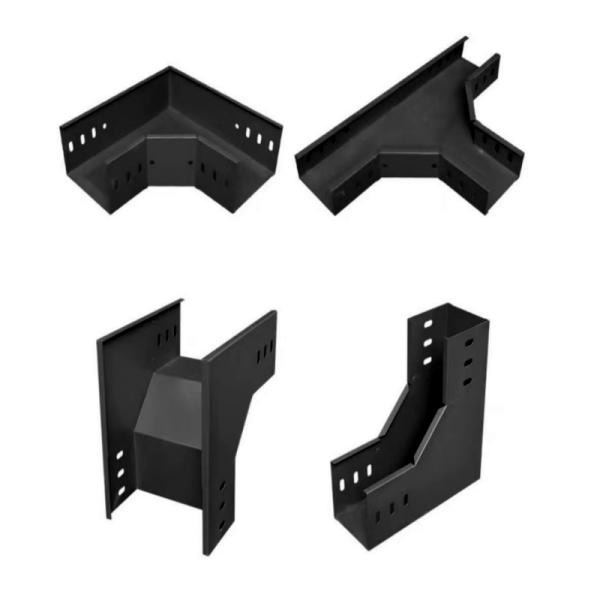

Key Directions Horizontal Bend: Changes direction within the same horizontal plane.

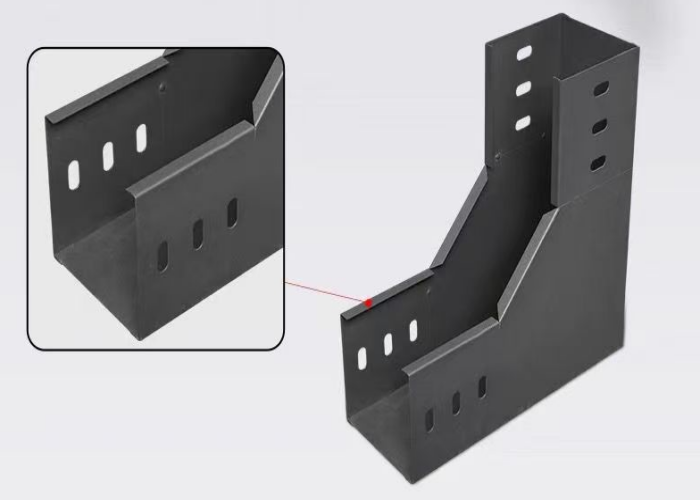

Vertical Bend: Changes direction upward or downward
Common Types Ladder Type: Open rung design for ventilation.
Solid/Perforated Type: Has a continuous or partially enclosed base
Standard Materials Aluminum, Galvanized Steel, Stainless Steel

Primary Application Scenarios

Application Scenario Specific Role & Details

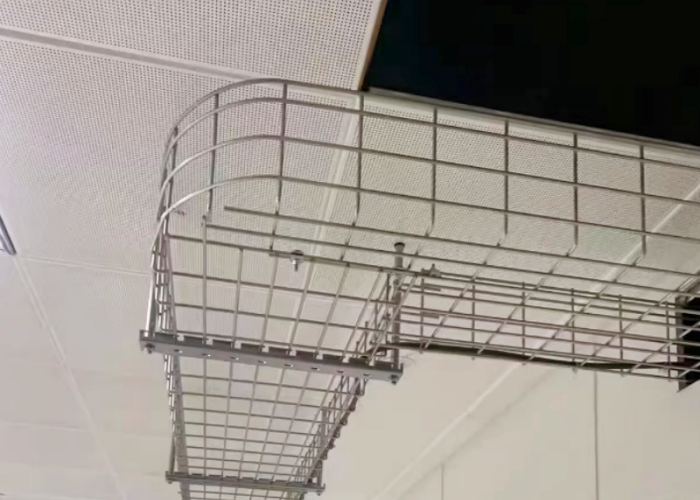

Navigating Building Corners Enables cable trays to make 90-degree horizontal turns around corners in hallways, equipment rooms, and along perimeter walls, maintaining a neat and structured pathway.
Inter-floor Vertical Routing Acts as a vertical riser bend to facilitate cable runs between different floors through shafts or raised floors, changing direction vertically.
Routing Around Obstructions Allows the cable tray system to detour around fixed structural obstacles like columns, beams, or large pipes without interrupting the run.
Terminating at Equipment Used to turn the tray run precisely towards control panels, switchgear, server racks, or transformers for a clean and direct cable drop.
Creating Perimeter Loops In large facilities, multiple 90-degree bends are used in conjunction with straight sections to form rectangular or square cable tray loops around a space.

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we have been in this field for over 30 years.

2. Can you provide samples?

Yes, we can provide samples with our product catalog. (However, the express delivery cost will be borne by you.)

3. What payment terms do you accept?
Payment methods: Wire transfer (T/T), Letter of Credit (L/C), MoneyGram, Credit Card, PayPal, Western Union.

4. What are your shipping terms?
FOB, CNF, CIF, DDU, DDP.

5. What is your delivery time?
We always have ample stock of materials to meet your urgent needs. The fastest delivery time is only 10 days. After placing an order, we will send you the exact delivery time and production schedule.
