Cable Tray 90 Degree Bend

In electrical system construction and maintenance, cable tray accessories play a critical role. These accessories serve as integral components in organizing and protecting cable lines, ensuring their efficient performance and longevity. Selecting the right cable tray accessories is crucial for the safety, stability, and ease of maintenance of any electrical system.

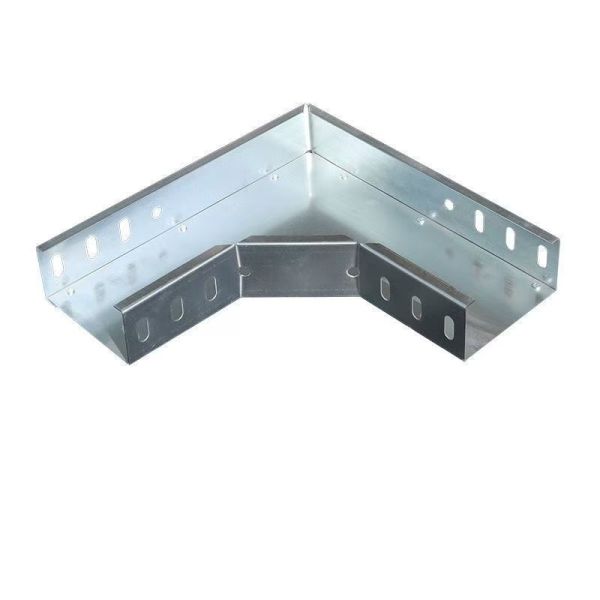

The Cable Tray 90 Degree Bend is a pre-fabricated fitting used in cable tray systems to change the direction of the tray run by 90 degrees. It's a fundamental component for navigating corners in buildings, around obstacles, or following the layout of a structure.As a leading cable tray manufacturer, Bending offers one-stop cable tray solutions. We provide accessories and installation instructions for our cable tray products to ensure proper installation and operation.

Cable Tray 90 Degree Bend Function

• Primary Function: To allow the cable tray system to make a right-angle turn
• Protecting Cables: Maintaining a proper bend radius to prevent cable damage, insulation stress, and signal degradation (especially for data/communication cables).
• Providing Continuous Support: Offering a smooth, guided path for cables as they change direction.
• Ensuring System Integrity: Creating a structurally sound turn that maintains the tray's load-bearing capacity.

Cable Tray 90 Degree Bend Types

• Horizontal Bends

• • Horizontal 90° Elbow:The most common type. It provides a smooth, radiused turn to protect cables from a sharp bend.
  • Horizontal 90° Tee:A special fitting where a straight run has a 90-degree branch coming off its side.
• Vertical Bends

• • Vertical 90° Up-Bend: Changes direction from horizontal to vertical.
  • Vertical 90° Down-Bend:Changes direction from horizontal to vertical.

Cable tray accessories Advantages

• Versatility&Diversity

Our cable tray and accessories. are available in a variety of shapes and sizes to suit different cable types and sizes. These versatile accessories ensure smooth installation and seamless integration with our cable tray product range.

• High-Quality Materials and Superior Workmanship
  Our cable trays are manufactured from high-quality materials such as galvanized steel, stainless steel, aluminum alloy, and fiber-reinforced plastic. These materials boast excellent durability, corrosion resistance, and structural strength. Advanced manufacturing processes ensure the durability of these accessories and their ability to withstand harsh environments.
• Fast and Flexible Installation
  Our cable trays are designed for quick and easy installation, enabling efficient cable routing and providing flexibility for changes and additions to the cabling system. This saves time and labor during installation and allows for future modifications as needed.
• Competitive Pricing
  Bending offers cable trays at competitive factory prices, ensuring value for money without compromising quality. Our diverse product range allows us to provide the right wiring systems and accessories for a wide range of projects and budgets.

FAQS

1. Are you a manufacturer?

Yes, we have specialized in this field for over 30 years.
