Cable Tray Support Brackets

The reliability of electrical systems is inextricably linked to the correct selection of cable tray accessories. As a crucial component of the cable tray system, accessories bear the core tasks of fixing, connecting, rerouting, and protecting cables. Their quality and suitability directly determine the quality of cable laying, long-term performance, and protection level. Carefully selecting matching accessories not only improves the organization and safety of cable routing but also lays a solid foundation for the long-term stable operation of the system, while significantly simplifying future inspections, expansions, and maintenance. This demonstrates the fundamental impact of detailed design on overall safety and efficiency in electrical infrastructure.

The Cable Tray Support Bracket is a structural component used to securely attach and suspend a cable tray system from a wall, ceiling, column, or other solid surface. It is the crucial link that transfers the weight of the cables and the tray itself to the building's structure.As a leading cable tray manufacturer, Bending offers one-stop cable tray solutions. We provide accessories and installation instructions for our cable tray products to ensure proper installation and operation.

Cable Tray Support Brackets Purpose

• Primary Purpose: provide safe, stable, and reliable support for the cable tray.
• Proper Elevation: Keeps cables off the floor, protecting them from damage, water, and debris.
• Structural Integrity: Prevents the tray from sagging or collapsing under the weight of cables.
• Compliance: Meets electrical and building codes that specify support spacing and load requirements.
• Organization: Maintains a neat, professional, and accessible cable management system.

Cable Tray Support Brackets Common Types

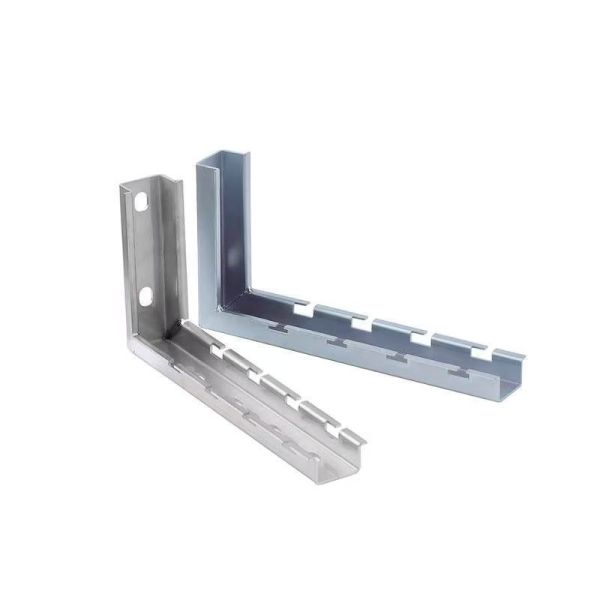

• Cantilever Bracket:

The most common type. An L-shaped or triangular bracket mounted vertically to a wall, with the tray attached to the horizontal arm.

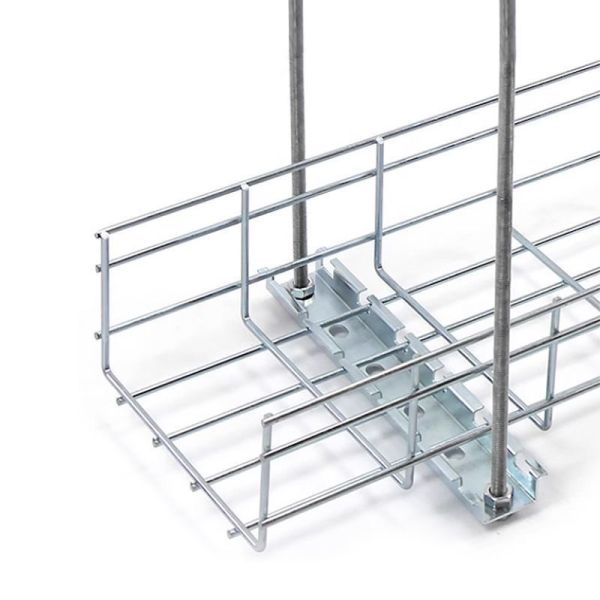

• Trapeze Hanger:

Used to suspend a tray from a ceiling or overhead structure. It consists of a horizontal crossbar supported at both ends by threaded rod or all-thread dropped from the ceiling.

• Upright Support:

A vertical post mounted to the floor, with a bracket at the top to support the tray. Used for elevating trays in open areas or for changes in elevation.

• Center-Hung Bracket:

A single rod drops from the ceiling and connects to a bracket that clamps or bolts to the side of the tray. Used for lighter loads or smaller trays.

Cable tray accessories Advantages

• Versatility&Diversity

Our cable tray and accessories. are available in a variety of shapes and sizes to suit different cable types and sizes. These versatile accessories ensure smooth installation and seamless integration with our cable tray product range.

• High-Quality Materials and Superior Workmanship
  Our cable trays are manufactured from high-quality materials such as galvanized steel, stainless steel, aluminum alloy, and fiber-reinforced plastic. These materials boast excellent durability, corrosion resistance, and structural strength. Advanced manufacturing processes ensure the durability of these accessories and their ability to withstand harsh environments.
• Fast and Flexible Installation
  Our cable trays are designed for quick and easy installation, enabling efficient cable routing and providing flexibility for changes and additions to the cabling system. This saves time and labor during installation and allows for future modifications as needed.
• Competitive Pricing
  Bending offers cable trays at competitive factory prices, ensuring value for money without compromising quality. Our diverse product range allows us to provide the right wiring systems and accessories for a wide range of projects and budgets.

FAQS

1. Are you a manufacturer?

Yes, we have specialized in this field for over 30 years.
