Vacuum Mixer Coin Cell Battery Lab Test Equipment 150W 0-320rpm
Vacuum Mixer Coin Cell Battery Lab Test Equipment 150W 0-320rpm
Vacuum Mixer Coin Cell Battery Lab Test Equipment 150W 0-320rpm
Vacuum Mixer Coin Cell Battery Lab Test Equipment 150W 0-320rpm
Vacuum Mixer Coin Cell Battery Lab Test Equipment 150W 0-320rpm
Vacuum Mixer Coin Cell Battery Lab Test Equipment 150W 0-320rpm
Specifications
Brand Name :
XWELL
Model Number :
XW-VM-S
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10 pcs/month
Delivery Time :
10-15 days
Packaging Details :
Wooden case
Model :
XW-VM-S
Voltage :
AC110V/220V,50/60Hz
Power :
150W
Rotary speed :
0-320rpm
Mixing time :
0-999 min
Vibration plate :
Vibrating at 1000Hz
Size :
330*310*510mm
Weight :
30kg
Price :
100-10000USD，Negotiable
Description

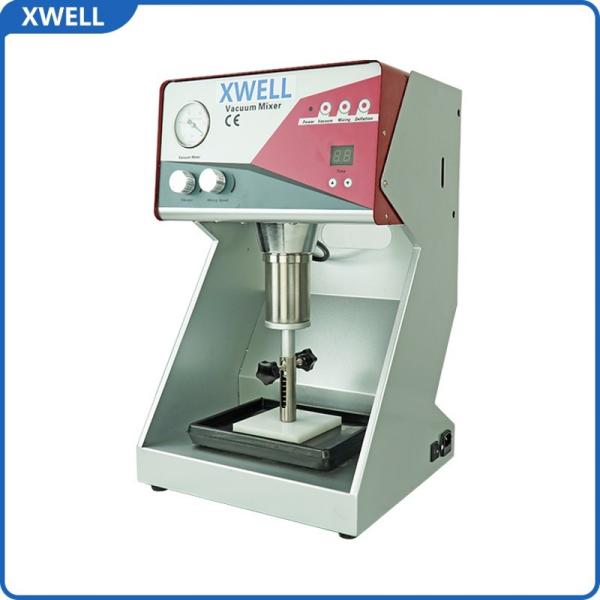

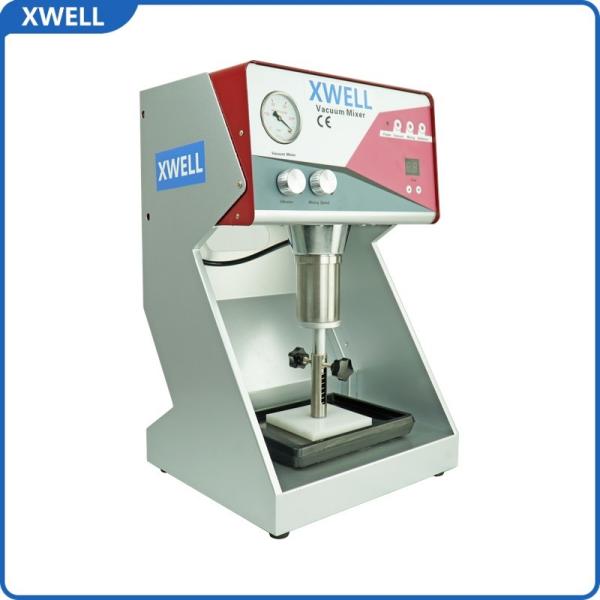

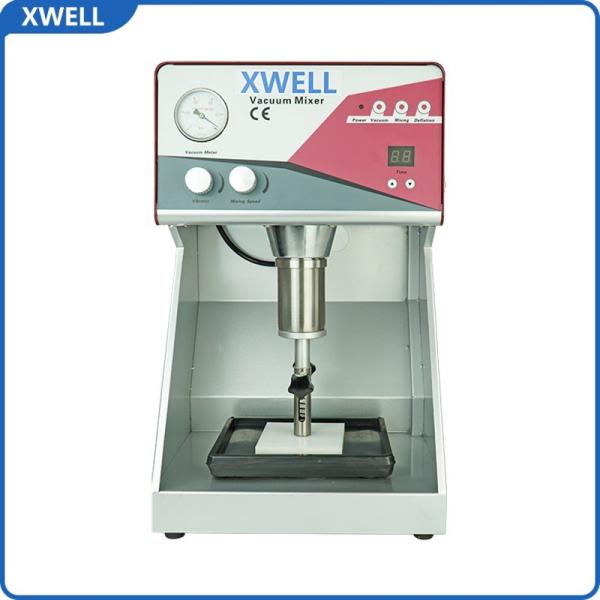

Vacuum Mixer Coin Cell Battery Lab Equipment

XW-ZKJB-S is designed to produce coating slurry by mixing the small batch of chemical and compound (500 ml Max., up to 30000mPa.s) under vacuum to remove gas bubble and protect the sample from oxidation.

It has a built-in pump which can vacuum the mixing container to -0.08Mpa and the step-less mixing speed 320rpm. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab.

Specifications

Item

Parameter

Item

Parameter

Model

XW-VM-S

Voltage

AC110V/220V,50/60Hz

Power

150W

Rotary speed

0-320rpm

Mixing time

0-999 min

Vibration plate

Vibrating at 1000Hz

Size

330*310*510mm

Weight

30kg

Mixing container
1.Container size: 50ml, 150ml, stainless steel material, customized size
2.Mixing blade is built-in to the top of the container
3.Metal filter prevents solid particles from being sucked into the vacuum pump

Vacuum pump and Vacuum level
1.Built-in single stage vacuum pump
2.Vacuum level: -0.08~0.09Mpa

Application note
1.The main duty of this product is to remove the bubbles from the slurry during the wet mixing stage
2.For best slurry, you may consider ordering filter to remove larger particles in slurry
