Specifications
Brand Name :
XWELL
Model Number :
XW-VM-S
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10 pcs/month
Delivery Time :
10-15 days
Packaging Details :
Wooden case
Model :
XW-CM200
Voltage :
AC110V/220V,50/60Hz
Power :
650W
Coating Speed :
0~120mm/s is adjusted
Maximum Stroke Length :
200mm is adjusted, can be customized
Maximum Stroke Width :
200mm, can be customized
Thickness Adjustment Range :
0.01-3.5mm
Temperature Control Range :
RT~200°C
Price :
100-10000USD，Negotiable
Description

Coating Machine Coin Cell Battery Lab Equipment

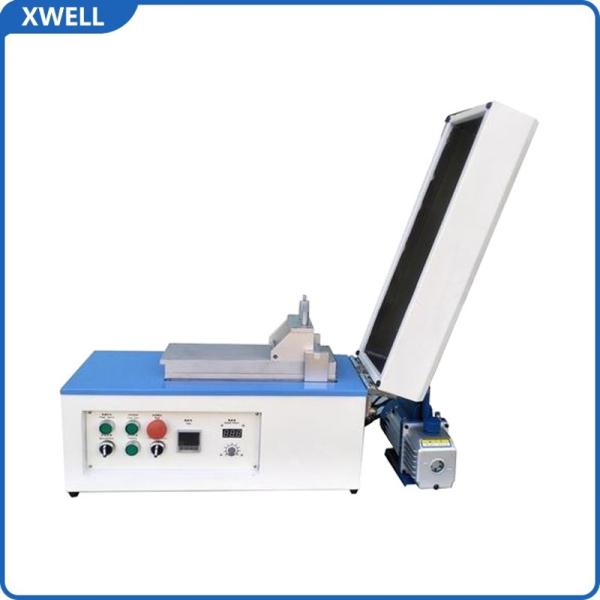

XW-TBJ200 is a compact tape casting coater with a heating cover designed to produce films with consistent thickness. It has a unique driving system to produce smooth coating on all types of materials. The flat vacuum chuck is built in to hold substrate sheet in place, which is particularly useful when making thin coatings. One 100 mm width adjustable micrometer applicator (doctor-blade) and an oil less vacuum pump are included for immediate use. Heating cover with digital temperature controller can dry films after coating up to 200°C with a temperature accuracy of +/-1°C. This equipment can be used for researches on ceramic tape castings and Li-Ion battery electrode coating.

Specifications

Item

Parameter

Item

Parameter

Model

XW-CM200

Voltage

AC110V/220V,50/60Hz

Power

650W

Coating Speed

0~120mm/s is adjusted

Maximum Stroke Length

200mm is adjusted, can be customized

Maximum Stroke Width

200mm, can be customized

Thickness Adjustment Range

0.01-3.5mm

Temperature Control Range

RT~200°C

Temperature Control Accuracy

±1°C

Vacuum Board Material

Aluminum alloy

Vacuum Board Size

L365×W200×H30mm

Size

L500×W310×H330mm

Vacuum Pump

Vacuum pump is included

Weight

50kg

Platform
1.Aluminum alloy flat vacuum chuck
2.Vacuum chuck dimensions: 410mm(L) x 200mm(W) x 30mm(H)

Film Applicator
1.One 200 mm width micrometer adjustable film applicator is included, with
adjustable thickness from 0.01mm~5mm
2.Traverse pusher is included for pushing the doctor blade to ensure constant speed coating

Accessory
1.One oil-less vacuum pump is included for immediate use
2.One 200mm width micrometer adjustable film applicator is included
