32 Channel 5V 120A Prismatic Cell Tester Capacity Grading Machine
32 Channel 5V 120A Prismatic Cell Tester Capacity Grading Machine
Specifications
Brand Name :
XWELL
Model Number :
XW-5V120A32CH
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
$4000-$6000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
100PCS a month
Delivery Time :
7-15days
Packaging Details :
wooden case
Model :
XW-5V120A32CH
Brand :
XWELL
Current range :
120A
voltage :
5V
Description

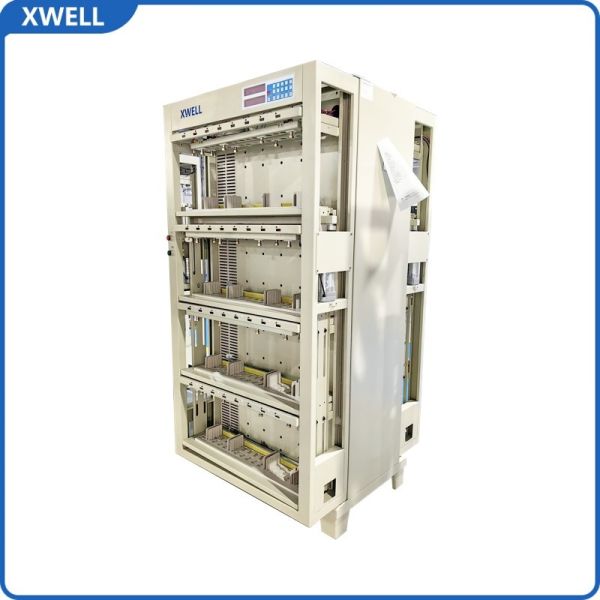

32 Channel 5V 120A Prismatic Cell Tester Capacity Grading Machine

Description

This equipment (TCSHT37-128/30A/25℃) is a thermostatic prismatic aluminum shell battery testing device designed specifically for regions with extreme weather conditions (heavy snow/extreme cold). It provides an optimal testing environment with a constant temperature of 25°C, enabling accurate testing of battery capacity, lifespan, and charge/discharge performance. This significantly enhances battery testing efficiency and accuracy.

Key Features

- Tailored for prismatic power batteries, ensuring compatibility with various sizes and chemistries.

- Designed for extreme weather regions, it can maintain a constant 25°C test temperature.

- Each battery test channel has an independent voltage and current loop design, which is stable and impact-free.

It can realize functions such as start, stop, pause, continue and protection for a single battery channel.

- Advanced energy-saving capacity grading technology for accurate assessment of battery performance.

- Customizable grading parameters to accommodate specific battery chemistries and performance specifications.

- Automated sorting processes streamline operations and maximize throughput.

- High-precision measurement tools provide reliable grading results in real time.

- Comprehensive safety features ensure operator safety and prevent accidents.

- Intuitive user interface simplifies operation and monitoring for enhanced efficiency.

Technical Parameters

Number of equipment channels The whole machine has 32chs
Case color Standard gray / black (customizable)
Clamp type Custom
Working power supply Three phase five wire AC380V土10%, 50Hz
Voltage measurement range DC 0~5V
Current range Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range (-100KPa-0)adjustable
Data processing Can record voltage, current, time, capacity etc,
automatically calculate constant current charging ratio,
capacity loss, discharge efficiency, average voltage, median
voltage, provide data curve and cycle diagram; can output text,
excel,word or mdb format data file
Charging mode Constant current; constant pressure; constant current & pressure
Charging cut-off conditions Voltage, current, time, capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity
protection, power off protection, data breakpoint recovery
