Lithium-Rich Manganese-Based Polycrystalline Cathode Material SF-HV-LRM-1
Lithium-Rich Manganese-Based Polycrystalline Cathode Material SF-HV-LRM-1
Specifications
Brand Name :
XWELL
Model Number :
SF-HV-LRM-1
Place of Origin :
China
MOQ :
5pcs
Price :
50-10000USD/Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100000pcs/month
Delivery Time :
5-8 working days
Packaging Details :
bottle
Specific Surface Area :
3.6226m²/g
Tap Density :
2.1g/cm³
Discharge Capacity (2.0-4.8V) :
>300 (0.1C), 250 (1C)mAh/g
Initial Efficiency :
85%
Voltage Drop per Cycle :
0.6 (after 500 cycles)mV
Capacity Retention :
85 (after 500 cycles)%
Description
Lithium-Rich Manganese-Based Polycrystalline Cathode Material SF-HV-LRM-1 for High Capacity Scientific Research
Product Overview

Lithium-rich manganese-based battery materials, new high-voltage high-capacity battery cathode materials, compatible with silicon-carbon anode, for preparing high-capacity battery cells.

Key Features
Item Sub-item Unit Typical Value
Main Content Li wt% 7.9079
Ni wt% 8.4322
Mn wt% 29.409
Co wt% 8.4643
Impurities Fe ppm 0.0533
Ca ppm 1.9011
Al ppm 0.9158
Zn ppm 1.968
Particle Size Distribution D10 μm 9.058
D50 μm 12.554
D90 μm 17.564
Dmax μm 29.764
Specific Surface Area m²/g 3.6226
Tap Density g/cm³ 2.1
Discharge Capacity (2.0-4.8V) mAh/g >300 (0.1C), 250 (1C)
Initial Efficiency % 85
Voltage Drop per Cycle mV 0.6 (after 500 cycles)
Capacity Retention % 85 (after 500 cycles)
Precautions Shelf life: 1 year under normal temperature & dry conditions
Lithium-Rich Manganese-Based Polycrystalline Cathode Material SF-HV-LRM-1

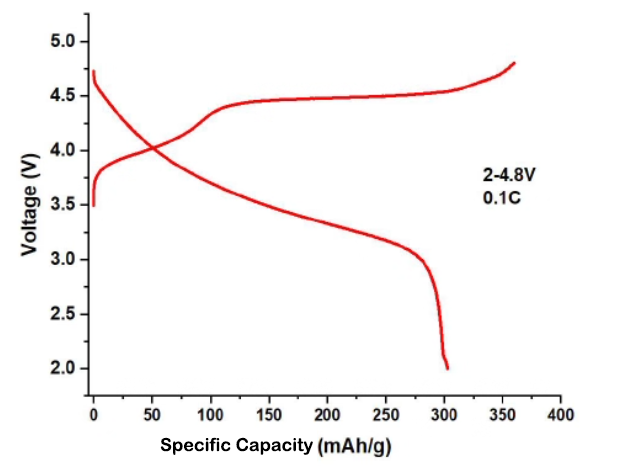

0.1C Charge and Discharge Curve Graph:

Lithium-Rich Manganese-Based Polycrystalline Cathode Material SF-HV-LRM-1

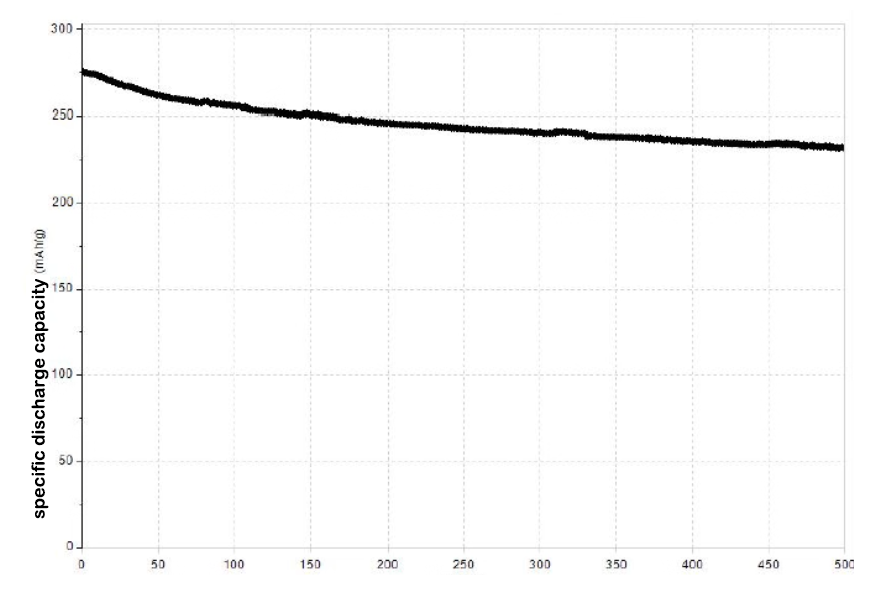

Cycle 500 times curve graph at 1 degree Celsius:

Lithium-Rich Manganese-Based Polycrystalline Cathode Material SF-HV-LRM-1
Why Choose Our Product?
  • Enhanced Battery Life: Reduces delamination risks during cycling
  • Process Compatibility: Suitable for slurry coating, calendering, and stacking
  • Quality Consistency: Strict ±1μm tolerance control for industrial-scale production
