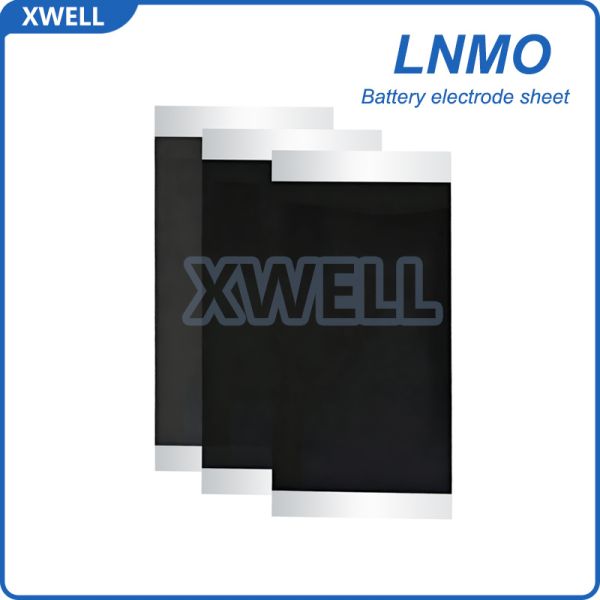

LNMO Cathode Sheet with High Electrochemical Stability and High-rate Performance for Balanced Energy Density in Lithium-ion Batteries
LNMO Cathode Sheet with High Electrochemical Stability and High-rate Performance for Balanced Energy Density in Lithium-ion Batteries
Specifications
Brand Name :
XWELL
Model Number :
LNMO
Certification :
CE
Place of Origin :
China
MOQ :
5pcs
Price :
50-10000USD/Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100000m/month
Delivery Time :
5-8 working days
Packaging Details :
Carton
Current Collector Areal Density (mg/cm²) :
4.14
Current Collector Thickness (μm) :
1+15+1
Electrode Size :
7.5x10cm or customs
Active Material Gram Capacity (mAh/g) :
125 (Reference)
Active Material Proportion :
80%
Active Material Areal Density (mg/cm²) :
2, 3, 5
Description
LNMO Lithium Nickel Manganese Oxide Cathode Sheet, Single/Double-sided Coating, Mass Production Battery Grade, Customizable
1. Product Overview

Our LNMO lithium nickel manganese oxide cathode sheet is a premium battery-grade component for lithium-ion batteries, available in single-sided and double-sided coating options to diverse assembly scenarios.
Boasting mature mass production capabilities, it delivers outstanding electrochemical stability and high-rate performance, making it a reliable choice for batteries requiring balanced energy density and cycle life.
We provide flexible customization services, adjusting coating thickness, sheet size, and areal weight according to your specific battery design needs, ensuring seamless integration with your production line.

2. Key Features
LNMO Cathode Sheet with High Electrochemical Stability and High-rate Performance for Balanced Energy Density in Lithium-ion Batteries
3. Technical Specifications
Electrode Name LNMO Positive electrode
Current Collector Areal Density (mg/cm²) 4.14
Current Collector Thickness (μm) 1+15+1
Current Collector Type Carbon-coated Aluminum Foil (Please note if aluminum foil is needed)
Electrode Size 7.5×10cm 7×7cm
Active Material Areal Density (mg/cm²) 2, 3, 5 Other Areal Densities
Active Material Gravimetric Capacity (mAh/g) 125 (Reference)
Active Material Proportion 80% 90%
Calculation Method for Actual Active Material Loading (Weight of Small Disc - Weight of Current Collector) × Active Material Proportion
4. Applications
  • Dual Coating Design: Available in single-sided and double-sided coating options, flexibly adapting to different structural requirements of lithium-ion batteries.
  • Battery-Grade & Mass-Producible: Meets strict battery-grade quality standards for stable performance, and supports large-scale mass production to satisfy bulk manufacturing demands.
  • High Customization: Offers tailored adjustments for core parameters (coating thickness, sheet size, areal weight) to match specific lithium-ion battery design and production line needs.

5. Electrochemical Performance & Storage

Batteries with NCM811 as the cathode have a high energy density (over 280Wh/kg), suitable for high-energy-demand applications like electric vehicles. It may react with CO₂ and H₂O during charging, so it needs to be stored in a dry and low-humidity environment to avoid performance degradation.

6. Why Choose US?
  • Enhanced Battery Life: Reduces delamination risks during cycling.
  • Process Compatibility: Suitable for slurry coating, calendering, and stacking.
  • Quality Consistency: Strict ±1μm tolerance control for industrial-scale production.
