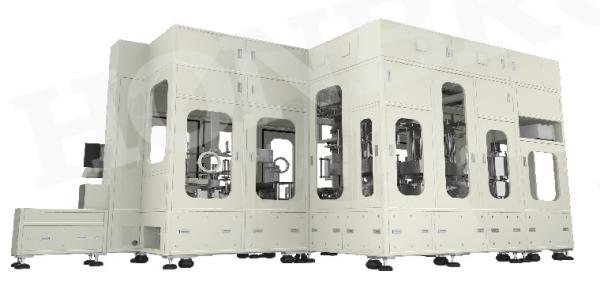

Pouch Cell Lithium Battery Production Line Electrolyte Injection Machine
Pouch Cell Lithium Battery Production Line Electrolyte Injection Machine
Specifications
Brand Name :
Honbro
Model Number :
400 Type
Certification :
CE certification
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
350 sets/year
Delivery Time :
lab machine: 7-8 weeks, Mass production machine: 13-14 weeks
Packaging Details :
Fumigation-free wooden box and vacuum moisture-proof treatment
Name :
Electrolyte Injection Machine
Qualified rate :
≥99.6%
Action :
≥95%
Filling pump accuracy :
±0.2%
Filling way :
Vacuum injection
Weigh accuracy :
0.02g
Filling accuracy :
±0.5%
Power supply :
AC380V/50Hz
Description

Electrolyte Injection Machine For Pouch Cell , 400 Type

Function Description

  • This machine is suitable for mass production process of automatic liquid injection package for flexible packaging lithium ion battery (compatible with blue tooth battery).Main functions of this machine: automatic feeding of ammunition clip, automatic scanning and input of battery bar code, manual input of batch number of incoming electrolyte, weighing before liquid injection, vacuum liquid injection, vacuum static setting, vacuum packaging, packaging after liquid injection, NG sorting, discharging of battery magazine and other functions

Technical Feature

  • The equipment cavity is equipped with automatic detach mechanism, which facilitates the maintenance and adjustment of the internal mechanism of the cavity
  • The cavity sealing station can be rotated 90 degrees, and the sealing block is facing the operating position to facilitate the cleaning and maintenance of the sealing block
  • Injection method: ceramic piston injection is adopted to improve injection accuracy and stability and injection speed
  • It can work continuously for 30 days without cleaning the piston sleeve
  • Stable performance: the package structure can keep the stability of sealing for 3 months
  • Model changing time: ≤4 hours, 2 personnel ( remove the time for changing electrolyte, the type changing personnel should be proficient in equipment operation )
  • Low replacement cost, fixture using screw adjustment, fixture without replacement parts, equipment manipulator all use servo feeding, replacement and modification of parameters, other parts less replacement
  • There is an infusion box under the injection nozzle to prevent dripping

Technical Parameters

Item 400 Type
Outlook size L9000mm×W 1500mm×H 2600mm
Machine weight ≈5.5T
Power rate 17kW
Power supply AC380V/50Hz
Air source ≥0.6MPa 40L/s
Vacuum source ≤-95kPa 100L/s
Scope of applicable
products		 L (200~300mm)×W(200~300mm)
×T(5~15mm)
Equipment output ≥6PPM(3 times soaking time 90S)
Qualified rate ≥99.6%
Action ≥95%
Filling amount 200~400g adjustable
Filling pump accuracy ±0.2%
