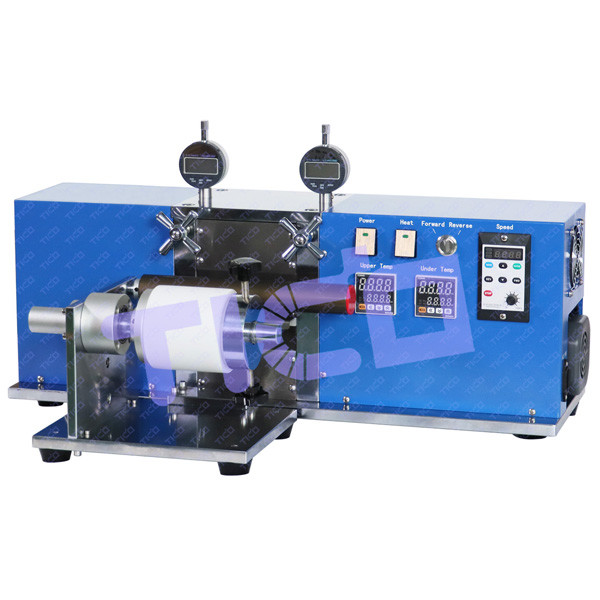

H100mm Width Hot Rolling Press Machine With Unwinder Device

Brief Introduction

This product is used for heated rolling press of battery materials in the laboratory, like gold and silver precious metal materials, copper and aluminum non-ferrous materials. Heating tubes are placed inside the rollers to ensure temperature uniformity, which is crucial for consistent material properties and performance. The winding and unwinding mechanism enables continuous production, significantly improving the efficiency of electrodes roll press. The rolling thickness and speed can be easily adjusted to accommodate various requirements, enhancing the machine’s versatility and suitability for different materials and applications.

Key Features

● Equipped with winding and unwinding mechanism for continuous roll pressing of roll substrates.
● Heated roll press, upper and lower thermostats separately control the temperature and digital display.
● The rollers have built-in heating tubes for accurate temperature control and uniform heating.
● Heating or non-heating can be selected according to user’s actual requirements.
● The upper and lower rollers are equipped with protective covers to avoid burns during operation.
● The surface of the rollers is hard chrome plated, the hardness can reach HRC62 and rust-proof.
● Adopting slanted block to adjust the gap of pressing electrode, with good self-locking and high adjustment precision, digital display accurate and intuitive.
● Vertical design allows for convenient feeding and pressing the strip materials.
● Digital display of pressing thickness and speed ensures accurate adjustment.
● Electric roll press makes uniform pressing force, and roller can be rotated in forward and reverse.
● Small size, easy to operate, use flexibly and quickly.

Technical Parameters

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?
A: Yes, most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
