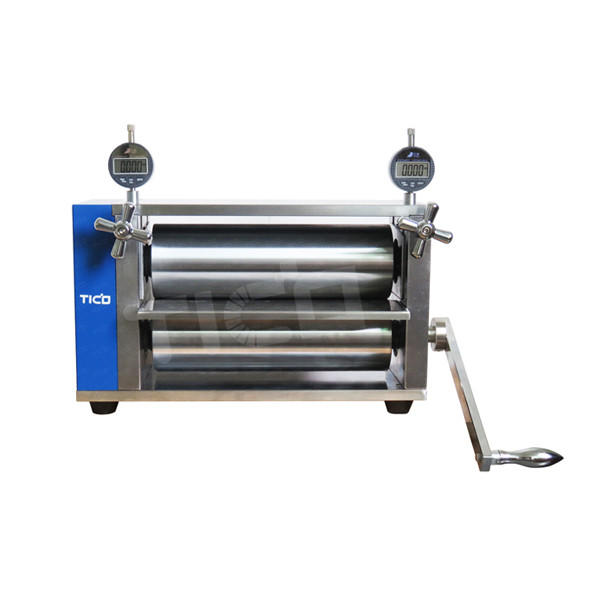

300mm Width Manual Calendering Machine
300mm Width Manual Calendering Machine
Specifications
Brand Name :
TICO
Model Number :
STC-DSL-300
Place of Origin :
Shen Zhen
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
15~20 working days
Packaging Details :
Standard export wooden packing
Operation :
Manual
Rolling width :
300mm
Roller hardness :
>HRC62
Feature :
Pressing thickness and speed are adjustable
Weight :
95kg
Color :
Blue
Description

300mm Width Manual Calendering Machine

Product Introduction

This product is used for manual rolling press of battery materials in the laboratory, like gold and silver precious metal materials, copper and aluminum non-ferrous materials. It is especially suitable for reducing battery electrode thickness and increase density, which are essential steps for enhancing the performance and energy density of batteries. The roll press thickness can be easily adjusted to meet user requirements.

Key Features

● Equipped with a removable base, users can assemble or disassemble according to actual requirements.

● The surface of the rollers is hard chrome plated, the hardness can reach HRC62 and rust-proof.

● Adopting slanted block to adjust the gap of pressing electrode, with good self-locking and high adjustment precision, digital display accurate and intuitive.

● High precision of roll press, roller cylindricity ≤±2µm.

● Vertical design allows for convenient feeding and pressing the strip materials.

● Digital display of pressing thickness ensures accurate adjustment.

● Small size, easy to operate, use flexibly and quickly.

Technical Parameter

Model STC-DSL-300
Operation mode Manual
Feeding speed 0 ~ 40mm/s, depend on hand rocker speed
Roller width 0～300mm
Roller diameter φ96mm
Pressing thickness 0 ~ 3mm adjustable
Roller cylindricity ≤ ±2µm
Roller hardness HRC62
Roller smoothness > 0.4
Gear Grinding grade
Roller placement Vertical
Dimension L560 * W200 * H350mm
Weight 95kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
