90L Compact Vacuum Drying Oven for Lab Using
90L Compact Vacuum Drying Oven for Lab Using
90L Compact Vacuum Drying Oven for Lab Using
90L Compact Vacuum Drying Oven for Lab Using
Specifications
Brand Name :
TICO
Model Number :
STC-KZK-902
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
10~15 working days
Packaging Details :
Standard export wooden packing
Product Name :
Compacat Vacuum Drying Oven
Volume :
90L
Vacuum Degree :
133Pa
Input Voltage :
870W
Heating Temperature :
RT+ 10 °C~ 200°C settable. 250°C can be customized
Vacuum Pump :
External connected
Description

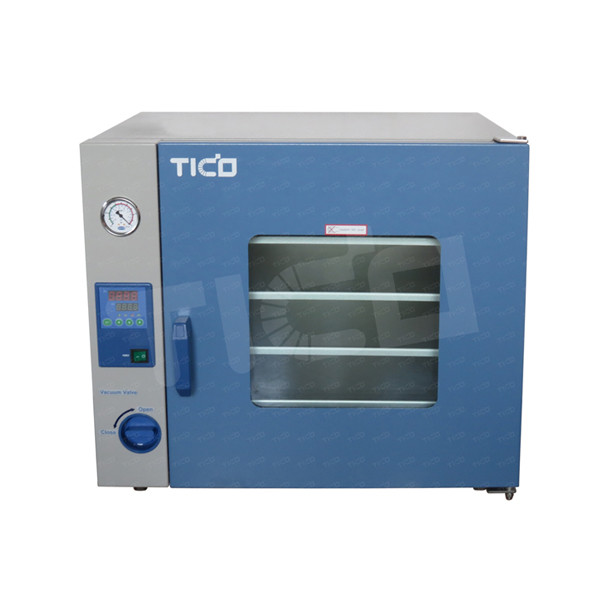

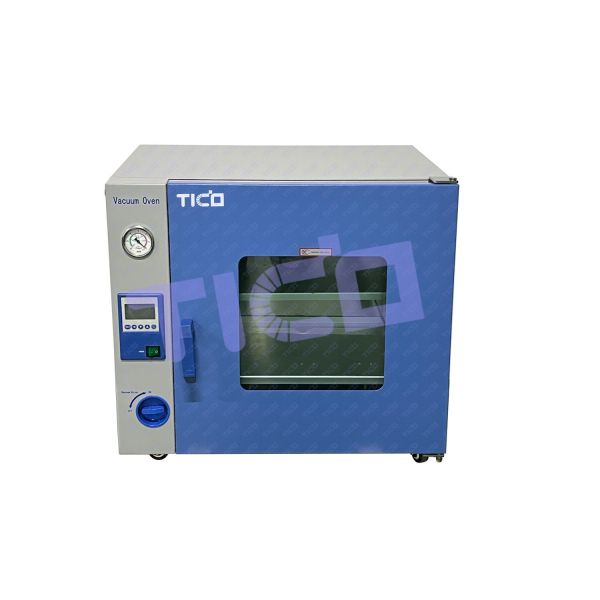

90L Compact Vacuum Drying Oven for Lab Using

Brief Introduction

It is a compact vacuum drying oven widely used in laboratory. It is applicable for the drying, sterilization and heat treatment for the material under vacuum conditions. Heating time is adjustable, which can maximally reach to 200℃. It is a 90L oven with 2-layer brackets.

Key Features

● The inert gas valve is available as an option. Please inform us of your requirement if needed.

● The working chamber is rectangular to achieve the maximum of effective volume.

● Douuble toughened explosion-proof glass esures security, and allows observing the inside material easily.

● 133Pa high vacuum degree.

● Heating temperature is settable.

Technical Parameters

Model STC-KZK-902
Working voltage AC220V±10%, 50Hz
Heating power 870W
Heating temperature

RT+10℃~200℃ as standard.

RT +10℃~250℃ can be customized
Constant temperature fluctuation ±1℃
Temperature resolution 0.1℃
Vacuum degree 133Pa
Vacuum pump External connecting
Volume 90L (other volume available)
Tray 2pcs, non-removable
Chamber material 304 Stainless steel
Chamber inner size L450 * W450 * H450mm
Dimension L740 * W610 * H591mm
Weight 138kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
