Battery Electrode Roll Press Machine With 150mm Width Roller
Battery Electrode Roll Press Machine With 150mm Width Roller
Specifications
Brand Name :
TICO
Model Number :
STC-DDG-150
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 sets per month
Delivery Time :
10~15 days
Packaging Details :
Wood Packing
Product Name :
Battery Electrode Rolling Press Machine
Application :
Battery Research Electrode Pressing
Feature :
Digital Display, Pressing Speed Adjustable
Size :
L570 * W220 * W350mm
Weight :
60kg
Color :
Blue
Description

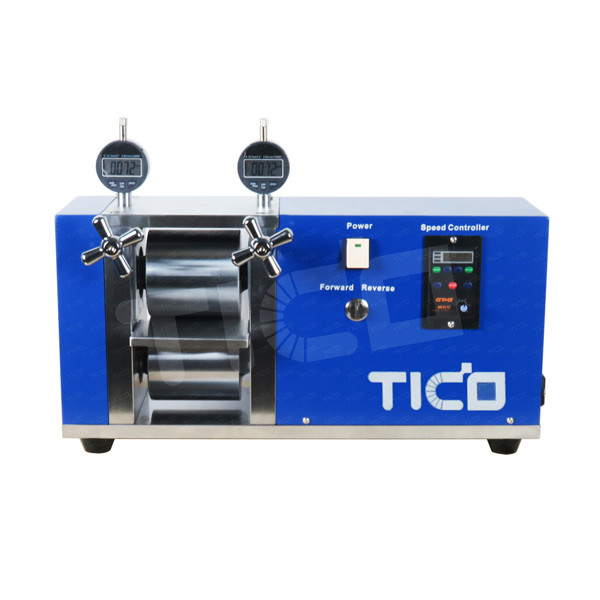

Battery Electrode Roll Press Machine With 150mm Width Roller

Brief Introduction

This product is used for electric rolling press of battery materials in the laboratory, like gold and silver precious metal materials, copper and aluminum non-ferrous materials. It is especially suitable for reducing battery electrode thickness and increase density. It utilizes a gear-driven system to accomplish the roller pressing process. The roll press thickness and speed can be easily adjusted to suit various requirements.

Key Features

● Pressing thickness is adjustable and digital display.

● Rolling pressing speed is digital display.

● Vertical rollers installation design for convenient feeding and pressing for strip material.

● Forward & backward are available.

● Electric pressing makes uniform pressing force.

Technical Parameter

Model STC-DDG-150
Voltage AC220V±10%, 50Hz
Power 0.2KW
Operation mode Electric
Feeding speed 0 ~ 40mm/s
Roller width 0～150mm
Roller diameter φ96mm
Pressing thickness 0 ~ 3mm adjustable
Roller cylindricity ≤ ±2µm
Roller hardness HRC62
Roller smoothness > 0.4
Gear Grinding grade
Roller placement Vertical
Dimension L570 * W220 * H350mm
Weight 60kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
