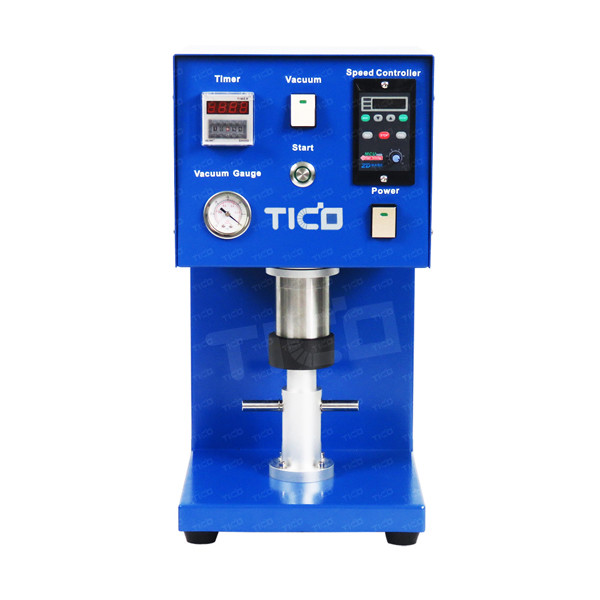

150ml Lab Benchtop Vacuum Slurry Mixing Machine with Single Mixing Paddle
150ml Lab Benchtop Vacuum Slurry Mixing Machine with Single Mixing Paddle
Specifications
Brand Name :
TICO
Model Number :
STC-EBJ-150
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
80 sets per month
Packaging Details :
Wood Packing
Product Name :
Battery Slurry Vacuum Mixer
Mixing container :
150ml as standard, other size is optional
Mixing container material :
Stainless steel
Mixing paddle :
Single Mixing Paddle
Pump position :
Built-in type
Mixing speed :
0-1400rpm
Description

150ml Lab Benchtop Vacuum Slurry Mixing Machine with Single Mixing Paddle

Brief Introduction

This product is a bench-top vacuum mixer that suitable for the mixing process of battery cathode and anode slurries, powdered materials and ceramics. By conducting the mixing process under vacuum conditions, it effectively eliminates gas bubbles, ensuring optimal mixing and enhanced material properties. It has a 150ml mixing container, other volume of mixing container is optional.

​

Key Features

● Adopting advanced soft sealing process to ensure good sealing effect.

● Different volume of mixing container can be optional, and easy to replace.

● The mixing speed is adjusted by speed controller, and different speeds can be selected according to different processes and viscosities.

● Geometric design to ensure simple and exquisite appearance.

● Small dimensions save space.

Technical Parameter

Model STC-EBJ-150
Voltage AC220V±10%, 50Hz
Power 150W
Mixing container

Single mixing paddle: 150ml SS304 mixing container

50, 100, 150, 250ml mixing container can be customized
Mixing rotation speed 0~1400 rpm adjustable
Mixing time 0~9999 min settable
Speed regulation method Continuously variable
Vacuum degree ≤ -80KPa
Dimension L245 * W260 * H490mm
Weight 15kg

Warranty

1 year warranty with lifetime support.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
