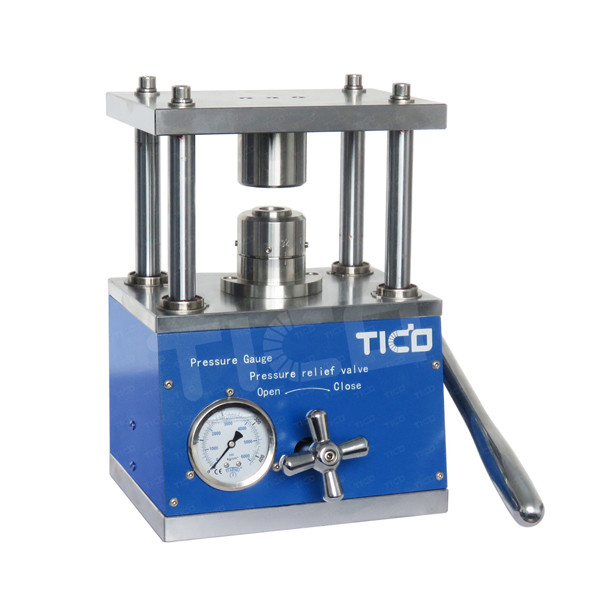

Research-Grade Coin Cell Crimping Machine for CR20XX Battery Assembly
Research-Grade Coin Cell Crimping Machine for CR20XX Battery Assembly
Specifications
Brand Name :
TICO
Model Number :
STC-ASF-20
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
80 sets per month
Delivery Time :
7~12 days
Packaging Details :
Wood Packing
Product Name :
Coin Cell Maual Crimping Machine
Standard Crimping Die :
CR20XX crimping die
Operation :
Manual
Force :
< 6kg
Dimension :
L232xW190xH330mm
Weight :
25kg
Description

Desktop Coin Cell Manual Crimping Machine for CR20XX Coin Cell Cases

Product Introduction

The STC-ASF-20 Hydraulic Coin Cell Crimping Machine is a compact laboratory device designed for the assembly and sealing of CR20XX series coin cells. Featuring a hydraulic crimping mechanism, it provides stable and uniform sealing pressure to ensure reliable cell assembly and consistent experimental results. CR20XX series crimping die is included as standard, the other crimping die set is optional. Coin cell disassembly die can be optional. Its compact design allows convenient operation both inside and outside glove boxes, making it an ideal solution for universities, research institutes, and industrial R&D laboratories seeking accurate, repeatable, and efficient coin cell assembly. Additionally, please click the link below to view the detailed equipment operation demonstration video:https://youtu.be/CsFFTB3slG8

Key Features

• Standard CR20XX tungsten steel crimping die with high concentricity and wear resistance, ensuring uniform crimping without shell deformation.

• It's desinged with crimping height limitation to avoid damage.

• Built‑in pressure gauge allows accurate pressure adjustment and real‑time monitoring, ensuring crimping consistency for repeatable experimental data.

• Different die set can be optional, such as CR20XX /CR24XX crimping die, disassembly die, etc.

• The compact design allows convenient operation inside inert gas glove boxes, supporting moisture- and oxygen-sensitive battery materials.

Technical Parameter

Model STC-ASF-20
Crimping die CR20XX crimping die is standard, other size die is optional
Operation force of hand rocker Less than 6kg
Die material Tungsten steel
Structure material High strength chrome steel and alloy aluminum, and the treatment of electroplating and spraying, to ensure that the surface has strong anti-corrosion properties.
Pressure gauge Under normal conditions, the pressure gauge value is around 80~100kg/cm2. This machine has been set in this value range before delivery, such as in special circumstances require greater pressure (maximum pressure of 200kg/cm2, about 8 tonnes of pressure) need to consult with the manufacturer and then adjust.
Dimension L232mm * W190mm * H330mm
Weight 25kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
