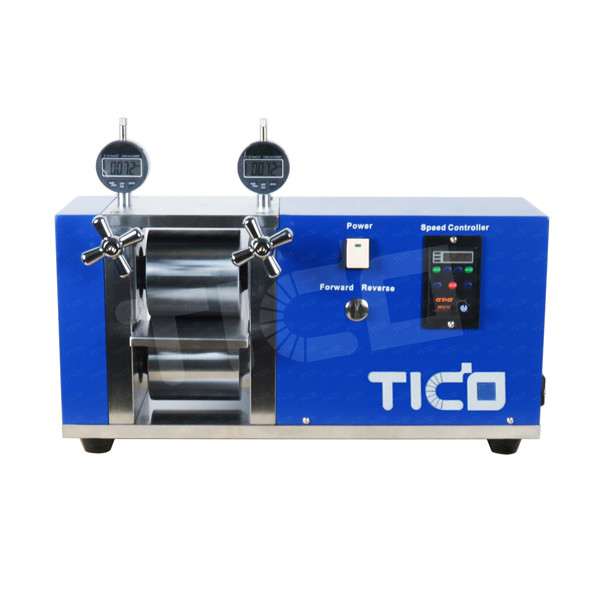

Electronic Calendering Roll Press Machine with 100mm Width Roller
Electronic Calendering Roll Press Machine with 100mm Width Roller
Specifications
Brand Name :
TICO
Model Number :
STC-DDG-100
Place of Origin :
Shenzhen, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
10-15 days
Packaging Details :
Standard export wooden packing
Product Name :
Electric Rolling Press Calendar
Voltage :
AC220V±10%, 50Hz
Feature :
Digital Display
Roller Size :
φ96xW100mm. 150mm /200mm /250mm optional
Pressing Thickness :
0~3mm adjustable
Pressing Speed :
0~40mm/s adjustable
Description

Electronic Calendering Roll Press Machine with 100mm Width Roller

Brief Introduction

This product is used for electric rolling press of battery materials in the laboratory, like gold and silver precious metal materials, copper and aluminum non-ferrous materials. It is especially suitable for reducing battery electrode thickness and increase density. It utilizes a gear-driven system to accomplish the roller pressing process. The roll press thickness and speed can be easily adjusted to suit various requirements.

Features

● Pressing thickness is adjustable and digital display.

● Rolling pressing speed is digital display.

● Vertical rollers installation design for convenient feeding and pressing for strip material.

● Forward & backward are available.

● Electric pressing makes uniform pressing force.

Technical Parameter

Model STC-DDG-100
Voltage AC220V±10%, 50Hz
Power 0.2KW
Operation mode Electric
Feeding speed 0 ~ 40mm/s
Roller width 0～100mm
Roller diameter φ96mm
Roller hardness >HRC62
Pressing thickness 0~3mm adjustable
Roller cylindricity ≤ ±2µm
Roller smoothness > 0.4
Gear Grinding grade
Roller placement Vertical
Dimension L520 * W220 * H350mm
Weight 50kg

Warranty

1 year warranty with lifetime support.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
