Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
Specifications
Brand Name :
ACEY
Model Number :
ACEY-PVM-250ML
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 1950 /Set
Power supply voltage :
AC220V
Rated power :
200W
Stirring speed :
MAX600 rpm
vacuum degree :
-0.08Mpa
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring



Product Description

ACEY-PVM-250ML Vacuum mixing and dispersion are integrated high-efficiency equipment, suitable for the positive and negative slurry mixing process, as well as the mixing of powdery materials and various ceramics in the battery experiment process; because the stirring is completed in a vacuum state, it is completely bubble-free, so it improves The filling of the material and the compactness of the model.


Product Features

1.Vacuum environment, effectively eliminate the bubbles generated during the mixing process, this machine comes with a vacuum system;
2.The equipment is preferentially equipped with dual-shaft planetary stirring paddles and optional single-shaft blade stirring paddles. Different types and combinations of stirring shafts are configured according to the size of the stirring tank, so that the material is tossed up and down and the slurry is mixed quickly and evenly
3.The design of forward and reverse stirring function can realize high-speed stirring of higher viscosity slurry, and the stirring uniformity is good. The stirring motor adopts stepping motor PLC frequency speed control. Different speed and torque can be selected according to different processes and different viscosities. Multi-stage speed operation, the stirring speed and time of each stage can be set;
4.Multi-stage speed operation can be carried out, and the stirring speed and time of each stage can be set;
5.Bracket design, easy to operate, to ensure safety during the vacuum mixing process;
6.Exquisite appearance, using three-dimensional geometric design, simple and beautiful;

Technical Parameter

Power Supply Voltage AC220V
Rated Power 200W
Stirring Speed MAX 600 rpm
Speed Regulation Function Three-stage speed, configurable
Vacuum System Built-in vacuum pump, vacuum degree -0.08Mpa, pressure maintained for 2H without obvious drop
Stirrer Configuration Standard twin-shaft screw agitator; other types designed according to the tank body
Stirring Tank Volume 150ml～500ml vacuum stirring tank
Mixing Time 0～600min, configurable
Overall Dimensions 335mm × 325mm × 575mm (L×W×H)
Overall Weight 35kg

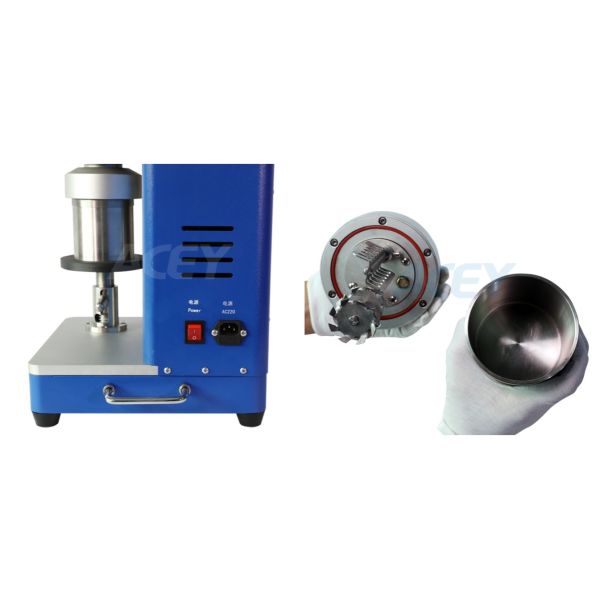

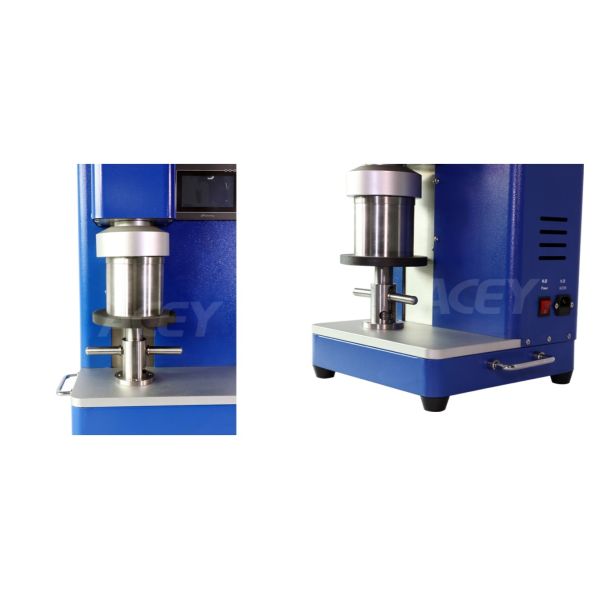

Product Display

Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring

Battery Experiment Planetary Vacuum Mixer Dual-Shaft Planetary Stirring
