Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
Specifications
Model Number :
ACEY-WM-P
Price :
USD 1380~1438/Set
Power supply :
220V/50Hz
Power :
25W～40W
Speed :
0～170 rpm adjustable
Weight :
About 25KG
Brand Name :
ACEY
MOQ :
1 Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Place of Origin :
China
Warranty :
1 Year Warranty With Lifetime Support
Certification :
CE
Packaging Details :
Plywood Case
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets

Description

ACEY-WM-P is suitable for winding of super capacitors, soft-packaged lithium battery pole pieces, and winding the positive and negative electrodes and separators into batteries.

Features

*The up and down, left and right, front and rear positions of the guide pole piece groove and ruler can be adjusted;
* Winding idler, to ensure the winding tightness of the battery when winding;
* Increase the winding tail bracket to improve the winding accuracy of the battery;
* Winding can be forward and reverse, winding stepless speed regulation;
*The machine is small in size, exquisite and beautiful in appearance, and easy to operate

Specification

Power supply 220V/50Hz;
Power 25W～40W
Speed 0～170 rpm adjustable
Applicable flat battery cell size mm length (20～100) X width (20～80) X thickness (MAX30) according to customer selection.
Applicable cylindrical batteries within Φ35*L90mm (replacement of winding flat batteries and cylindrical batteries requires replacement of winding needles)
winding needle Φ3mm
Equipment size L550mm*310mm*280mm;
Equipment weight 25Kg
Structural material high-strength chrome steel, the surface will never rust after environmental protection plating and spraying treatment.

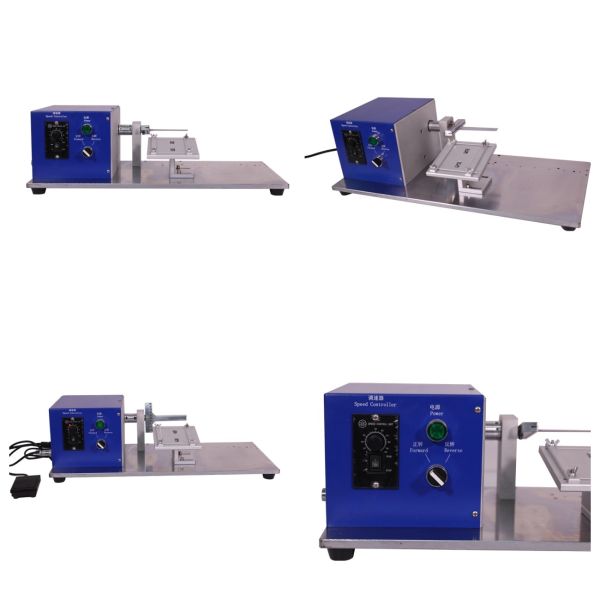

Product Display

Laboratory Polymer Battery Electrode Winder Winding Machine For Positive And Negative Sheets
