21700 26650 32700 Lithium Battery Testing Machine Cell Capacity Tester
21700 26650 32700 Lithium Battery Testing Machine Cell Capacity Tester
21700 26650 32700 Lithium Battery Testing Machine Cell Capacity Tester
21700 26650 32700 Lithium Battery Testing Machine Cell Capacity Tester
21700 26650 32700 Lithium Battery Testing Machine Cell Capacity Tester
21700 26650 32700 Lithium Battery Testing Machine Cell Capacity Tester
Specifications
Brand Name :
ACEY
Model Number :
ACEY-BCT506-512H
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 3980~7900/Set
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Delivery Time :
7~35 Days
Packaging Details :
Plywood Case
Warranty :
1 Year Warranty with Lifetime Support
After-sales Service :
24/7 Technical Support
Number of Channels :
512 Channels
Voltage Measurement Range :
0~5V
Voltage Accuracy :
±(1‰ reading+1‰ full scale), resolution 1mV
Current Range :
Charging & Discharging DC 60mA～6A
Current Accuracy :
±(1‰ reading+1‰ full scale), resolution 1mA
Compatible Battery :
18650/21700/26650/32650/32700 Cylindrical Cells
Description

5V 6A 512 Channels 18650 21700 26650 32700 Lithium Ion Cell Grading Machine

Product Description

ACEY-BCT506-512H lithium-ion cell capacity grading machine is widely used in lithium battery manufacturers, battery pack assembly plants, and research laboratories for key processes such as cell formation, capacity testing, and performance parameter testing. The equipment is easy to operate, runs stably, and can operate continuously for extended periods, making it an important piece of equipment for cell quality control.

System Features

  • Independent Single-Point Control: Each battery has its own independent constant current and constant voltage source, ensuring stable operation without impact.
  • High Precision: Device accuracy up to 0.1% with excellent stability.
  • Powerful Software: Advanced functions with a user-friendly human-machine interface (HMI).
  • Four-Wire Testing: Ensures highly accurate measurements.
  • Modular Design: Simplifies maintenance and component replacement.

Main Technical Parameter

Structure Of Equipment (Device)
Number of device channels 512 Channels
Size (width * depth * height) cm 160*55*184
Clamp form Cylindrical four-wire fixture
Color of device Dark grey
Clamp center distance 40mm/35mm
Support battery height Adjustable within 10-100mm range
Working power Three-phase five-wire system ac380v±10%, 50hz
Working power dissipation ≤27kw
Work environment Temperature 0-40 ℃, relative humidity ≤80%
Heat-dissipating method Natural wind intake and upward exhaust
Channel Parameter
Voltage testing range 0-5V, 1MV resolution
Battery voltage range Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range 2.5V-4.5V
Voltage accuracy ±(1‰ reading +1‰ full)
Current range 60mA-6A, Reslution: 1mA
Current accuracy ±(1‰ reading +1‰ full)
Control mode Computer connection equipment work, Whole
Machine Control
Software Function
Communication mode Rs485, baud rate 57,600
Process set Maximum 32 work steps and 256 cycles
Charging mode Constant current, constant voltage
Charging cutoff condition Voltage, current, time, capacity
Discharge Constant current
Discharge cut-off condition Voltage, time, capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range 0 - 30,000 minutes
Time accuracy ≤±1‰
Sampling inspection period ≤8s
Minimum data recording frequency ≤8s
Battery grading By capacity, time, discharge platform, etc
Data processing Data, graphs, and loop diagrams

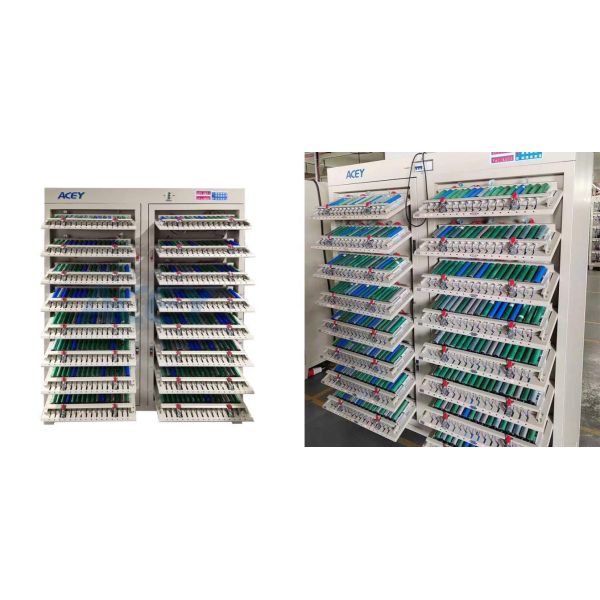

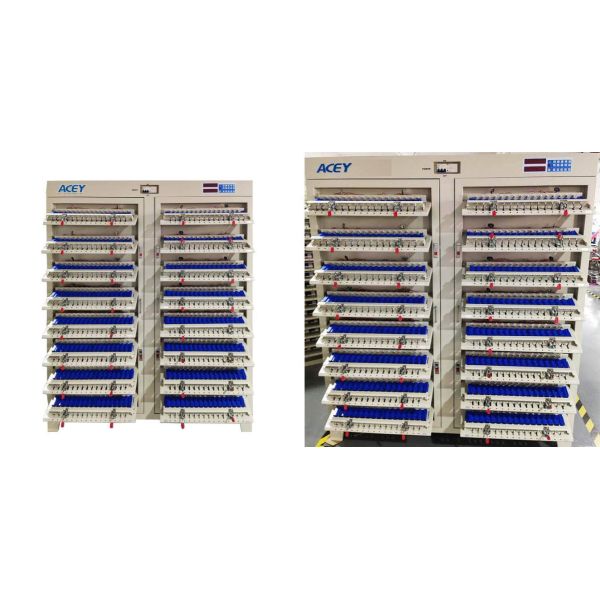

Product Display

21700 26650 32700 Lithium Battery Testing Machine Cell Capacity Tester21700 26650 32700 Lithium Battery Testing Machine Cell Capacity Tester
