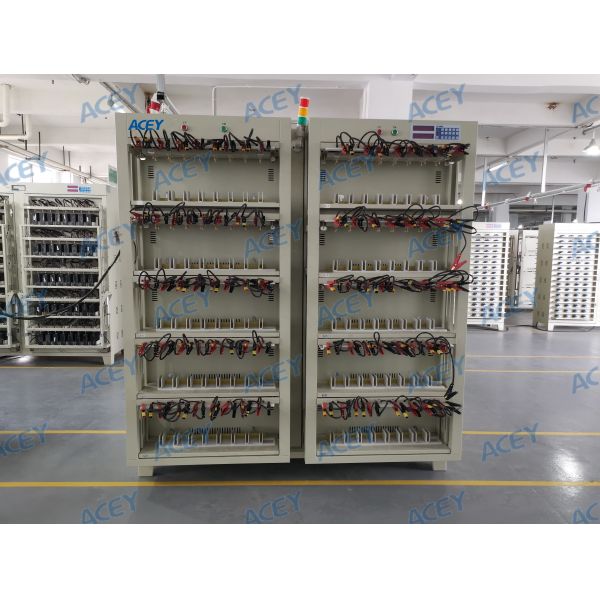

160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
Specifications
Brand Name :
ACEY
Model Number :
ACEY-BCT530-160P
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 17700~18200/Set
Number of channels :
160 Channels
Clamp type :
Flat head clamp (optional with crocodile clamp)
Clamp spring :
80mm
Working power :
Three-phase five-wire system ac380v±10%, 50hz
Voltage measurement range :
DC 0~5V
Current range :
Charge DC50mA～30A; Discharge DC 50mA～30A
Packaging Details :
Plywood Case
Payment Terms :
T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability :
200 Sets/Month
Warranty :
1 Year Warranty With Lifetime Support
After-sales Service :
24/7 Technical Support
Delivery Time :
7~35 Days
Description

5V 30A 160 Channels Prismatic Battery Lithium Cell Charging and Discharging Tester Optional Alligator Clips

Product Description

ACEY-BCT530-160P is used to test the voltage and capacity parameters of the battery during the cell formation/charging capacity verification stage. Based on the test results, it performs classification of the batteries into the same grades, conducts data analysis, and uploads and shares the results.

Product Features

1.Single-point independent, an independent constant current and constant voltage source, stable without shock. It can achieve functions such as starting, stopping, pausing, resuming and protection.
2.Equipment accuracy 0.05%, data recording time 1 second per time, high stability.
3.Powerful software function, friendly human-machine interface.
4.Four-wire test interface, ensuring high measurement accuracy.

5.Modular design concept, easy to maintain.

Main Technical Parameter

Number of equipment channels The whole machine has 160chs
External dimension Length 1861* width 931* height 2020
Case color Standard gray / black (customizable)

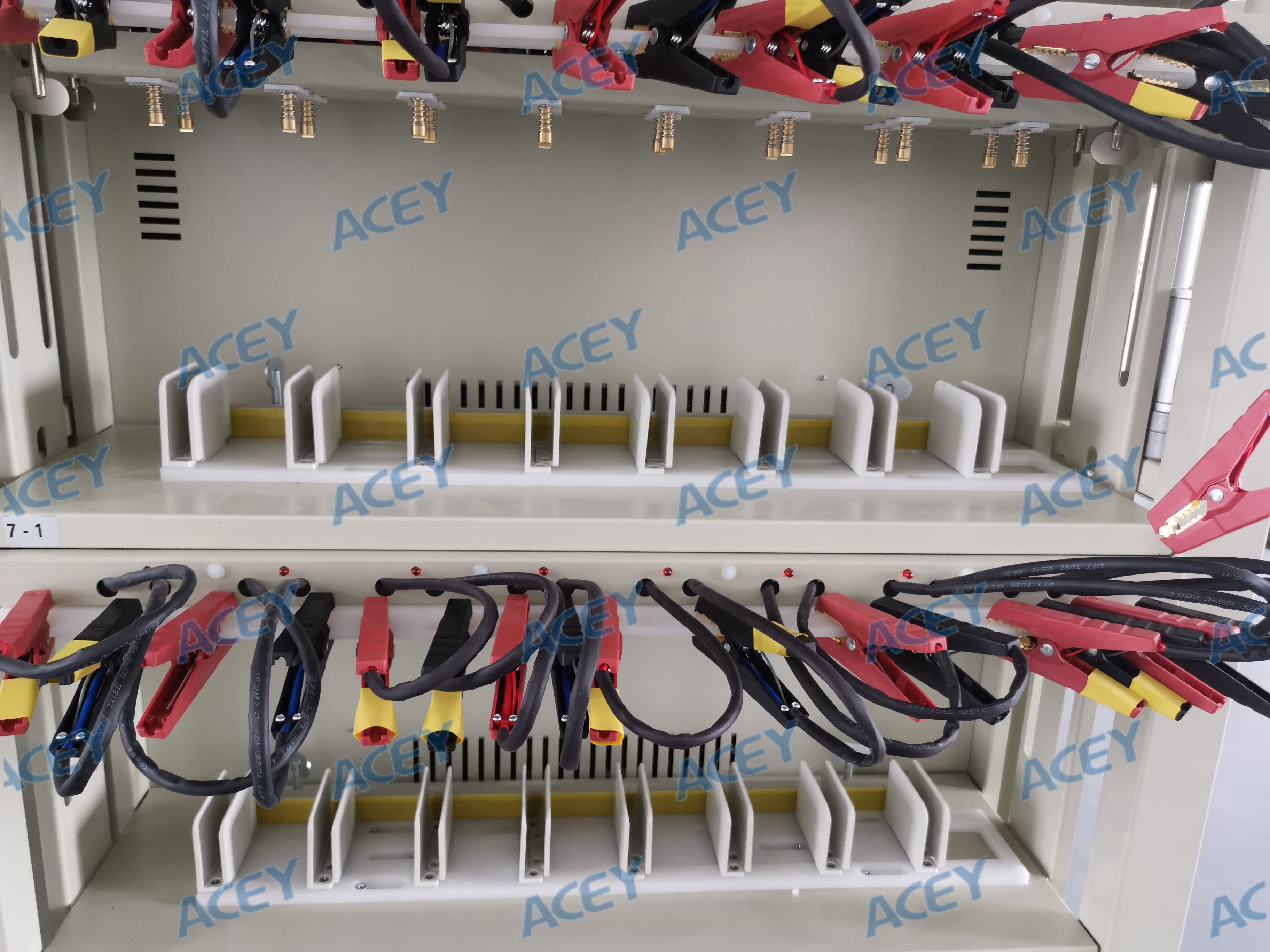

Clamp type Flat head clamp (optional with crocodile clamp)
Clamp spring 80MM
Support battery specifications The battery range is 65-210mm in length, 20-70mm in thickness, 90-200m in height, and 45-160mm in polar ear.
Channel control mode Each channel can be started, stopped, suspended, continued and protected independently.
Each channel has independent constant voltage and current. Hardware control circuit
The accuracy of charging current and discharging current of each channel can be calibrated automatically by software
Working power supply Three phase five wire AC380V土10%, 50Hz
Power factor ≥0.99
AC current distortion rate ≤2%
efficiency of the whole machine Charge 80%, discharge 70%
Power consumption work ≤ 29KW
Equipment failure rate <1%
Work environment Temperature -10~40°C. Relative humidity 80%
Heat dissipation mode Natural wind in, upward exhaust
Voltage measurement range DC 0~5V
Battery voltage range Charge DC 0~4.5V; discharge DC 4.5~2V
Constant voltage range DC 2~4.5V
Voltage accuracy ±(0.05% reading + 0.05% full), resolution ratio 1mV
Voltage stability ≤(±1mV)
Current range Charge DC 50mA～30A; Discharge DC 50mA～30A
Current accuracy ±(0.05% reading + 0.05% full), resolution ratio 1mV
Current stability ≤(±1mA)
Control mode Computer control, can control the whole cabinet with scanning function
Communication mode 485s port communication (port rate 57600)/ TCP
Process settings Up to 32 steps and 256 cycles can be set
Charging mode Constant current; constant pressure; constant current & pressure
Charging cut-off conditions Voltage, current, time, capacity
Discharge mode Permanent flow, constant power, constant resistance
Discharging cut-off conditions Voltage, time, and capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery
Time frame 0~3000 min / step in min
Time accuracy ≤±0.1%
Sampling inspection cycle 1s-60s optional
Battery sorting Divide according to capacity, time, open-circuit voltage, discharge platform, etc.
Data processing Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel, word or mdb format data file

Product Display

160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A

160CH Prismatic Battery Cycle Test Equipment Capacity Testing Machine 5V 30A
