Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2
Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2
Specifications
Brand Name :
Neopower
Certification :
USCAR-2/ USCAR-37 RoHS LV215
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable according to Quantities
Payment Terms :
Western Union, MoneyGram
Supply Ability :
50000 per day
Delivery Time :
3~7 days
Packaging Details :
Standard Export Carton Box
Rated Current :
200A MAX
Rated Voltage :
1000V DC
Insulation Resistance :
5000MΩ(@25℃ 40%-60%RH)
Dielectric Withstanding Voltage :
3000V DC
Wire Range :
16m㎡-50m㎡
IP Rating :
IP67
Operation Temperature :
-40 ℃ ~+125 ℃
Salt Spray Resistance :
48H
HVIL :
Yes
Shell :
metal
Description

Metal Plug for Electric Motor Vechicle Wire range 16m㎡-50m㎡

Features:

  • Secondary lock function

  • Cable range: 16mm2~50mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • Motor controller
  • Lithium battery, lead-acid battery
  • Driving system
  • charging system

Specifications:

  • Rated current: 200A
  • Rated voltage: 1000V DC
  • Insulation resistance: 5000MΩ(@25℃ 40%-60%RH)
  • Dielectric withstanding voltage:3000V DC
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67

Parameters:

Rated Current: 200A MAX
Rated Voltage:

1000V DC
Insulation Resistance: 5000MΩ(@25℃ 40%-60%RH)
Dielectric Withstanding Voltage: 3000V AC
Temperature Range: -40~+125 ℃
IP Rating: IP67
Application: Motor controller, battery, driving system, charging system

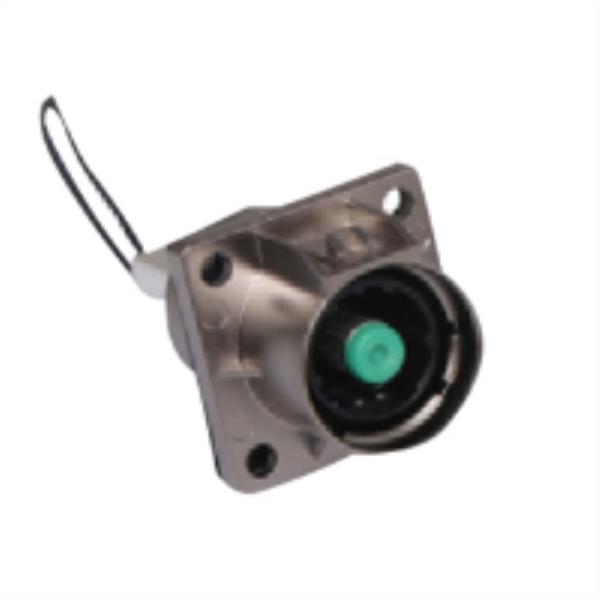

Product Pictures:

Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2

Drawings:

Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2Metal Plug Electric Vehicle Connector Wire Range 16mm2-50mm2
