Specifications

Brand Name :

Neopower

Model Number :

C662

Certification :

CE IEC FCC RoHs

Place of Origin :

China

MOQ :

1 PC

Price :

Negotiable according to Quantities

Payment Terms :

Western Union, MoneyGram

Supply Ability :

50000 per day

Delivery Time :

3~7 days

Packaging Details :

Standard Export Carton Box

Rated Current :

125A (25mm2), 150A (35mm2)

Rated Voltage :

1000V DC

Insulation Resistance :

≥5000mΩ(power)≥1000mΩ(signal)

Dielectric Withstanding Voltage :

2500V AC (power), 1000V AC(signal)

Wire Range :

25 mm2~35mm2

IP Rating :

IP67&IP6K9K,IPXXB

Operation Temperature :

-40 ℃ ~+125 ℃

Salt Spray Resistance :

144H (mating state)

HVIL :

Yes

Shell :

Plastic

Angle :

Straight Angle, Right Angle

Description

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

Part No.: C662

Features:

Secondary lock function
Cable range: 25~50mm²
Poka-yoke
HVIL
Touch-proof
360°shielding

Application:

E-Motor
Battery Pack
Motor Controller
PDU

Specifications:

Rated current: 125A (25mm²) , 150A (35mm²)
Rated voltage:1000V
Insulation resistance: ≥5000mΩ(power)≥1000mΩ(signal)
Dielectric withstanding voltage:2500V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67

Parameters:

Rated Current:	125A (25mm2), 150A (35mm2)
Rated Voltage:	1000V
Insulation Resistance:	≥5000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage:	2500V AC (power), 1000V AC(signal)
Temperature Range:	-40~+125 ℃
IP Rating:	IP67
Application:	E-Motor, Battery Pack, Motor Controller, PDU

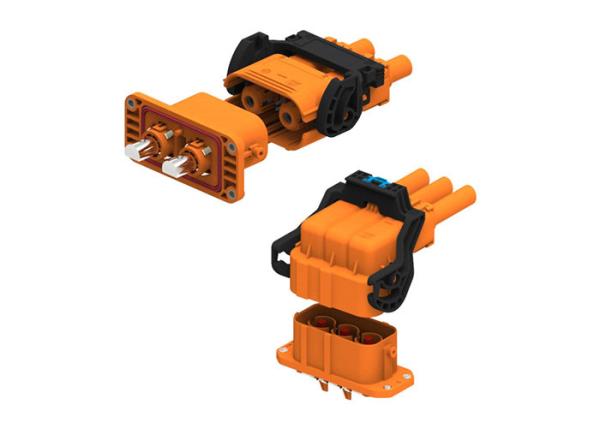

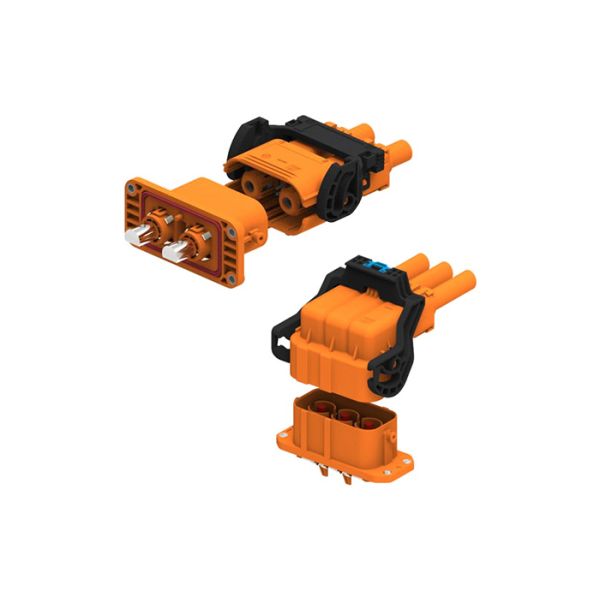

Product Pictures:

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

Drawings:

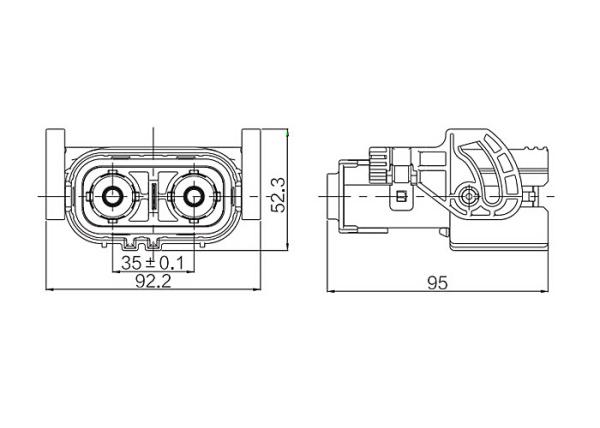

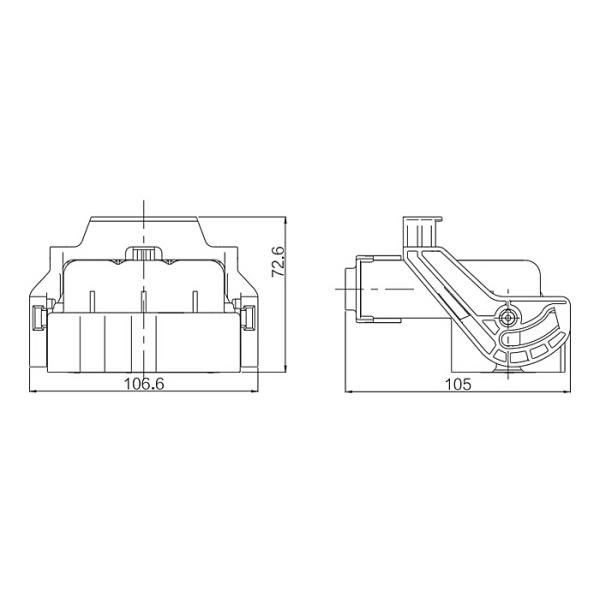

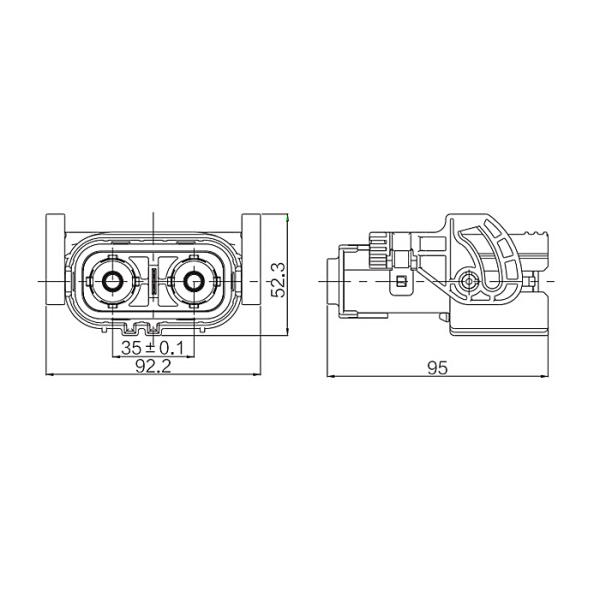

C662 2pin 180° Straight plug

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

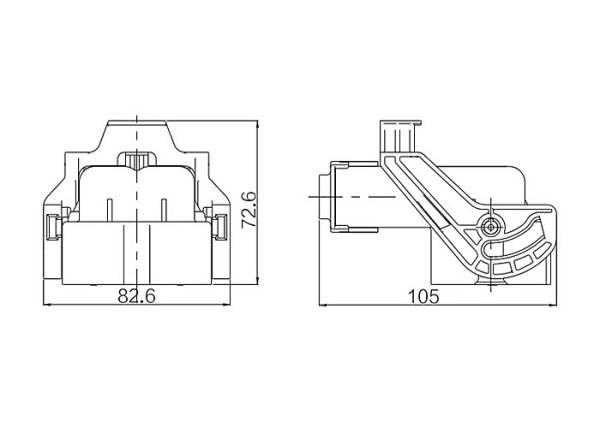

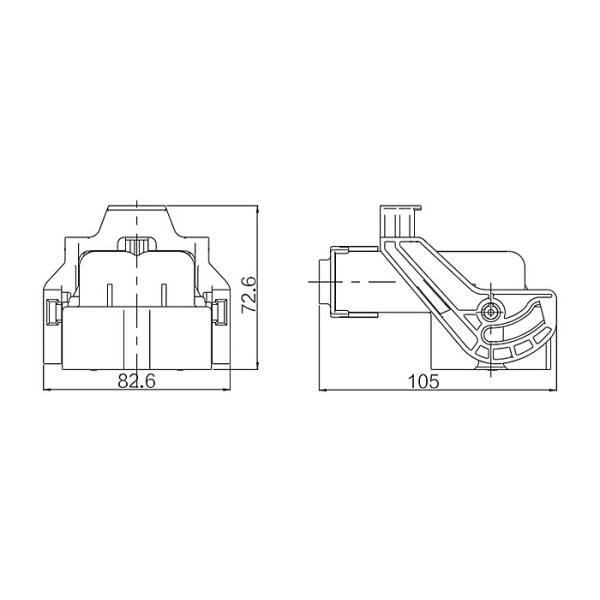

C662 2pin 90° Right Angle plug

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

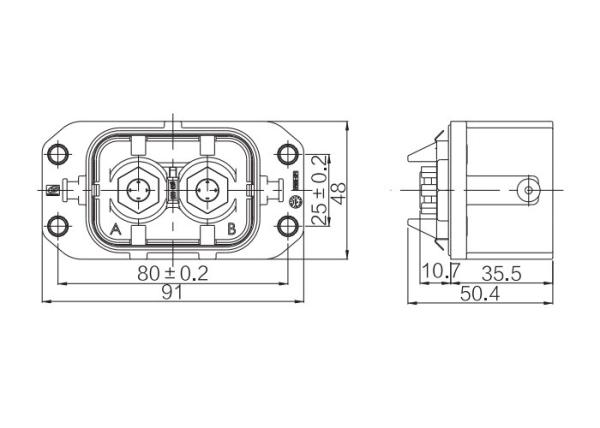

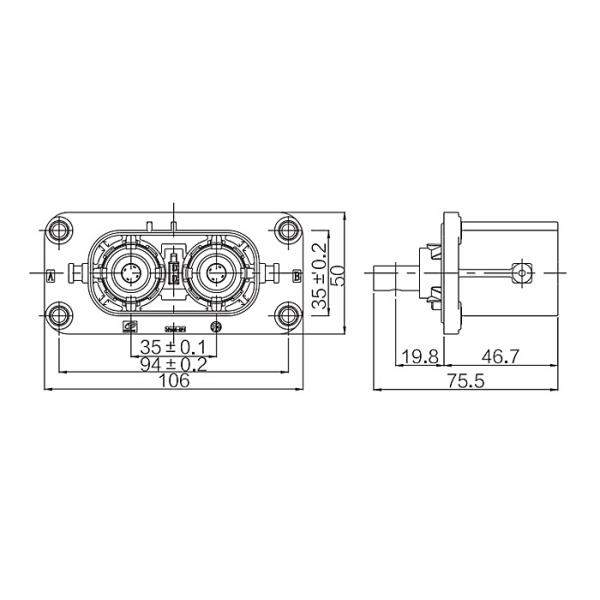

C662 2pin 180° Straight Receptacle
1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

C662 2pin 90° Right Angle Receptacle

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

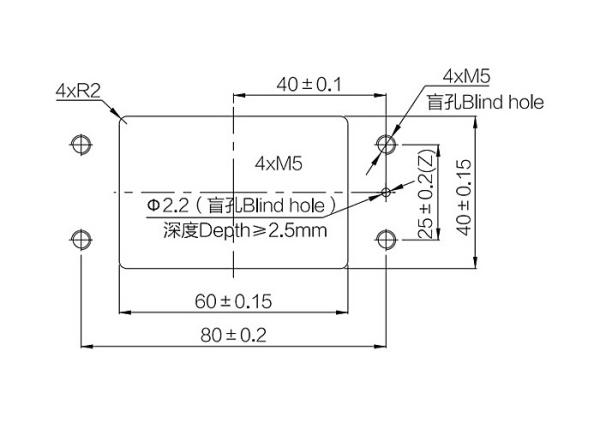

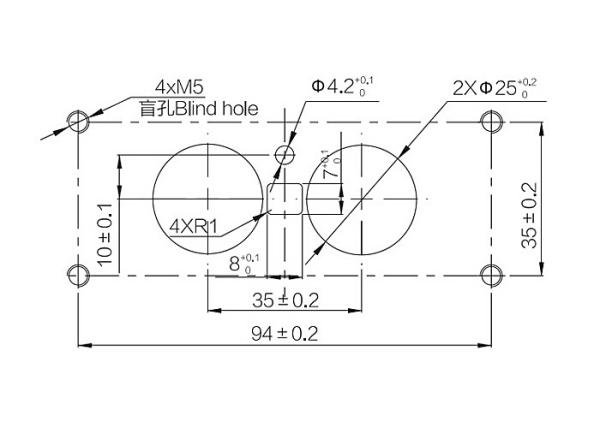

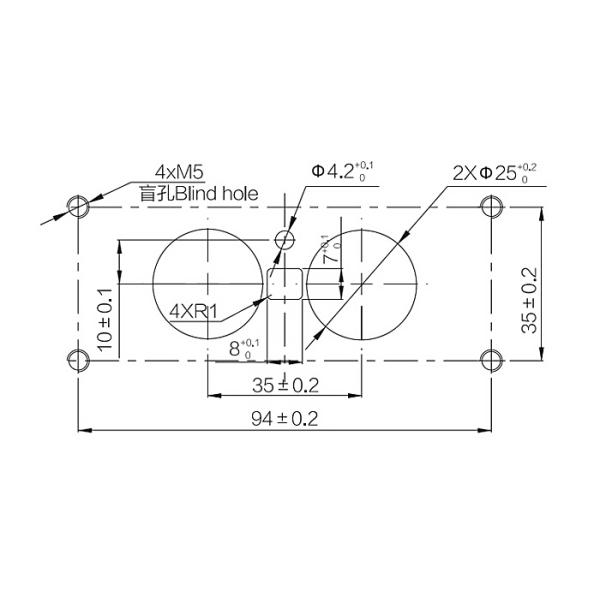

C662 2pin 180° Straight Receptacle Interface Mounting Design

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

C662 2pin 90° Right Angle Receptacle Interface Mounting Design

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

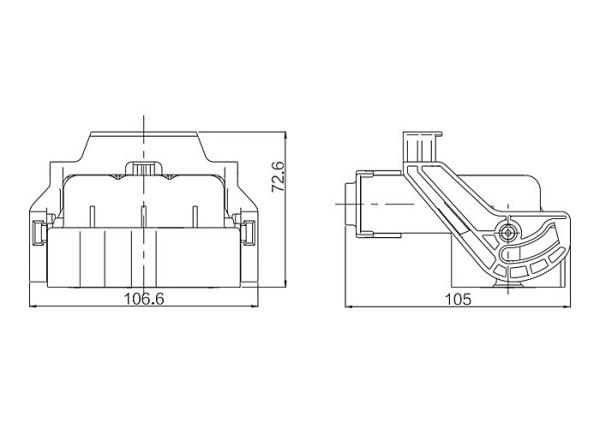

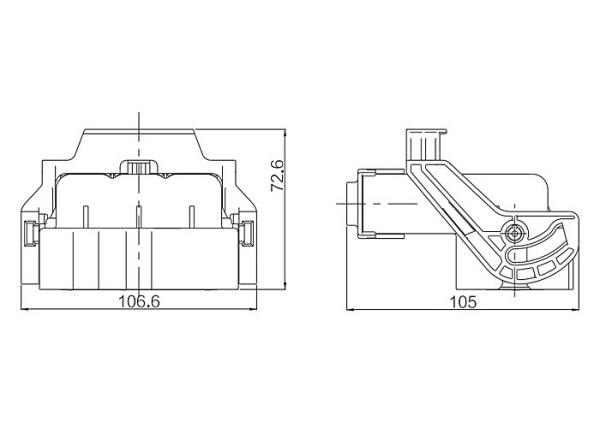

C662 3pin 90° Right Angle Plug

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

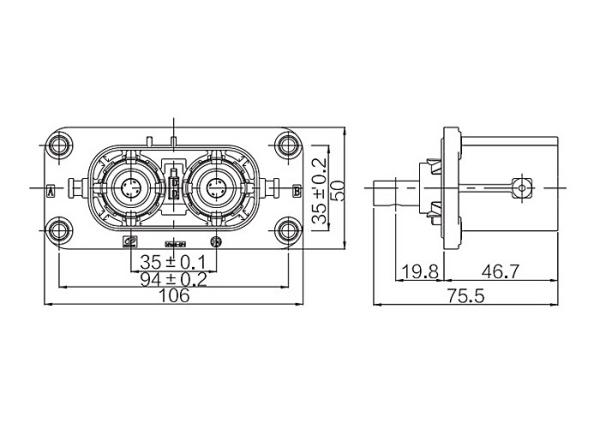

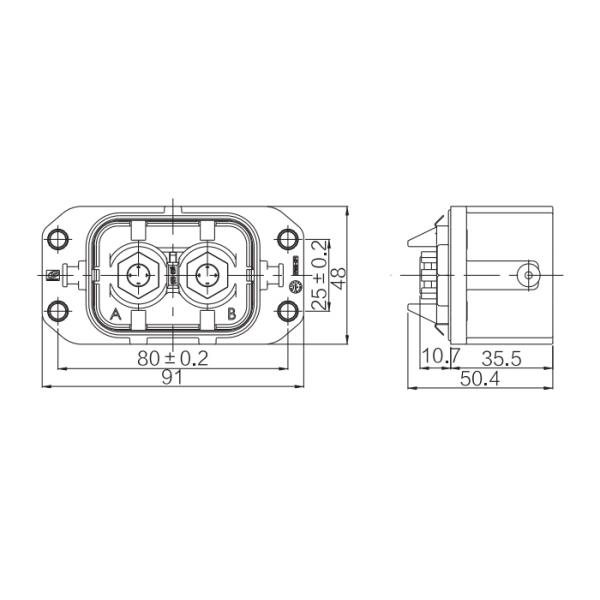

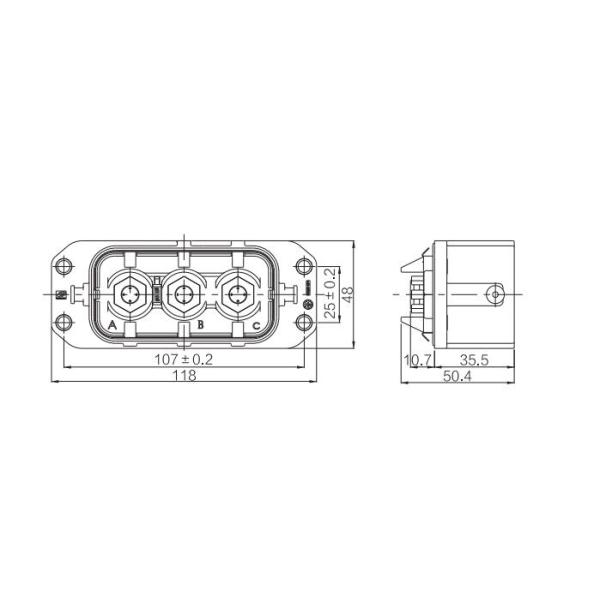

C662 3pin 90° Right Angle Receptacle

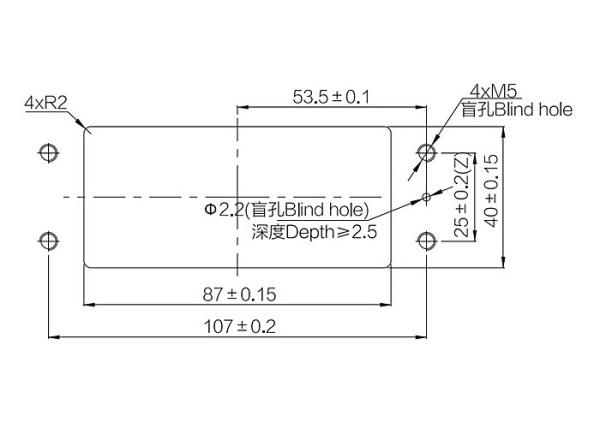

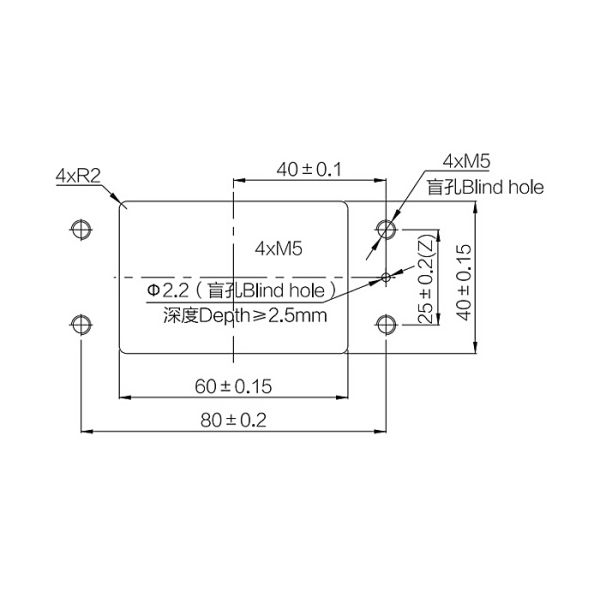

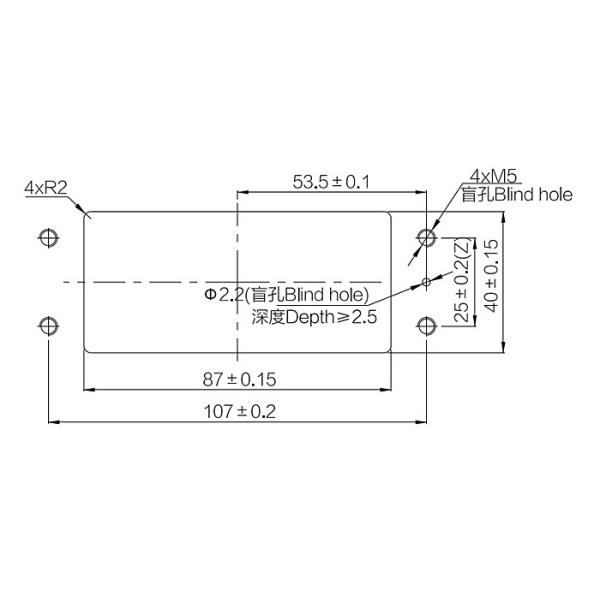

C662 3pin 90° Right Angle Receptacle Interface Mounting Design

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

1000V DC 2 Pin 3Pin Male Female EV Battery Connector IPXXB Waterproof

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
