Crank Arm Type Weishi Series Parking Lot Barrier Gate
Crank Arm Type Weishi Series Parking Lot Barrier Gate
Crank Arm Type Weishi Series Parking Lot Barrier Gate
Crank Arm Type Weishi Series Parking Lot Barrier Gate
Specifications
Brand Name :
JWSY
Model Number :
JWS-D07
Place of Origin :
China
MOQ :
10 units
Payment Terms :
Payment before delivery
Supply Ability :
10000 units
Delivery Time :
10 Work days
Packaging Details :
Carton packaging
Device Name :
Weishi Series Straight Boom Parking Lot Barrier Gate JWS-D07
Chassis Dimensions :
985*340*300mm
Color Selection :
pearl white
Power Supply voltage :
DC24V
Service Life :
≥ 3 million times
Landing Speed :
2.5-6s adjustable, optional 0.3S/0.6S/1.2S
Rated Power :
200W
Maximum rod length :
6m straight pole, 5m fence railing, 5m bent arm pole
Description

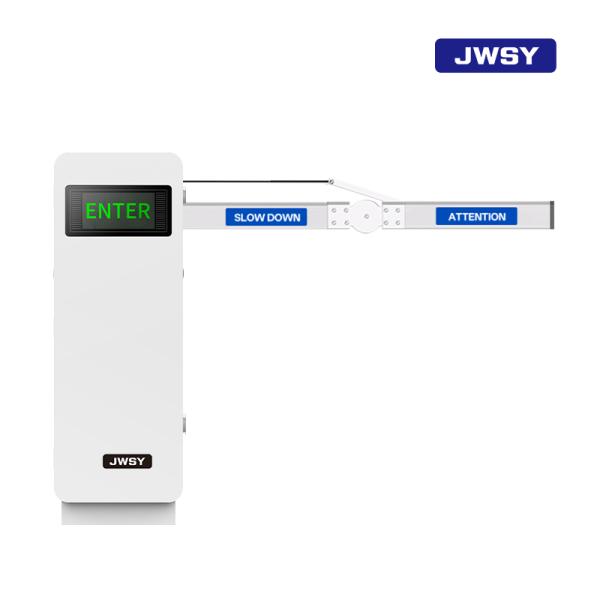

▋Crank Arm Type Weishi Series Parking Lot Barrier Gate
The Crank Arm Type Weishi Series Parking Lot Barrier Gate is a highly adaptable intelligent barrier designed for the diverse scenarios of parking lot entrances and exits. It focuses on the special usage needs of height-limited passages, narrow entrances and exits, community parks and other areas, and creates a cost-effective entrance and exit management solution with hardcore craftsmanship and intelligent configuration. Equipped with a foldable crank arm barrier bar, the device features flexible lifting and high space utilization. The body is forged with thickened sheet metal, resistant to impact and corrosion, and suitable for complex outdoor environments. The whole machine integrates core technologies such as intelligent drive, multi-layer anti-crushing and license plate recognition linkage. The barrier bar starts and stops stably and quickly, supporting local control, remote cloud management and unattended mode. It can seamlessly connect with the smart parking management system, and is widely applicable to residential communities, industrial parks, shopping mall supporting parking lots, office buildings and other scenarios, balancing traffic efficiency, usage safety and management convenience.

▋Technical Specifications

Product Model JWS-D07
Device Name
Weishi Series Straight Boom Parking Lot Barrier Gate JWS-D07
power supply voltage DC24V
Landing speed 2.5-6s adjustable, optional 0.3S/0.6S/1.2S
Maximum rod length 6m straight pole, 6m fence railing, 6m bent arm pole
Color Selection pearl white
Protection level IP54
rated power 200w
service life ≥ 3 million times
Rod material 100mm × 45mm aluminum alloy material
Operating Temperature -30°C-75°C
Chassis thickness 2.0mm
spray thickness 60-120um
Chassis decoration LED light
Box salt spray test time 72 hours
Optional interface 485, Bluetooth, TTL, TCP/IP, 4G, etc
Support accessories Infrared radiation, radar, ground sensing, traffic lights, sound and light alarms, etc
anti-smash Resistance rebound, delayed pole drop, fleet mode, etc
Remote control distance/encryption ≥ 50m/Yes (open and unobstructed)
Accessories List 2 * Remote Control, 2 * Key, 2 * Head M10 × 70 Screw, 4 * 12 × 150 Expansion Screw
Chassis dimensions 985*340*300mm
Box packaging size/weight 1055×375×410mm/50KG


▋Product Features


  1. Multiple protections: motor overcurrent, overload, short circuit protection, motor fault protection, power reverse protectionSupport external remote control input
  2. Integrating three anti-crushing designs of ground sense coil, infrared correlation and mechanical resistance rebound, sensing obstacles in real time, and protecting the safety of people and vehicles in an all-round way
  3. Supports RS232/RS485 serial communication
  4. Custom foldable crank arm barrier bar with flexible lifting and folding, adapted to special scenarios such as height limitation and narrow passages, maximizing the use of entrance and exit space

▋Product precautions


  1. The barrier gate must be operated with a hand crank when the power is off;
  2. When the product leaves the factory, the tension spring has been matched to a balanced state according to the length and weight of the brake rod. It is not allowed to increase or decrease the length and weight of the brake rod without authorization to avoid the danger of losing balance. If changes are required, professional personnel should be consulted for operation;
  3. Without installing the tension spring on the machine, it is strictly prohibited to remove the tension spring when the brake lever is in a horizontal position;
  4. When replacing or repairing the brake lever, it must be in the lifting position and in a power-off state. Remove the tension spring, and one person should hold the brake lever with their hand. The other person should use the hand wheel at the end of the hand cranked motor to lower the brake lever to a horizontal position before replacing it.
