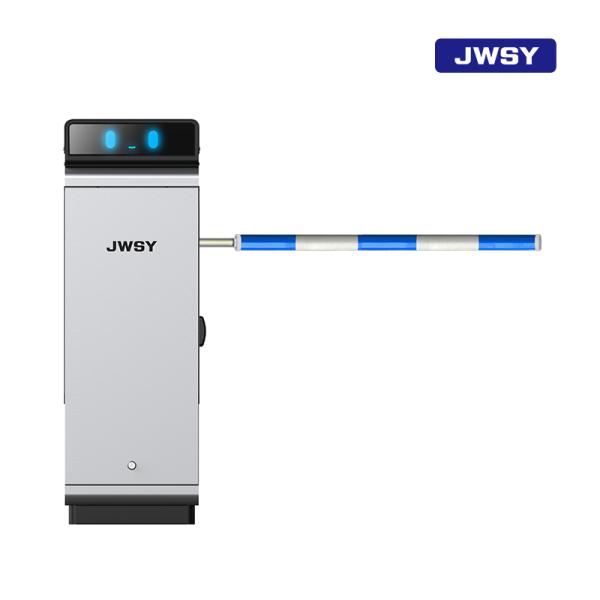

Xiaowei Robot Series Barrier Gate with Anti-Collision Foam Arm
Xiaowei Robot Series Barrier Gate with Anti-Collision Foam Arm
Xiaowei Robot Series Barrier Gate with Anti-Collision Foam Arm
Xiaowei Robot Series Barrier Gate with Anti-Collision Foam Arm
Specifications
Brand Name :
JWSY
Model Number :
JWS-D08
Place of Origin :
China
MOQ :
10 units
Payment Terms :
Payment before delivery
Supply Ability :
10000 units
Delivery Time :
10 Work days
Packaging Details :
Carton packaging
Device Name :
Xiaowei Robot Series Barrier Gate with Anti-Collision Foam Arm
Chassis Dimensions :
1060*355*307mm
Color Selection :
Silver/Gold/Grey
Power Supply voltage :
DC24V
Service Life :
≥ 3 million times
Landing Speed :
2.5-6s adjustable, optional 0.3S/0.6S/1.2S
Rated Power :
200W
Maximum rod length :
6m straight pole, 6m fence railing, 6m bent arm pole
Description
▋Xiaowei Robot Series Barrier Gate with Anti-Collision Foam Arm
Xiaowei Robot Series Barrier Gate with Anti-Collision Foam Arm is equipped with a cute Xiaowei robot shape, exquisite and recognizable, suitable for parking lot entrances of communities, shopping malls, etc. Custom thickened anti-collision foam arm provides flexible buffering to protect people, vehicles and movement; driven by intelligent movement, it lifts and lowers stably and sensitively, which can link with license plate recognition and access control for automatic passage and remote control, balancing security and efficiency.

▋Technical Specifications

Product Model JWS-D08
Device Name Xiaowei Robot Series Barrier Gate with Anti-Collision Foam Arm
power supply voltage DC24V
Landing speed 2.5-6s adjustable, optional 0.3S/0.6S/1.2S
Maximum rod length 6m straight pole, 6m fence railing, 6m bent arm pole
Color Selection Silver
Protection level IP54
rated power 200w
service life ≥ 3 million times
Rod material 100mm × 45mm aluminum alloy material
Operating Temperature -30°C-75°C
Chassis thickness 2.0mm
spray thickness 60-120um
Chassis decoration LED light have
Box salt spray test time 72 hours
Optional interface 485, Bluetooth, TTL, TCP/IP, 4G, etc
Support accessories Infrared radiation, radar, ground sensing, traffic lights, sound and light alarms, etc
anti-smash Resistance rebound, delayed pole drop, fleet mode, etc
Remote control distance/encryption ≥ 50m/Yes (open and unobstructed)
Accessories List 2 * Remote Control, 2 * Key, 2 * Head M10 × 70 Screw, 4 * 12 × 150 Expansion Screw
Chassis dimensions 1060*355*307mm


▋Product Features

  1. Cute Xiaowei robot shape, simple and exquisite, suitable for various modern scenarios, easy to clean.
  2. Custom thickened foam arm, high-elastic buffering, anti-scratch, movement protection and fault reduction.
  3. Equipped with a special intelligent drive system, the barrier bar has fast lifting response and stable operation without stuttering, improving vehicle traffic efficiency
  4. When the falling and lifting rods are in place, deceleration buffering is achieved, making the brake rod smoothly in place
  5. Quiet: The working noise is below 50db
  6. Material: The main body of the movement is made of aluminum alloy material, manufactured by die-casting technology, with reliable mechanical

▋Product precautions

  1. When the product is running, please confirm that there are no obstacles blocking the running path;
  2. When the barrier gate is in operation, it is strictly prohibited to open the chassis door or cover to avoid accidents;
  3. At the time of leaving the factory, the internal wiring of this gate has been prepared, and generally, users are not allowed to make changes. They only
  4. need to connect the AC 220V power supply to the input terminal of the air switch;
  5. The chassis shell must be grounded and a leakage protection switch must be installed at the power end;
  6. When lowering the gate, it is strictly prohibited to place objects or have people standing or walking below the gate;
  7. When there is a power outage at the barrier gate, the gate rod needs to be manually raised through the hand wheel at the end of the motor;
