Front Mounted Ultrasonic Detector With Gray ABS Engineering Plastic
Front Mounted Ultrasonic Detector With Gray ABS Engineering Plastic
Front Mounted Ultrasonic Detector With Gray ABS Engineering Plastic
Front Mounted Ultrasonic Detector With Gray ABS Engineering Plastic
Specifications
Brand Name :
JWSY
Model Number :
P-T02F
Place of Origin :
China
MOQ :
10 units
Payment Terms :
Payment before delivery
Supply Ability :
10000 units
Delivery Time :
10 Work days
Packaging Details :
Carton packaging
Equipment Name :
Front Mounted Ultrasonic Detector
Specification & Dimension :
φ126*125mm
Exterior Material :
Gray ABS Engineering Plastic
Communication Mode :
RS485
Communication Interface :
2 RJ45 Ports
Description

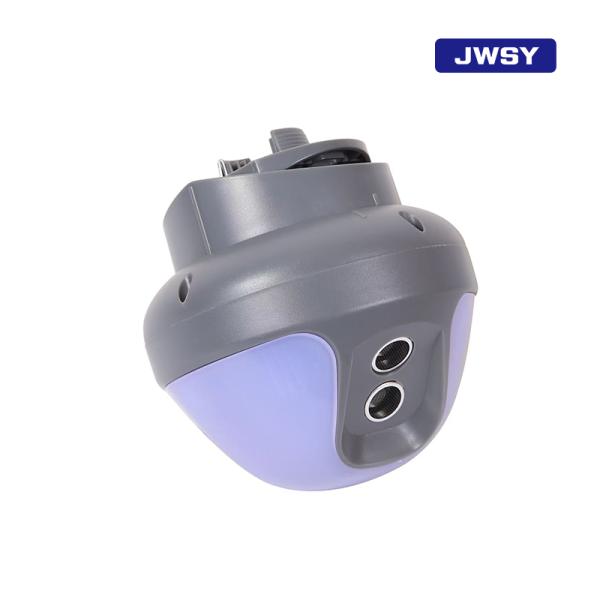

▋Front-mounted Ultrasonic Detector
The front-mounted ultrasonic parking space detector integrates an ultrasonic probe and an indicator light into one unit. Installed directly above the front of each parking space line, it collects real-time parking space status data and controls the parking space indicator light to display red or green accordingly based on whether the parking space is occupied or vacant.

▋Technical Specifications

Equipment Name Front-mounted Ultrasonic Detector
Product Model P-T02F
Specification & Dimension φ126*125mm
Exterior Materia Gray ABS Engineering Plastic
Net Weight 180g
Indicator Light Type 7-color High-brightness LED
Installation Position Horizontal 3.9~4.2m (from stop line) / Vertical 2~3m (2.5-2.8m recommended)
Detection Accuracy ≥99%
Power Consumption <1W
Working Voltage DC 10~28V(Rated 24V)
Working Temperature -30℃~ +75℃
Ambient Humidity 40%~70%RH
Detector Response Time After Parking <2s
Distance Detection Error 2cm
Communication Mode RS485
Communication Interface 2 RJ45 Ports
Communication Distance ≤300m (Cat 5e Network Cable)
Power Supply Distance ≤150m (Cat 5e Network Cable)

▋Product Features

  1. Integrates the parking space detector and indicator light into a single unit, greatly reducing material and construction costs while shortening the construction period.
  2. Adopts a dual-channel independent ultrasonic transmitting and receiving circuit design with a large detection area; each channel works independently, which greatly improves the service life and reliability of the detector.
  3. Utilizes an advanced intelligent learning anti-interference algorithm to eliminate interference from adjacent lanes, side vehicles and opposite radiation, with a detection accuracy of over 99%.
  4. The parking space status indicator light is designed with high-brightness LED beads, featuring low power consumption, long service life, a wide viewing angle and a long visible distance.
  5. The detector is installed on the bridge frame directly above the front of each parking space, effectively avoiding obstruction by columns and achieving a neater and more aesthetic installation effect.
