W-TB509 Stainless Steel Swing Turnstile with 0.2s Fast Opening and Multi-Access Control for Secure Pedestrian Entry
W-TB509 Stainless Steel Swing Turnstile with 0.2s Fast Opening and Multi-Access Control for Secure Pedestrian Entry
W-TB509 Stainless Steel Swing Turnstile with 0.2s Fast Opening and Multi-Access Control for Secure Pedestrian Entry
W-TB509 Stainless Steel Swing Turnstile with 0.2s Fast Opening and Multi-Access Control for Secure Pedestrian Entry
Specifications
Brand Name :
JWSY
Model Number :
W-TB509
Place of Origin :
China
MOQ :
10 units
Payment Terms :
Payment before delivery
Supply Ability :
10000 units
Delivery Time :
10 Work days
Packaging Details :
Carton packaging
Device Name :
W-TB509 Premium Stainless Steel Swing Turnstile | Compact Minimal Design, Silent Quick Pass & Multi-Access Control
Dimensions :
1500*200*1000 mm(Customizable)
Box material :
304D Stainless Steel
Color Selection :
Silver
Power Supply voltage :
DC24V
Clear Passage Width :
700-1000 mm(Standard)
Description

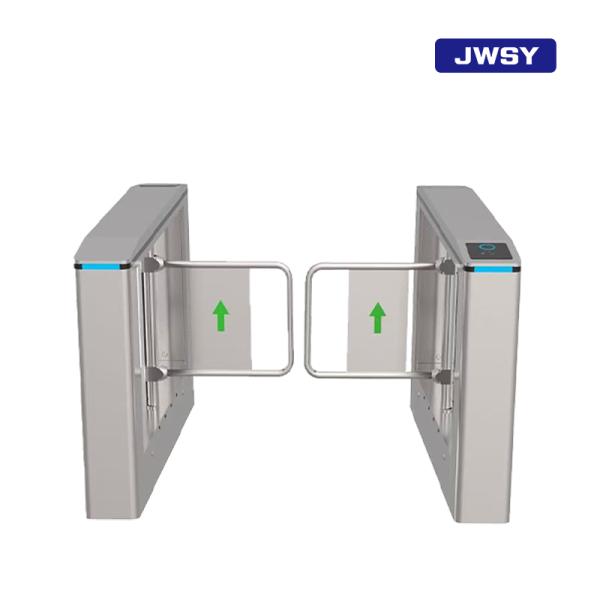

W-TB509 Premium Stainless Steel Swing Turnstile
Compact Minimal Design, Silent Quick Pass & Multi-Access Control
W-TB509 Minimal Stainless Steel Swing Turnstile features full stainless steel swing arm & cabinet for neat minimalist styling, ideal for office and high-end community access control. Powered by 60W DC motor with 0.2s ultra-fast silent opening; standard passage width 700-1000mm and customizable cabinet size. IP54 dust & water resistance plus infrared anti-pinch safeguard; compatible with facial recognition, card & QR access terminals for flexible intelligent management.
Technical Specifications
Dimensions 1500×200×1000 mm (Customizable)
Body Thickness 1.5 mm
Clear Passage Width 700-1000 mm (Standard)
Swing Arm Material Acrylic
Passage Speed 40 persons/minute
Power Supply 110V/220V 50/60Hz
DC Motor Power 60W
Door Open Signal Dry Contact / Relay
Drive Motor Voltage 24V
Weight 45 kg / pcs
Case Material 304 Stainless Steel
Mechanism Reliability 5 Million Cycles, Trouble-free
Packaging Carton Box; Wooden Box available for export
Working Direction Bidirectional / Unidirectional
Emergency Mode Auto Open (In case of power failure)
Working Humidity ≤ 90%
Working Temperature -30℃ ~ 60℃
Communication Method Network Port Communication
Communication Interface TCP / IP
Function / Accessories IC/ID Card Reader, Barcode Scanner, Face Recognition, Fingerprint, Other Access Control Devices, UPS, etc.
Opening Time 0.2 seconds
Working Environment Indoor or Outdoor
Application Communities, Factories, Construction Sites, Schools, Resorts, etc.
Product Features
All Stainless Minimal Outlook
Whole stainless steel cabinet & swing arm, sleek plain design fits modern minimalist decoration style.
Silent Rapid Pass
0.2s fast mute opening, smooth operation to enhance pedestrian efficiency.
Infrared Anti-Pinch Safety
Built-in multi-infrared anti-clamp structure to avoid accidental pinching.
Multi-Mode Access Match
Plug-and-play with card reader & facial device, multiple unlocking options.
IP54 Durable Structure
IP54 rated sealing, rustproof stainless material for indoor & outdoor long service.
