H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
Specifications
Key Life :
3,000,000 Cycles
Aiming :
LED/Laser
Humidity :
5%-95%
Protection Level :
IP42
I/O Interfaces :
USB/RS232/Button Trigger
Sensor Resolution :
640×480/1280×800
Brand Name :
SR
Model Number :
H100/H103
Place of Origin :
China
MOQ :
10PCS
Price :
13-20usd
Payment Terms :
L/C,T/T
Supply Ability :
4000 pcs/day
Delivery Time :
5 working days
Packaging Details :
corrugated paper box
Description
H100/H103 Smart Scanners: Industry-Wide Data Collection Solutions
The H100/H103 handheld scanner provides fast, accurate data collection across multiple industries including manufacturing, warehousing, retail, and healthcare.
Key Features
  • Reads various barcode types including long, broken, large 2D codes, and screen barcodes
  • Ergonomic, lightweight design for comfortable extended use
  • Durable construction with IP42 water/dust resistance
  • Withstands 1.2m drops and 3 million keystroke cycles
Technical Specifications
Primary Category Secondary Category / Parameter Details
Physical Parameters Dimension: 166*73*83mm
Weight: 105g
Electrical Parameters ESD: ±8KV (Air)/±4KV (Contact)
Input Voltage: 5V
I/O Interfaces: USB/RS232/Button Trigger
Performance Parameters Sensor Resolution: 640*480/1280*800
Illumination: White Lighting
Aiming: LED/Laser
Barcode Resolution: Min. 3mil
FOV: 57.6°(O)/46.6°(H)/36.8°(V)
Barcode Contrast: ≥25% Print Contrast
Scan Angles: Tilt ±60°/Rotation 360°/Skew ±60°
Reading Indicator: LED Light
Reading Range 13mil EAN13: 50-230mm
15mil QR Code: 30-130mm
Environmental Parameters Drop Test: 1.2m Steel Plate Drop/6,000*10cm Micro Drops
Drum Test: 300*0.5m Tumbles
Protection Level: IP42
Key Life: 3,000,000 Cycles
Ambient Light: 0-100,000lux
Humidity: 5%-95%
Temperature: Operating -20~50℃/Storage -40~70℃
Decoding Capability 2D Codes: UCC Composite/Aztec (8 Types Total)
1D Codes: EAN/UPC/GS1 DataBar (16 Types Total)
Postal Codes: Australian Post/British Post (10 Types Total)
Stacked Codes: EAN/JAN Composites/GS1 DataBar (9 Types Total)

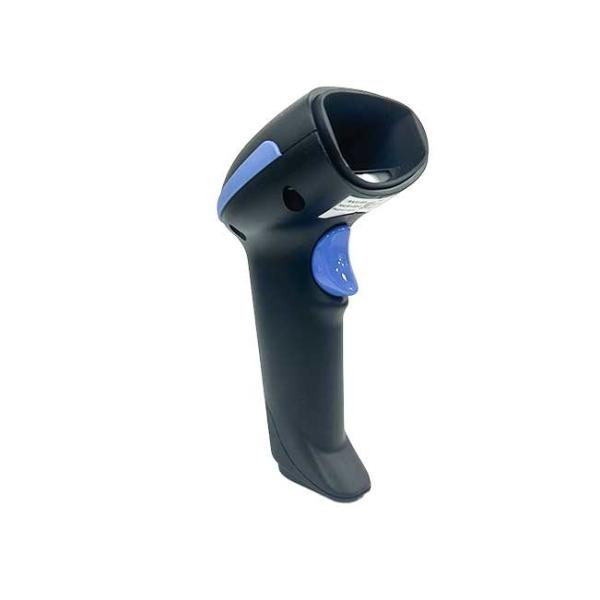

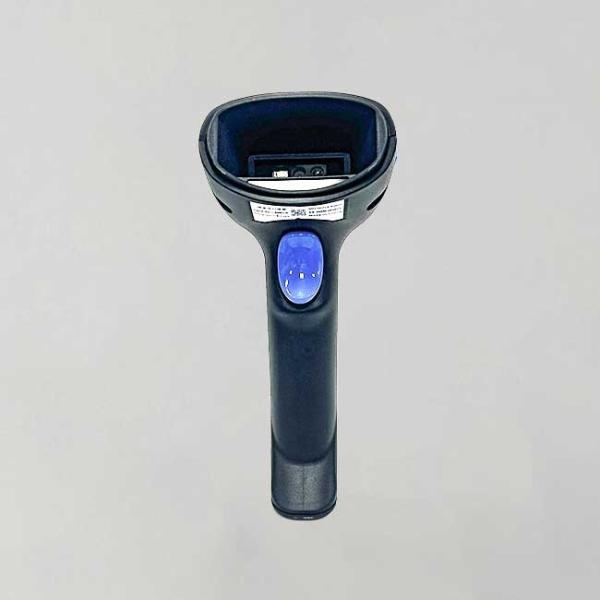

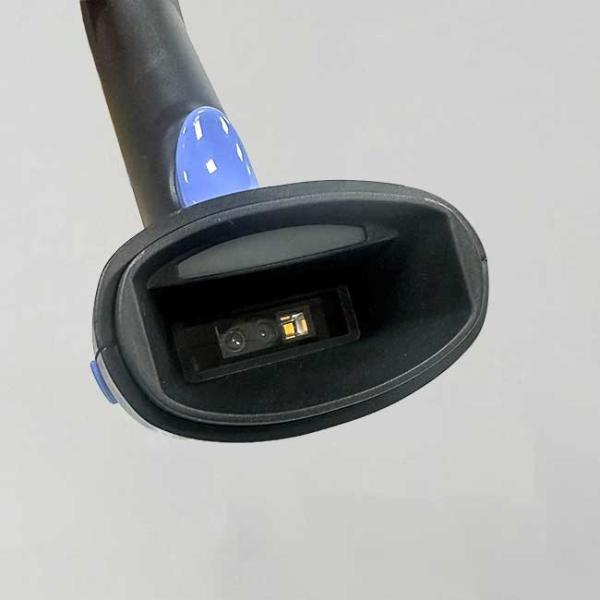

Product Images
H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating H100/H103 Handheld Barcode Scanner with 3M Key Life and IP42 Rating
