HE200BT Industrial Wireless Handheld Barcode Scanner with Dual-mode Wireless Communication, High-resolution CMOS Sensor, and 1.5m Drop Resistance
HE200BT Industrial Wireless Handheld Barcode Scanner with Dual-mode Wireless Communication, High-resolution CMOS Sensor, and 1.5m Drop Resistance
HE200BT Industrial Wireless Handheld Barcode Scanner with Dual-mode Wireless Communication, High-resolution CMOS Sensor, and 1.5m Drop Resistance
HE200BT Industrial Wireless Handheld Barcode Scanner with Dual-mode Wireless Communication, High-resolution CMOS Sensor, and 1.5m Drop Resistance
Specifications
Brand Name :
SR
Model Number :
HE200BT
Place of Origin :
China
MOQ :
10PCS
Price :
13-20usd
Payment Terms :
L/C,T/T
Supply Ability :
4000 pcs/day
Delivery Time :
5 working days
Packaging Details :
corrugated paper box
Scanner Dimensions :
211×76×100mm
Base Dimensions :
262×101×66mm
Scanner Weight :
400g
Storage Temperature :
-20℃~70℃
Operating Temperature :
-10℃~50℃
Standby Current :
180mA@5V
Operating Current :
320mA@5V
Operating Voltage :
DC5V±10%
Description
HE200BT Industrial Wireless Handheld Barcode Scanner
Featuring a high-resolution professional engine engineered exclusively for industrial data collection applications, the HE200BT Wireless Handheld Barcode Scanner combines professional scanning performance with dual-mode wireless connectivity. This industrial-grade solution delivers fast, accurate, and stable data capture for demanding environments.
Product Overview
The HE200BT wireless handheld barcode scanner is engineered for industrial-grade data capture scenarios. Equipped with a professional scanning engine and high-resolution sensor, it serves as essential equipment for efficient operations across warehousing, logistics, manufacturing, retail, and wholesale sectors.
Key Features
  • Dual-mode wireless communication (Bluetooth 4.0 and 433MHz)
  • Extended transmission range: 200m (433MHz) or 20m (Bluetooth)
  • High-resolution monochrome imaging CMOS sensor
  • Removable 2600mAh battery with over 8 hours continuous scanning
  • Rugged construction withstands 1.5m drops
  • Comprehensive 1D and 2D barcode symbology support
Technical Specifications
Scanning Performance
Image Sensor Monochrome Imaging CMOS
Pixel Resolution 1056×1248
Field of View Angle Horizontal 40°, Vertical 31°
Reading Precision ≥3mil
Reading Contrast ≥15%
Reading Angle Tilt ±60°, Rotation ±360°, Skew ±60°
Wireless & Connectivity
Wireless Frequency Band 433MHz/Bluetooth 4.0 Dual Mode
Communication Distance 433MHz: 200m (open area); Bluetooth: 20m (open area)
Base Communication Interface USB or RS232
Power & Battery
Battery Capacity 2600mAh (removable)
Charging Time 4-6 hours
Continuous Scanning Time >8 hours (at 1 scan per second)
Storage Capacity >5000 barcodes
Physical Specifications
Scanner Dimensions 211×76×100mm
Base Dimensions 262×101×66mm
Scanner Weight 400g
Base Weight 350g
Environmental Specifications
Operating Temperature -10℃ to 50℃
Storage Temperature -20℃ to 70℃
Relative Humidity 5% to 95% (no condensation)
Drop Resistance Withstands 50 drops from 1.5m height
Supported Barcode Symbologies
2D Symbologies
  • Aztec Code
  • Han Xin Code
  • Data Matrix
  • MaxiCode
  • QR Code
  • Micro QR
  • MQR
  • Dot Code
  • Grid Matrix
  • Codablock A
  • Codablock F
  • PDF417
  • Micro PDF417
1D Symbologies
  • Codabar
  • Code11
  • Code128
  • ISBT128
  • Code32
  • Code39
  • TLC39
  • Code93/93i
  • BC412
  • UK Plessey
  • Anker Plessey
  • EAN-13
  • EAN-8
  • GS1
  • MSI
  • Telepen
  • Pharma
  • PatchCode
  • UPC-A
  • UPC-E

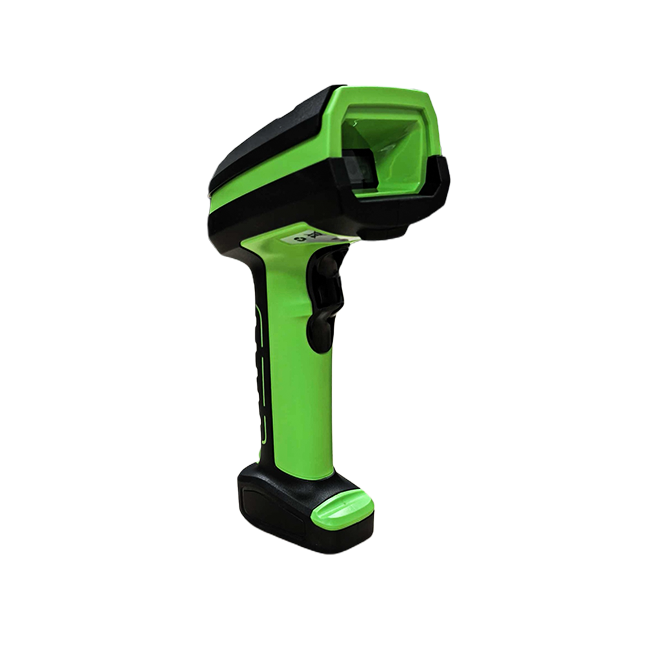

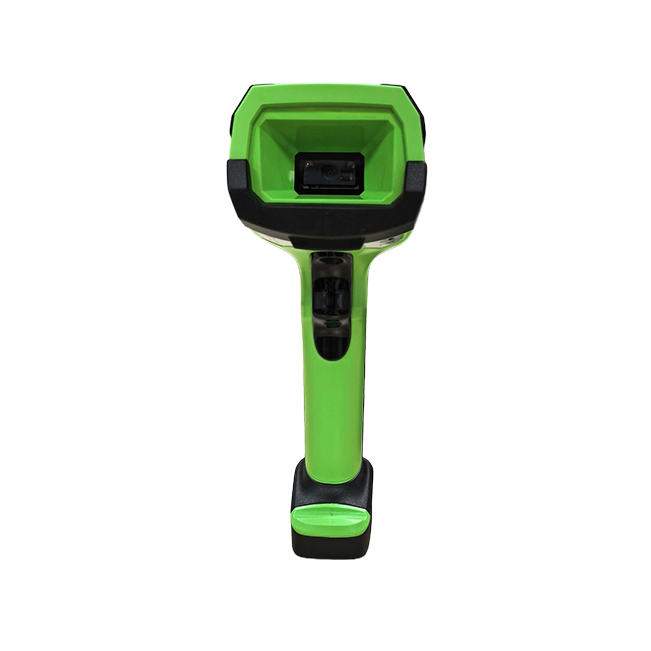

Product Images
HE200BT Industrial Wireless Handheld Barcode Scanner with Dual-mode Wireless Communication, High-resolution CMOS Sensor, and 1.5m Drop Resistance HE200BT Industrial Wireless Handheld Barcode Scanner with Dual-mode Wireless Communication, High-resolution CMOS Sensor, and 1.5m Drop Resistance
