Ergonomic H100/H103 Handheld Barcode Scanner with 3mil Precision and IP42 Durability for Fast Data Capture
Ergonomic H100/H103 Handheld Barcode Scanner with 3mil Precision and IP42 Durability for Fast Data Capture
Ergonomic H100/H103 Handheld Barcode Scanner with 3mil Precision and IP42 Durability for Fast Data Capture
Ergonomic H100/H103 Handheld Barcode Scanner with 3mil Precision and IP42 Durability for Fast Data Capture
Ergonomic H100/H103 Handheld Barcode Scanner with 3mil Precision and IP42 Durability for Fast Data Capture
Ergonomic H100/H103 Handheld Barcode Scanner with 3mil Precision and IP42 Durability for Fast Data Capture
Specifications
Brand Name :
SR
Model Number :
H100/H103
Place of Origin :
China
MOQ :
10PCS
Price :
13-20usd
Payment Terms :
L/C,T/T
Supply Ability :
4000 pcs/day
Delivery Time :
5 working days
Packaging Details :
corrugated paper box
Temperature :
Operating -20~50℃/Storage -40~70℃
Humidity :
5%-95%
Ambient Light :
0-100,000lux
I/O Interfaces :
USB/RS232/Button Trigger
Sensor Resolution :
640×480/1280×800
Aiming :
LED/Laser
Description

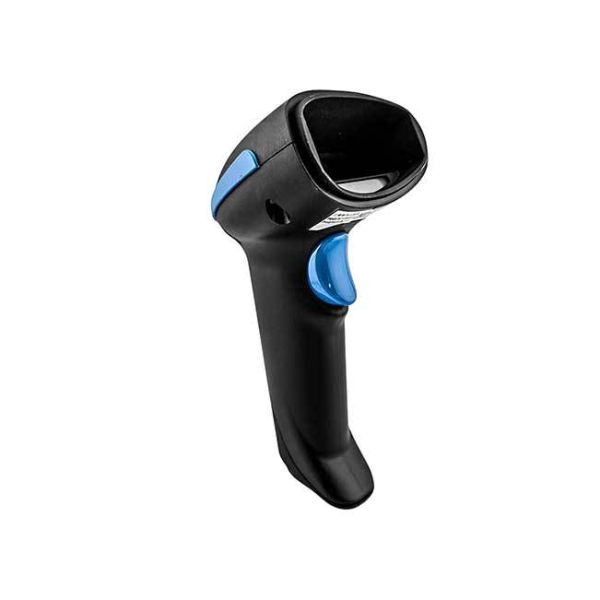

H100/H103 Handheld Barcode Scanner
A powerhouse tool for cross-industry efficient data collection. Built with a low-power yet high-performance core, this scanner delivers outstanding value for industrial applications. It accurately decodes long barcodes, wrinkled barcodes, large QR codes and screen barcodes, handling complex symbologies with ease. Its ergonomic design features a compact, lightweight build that fits comfortably in hand, minimizing user fatigue and enabling prolonged, high-frequency operations.
Key Features
  • IP42 protection level withstands 1.2-meter drops
  • Keypad rated for 3 million cycles
  • Durable and reliable construction
  • Enhances scanning efficiency and quality
Technical Specifications
Category Specifications
Physical Parameters Dimension: 166*73*83mm
Weight: 105g
Electrical Parameters ESD: ±8KV (Air)/±4KV (Contact)
Input Voltage: 5V
I/O Interfaces: USB/RS232/Button Trigger
Performance Parameters Sensor Resolution: 640*480/1280*800
Illumination: White Lighting
Aiming: LED/Laser
Barcode Resolution: Min. 3mil
FOV: 57.6°(O)/46.6°(H)/36.8°(V)
Barcode Contrast: ≥25% Print Contrast
Scan Angles: Tilt ±60°/Rotation 360°/Skew ±60°
Reading Indicator: LED Light
Reading Range 13mil EAN13: 50-230mm
15mil QR Code: 30-130mm
Environmental Parameters Drop Test: 1.2m Steel Plate Drop/6,000*10cm Micro Drops
Drum Test: 300*0.5m Tumbles
Protection Level: IP42
Key Life: 3,000,000 Cycles
Ambient Light: 0-100,000lux
Humidity: 5%-95%
Temperature: Operating -20~50℃/Storage -40~70℃
Decoding Capability 2D Codes: UCC Composite/Aztec (8 Types Total)
1D Codes: EAN/UPC/GS1 DataBar (16 Types Total)
Postal Codes: Australian Post/British Post (10 Types Total)
Stacked Codes: EAN/JAN Composites/GS1 DataBar (9 Types Total)
