HE200BT High-Resolution Dual-Mode Wireless Barcode Scanner with 1.5m Drop Resistance for Industrial Use
HE200BT High-Resolution Dual-Mode Wireless Barcode Scanner with 1.5m Drop Resistance for Industrial Use
HE200BT High-Resolution Dual-Mode Wireless Barcode Scanner with 1.5m Drop Resistance for Industrial Use
HE200BT High-Resolution Dual-Mode Wireless Barcode Scanner with 1.5m Drop Resistance for Industrial Use
HE200BT High-Resolution Dual-Mode Wireless Barcode Scanner with 1.5m Drop Resistance for Industrial Use
HE200BT High-Resolution Dual-Mode Wireless Barcode Scanner with 1.5m Drop Resistance for Industrial Use
Specifications
Brand Name :
SR
Model Number :
HE200BT
Place of Origin :
China
MOQ :
10PCS
Price :
13-20usd
Payment Terms :
L/C,T/T
Supply Ability :
4000 pcs/day
Delivery Time :
5 working days
Packaging Details :
corrugated paper box
Battery :
2600mAh; Removable battery
Reading Angle :
Tilt ±60°, Rotation ±360°, Skew ±60°
Reading Contrast :
≥15%
Storage Temperature :
-20℃~70℃
Operating Temperature :
-10℃~50℃
Standby Current :
180mA@5V
Operating Current :
320mA@5V
Operating Voltage :
DC5V±10%
Description
HE200BT Industrial-Grade Wireless Barcode Scanner
HE200BT Wireless High-Resolution Barcode Scanner, tailor-made for industrial-grade data collection requirements. Equipped with a high-sensitivity scanning engine and a high-definition sensing system, it enables fast and accurate barcode recognition, helping multiple industries optimize operational processes and efficiently improve productivity.
Key Features
  • Dual-mode wireless communication (Bluetooth 4.0 and 433MHz)
  • Extended transmission range: 200m (433MHz) or 20m (Bluetooth)
  • High-resolution monochrome imaging CMOS sensor
  • Removable 2600mAh battery with over 8 hours continuous scanning
  • Rugged construction withstands 1.5m drops
  • Comprehensive 1D and 2D barcode symbology support
Technical Specifications
Scanning Performance
Image Sensor Monochrome Imaging CMOS
Pixel 1056*1248
Shutter Global Exposure
Illumination White LED (Red/Blue LED optional)
Aiming Red Line LED
Field of View Angle Horizontal 40°, Vertical 31°
Supported Symbologies (2D) Aztec Code, Han Xin Code, Data Matrix, MaxiCode, QR Code, Micro QR, MQR, Dot Code, Grid Matrix, Codablock A, Codablock F, PDF417, Micro PDF417
Supported Symbologies (1D) Codabar, Code11, Code128, ISBT128, Code32, Code39, TLC39, Code93/93i, BC412, UK Plessey, Anker Plessey, EAN-13, EAN-8, GS1, MSI, Telepen, Pharma, PatchCode, UPC-A, UPC-E
Reading Precision ≥3mil
Reading Contrast ≥15%
Reading Angle Tilt ±60°, Rotation ±360°, Skew ±60°
Mechanical/Electrical Performance
Wireless Frequency Band 433MHz/Bluetooth 4.0 Dual Mode
Wireless Communication Distance 433MHz: 200m in open area; Bluetooth: 20m in open area
LCD Display (Optional) Barcode content display, battery level display, basic configuration
Battery 2600mAh; Removable battery
Charging Time 4~6 hours
Continuous Scanning Time >8 hours (at 1 scan per second)
Storage Capacity (Storage Mode) >5000 barcodes
Base Communication Interface USB or RS232
Prompt Method LCD display, LED (non-LCD version), buzzer, vibration
Dimension Scanner: 21176100mm; Base: 26210166mm
Weight Scanner: 400g; Base: 350g
Operating Voltage DC5V±10%
Operating Current 320mA@5V
Standby Current 180mA@5V
Environmental Parameters
Operating Temperature -10℃~50℃
Storage Temperature -20℃~70℃
Relative Humidity 5%~95% (no condensation)
Drop Resistance Withstands 50 drops from 1.5m height in air
Ambient Illumination 0~100000LUX

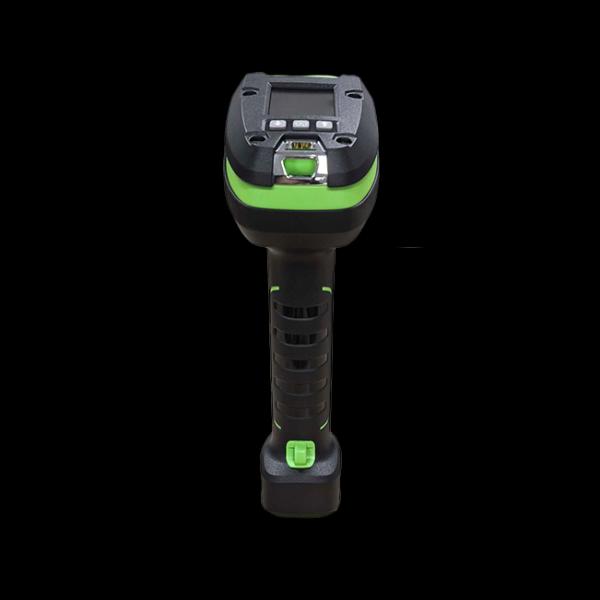

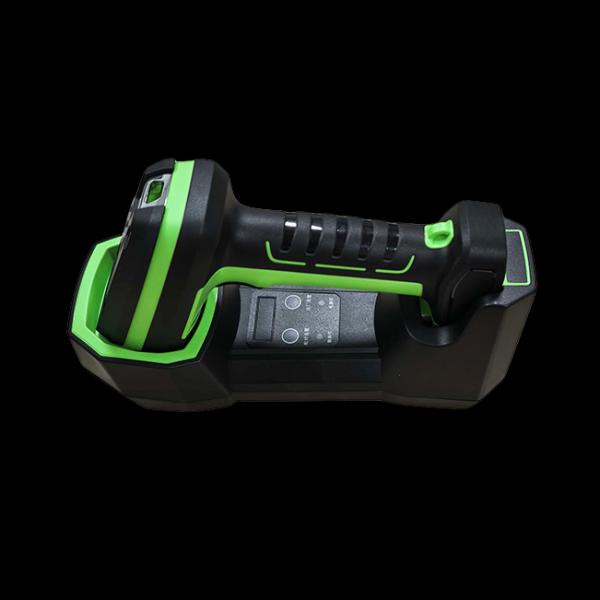

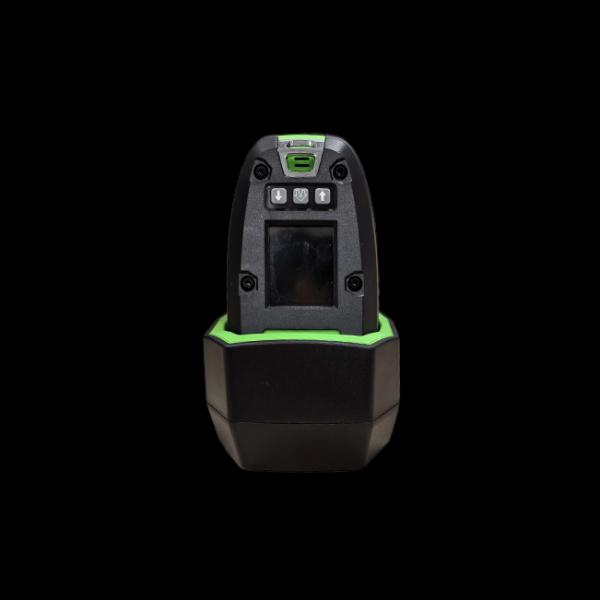

Product Images
HE200BT High-Resolution Dual-Mode Wireless Barcode Scanner with 1.5m Drop Resistance for Industrial Use
