Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Embedded Fixed Barcode Reader USB Mini Bar Code Scanner 5V 3.3V For Payment Kiosk
Specifications
Brand Name :
YJFIRST
Model Number :
YJ-ES902
Certification :
CE, ROHS, FCC, IEC, FDA
Place of Origin :
Guangdong, China
MOQ :
1Pcs
Price :
$17
Payment Terms :
T/T
Supply Ability :
20000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
Gift box
Product name :
Fixed Barcode Reader
Scan Mode :
Automatic Induction Scanning
Barcodes :
1D & 2D
Color :
white
Trigger Mode :
Auto-induction,Continuous
Warranty :
1years
Description

Embedded Mini Bar Code Scanner Qr Code Scanner Barcode 2d Usb Barcode Scanner Module for Payment Kiosk

Unmanned Supermarket

Product introduction

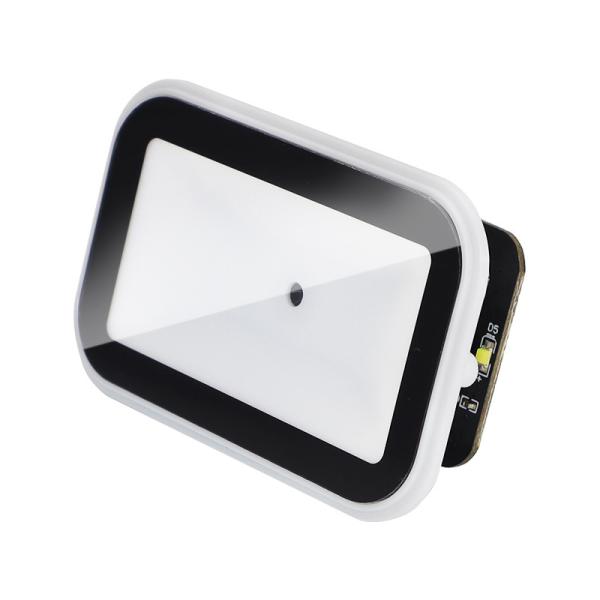

An embedded barcode scanner is a compact, integrated scanning module designed to be built directly into host devices or

systems (such as self-service kiosks, industrial automation equipment, medical devices, or mobile terminals). Unlike handheld

or standalone scanners, it functions as a permanent component, enabling seamless barcode reading without requiring external

peripherals.

Features

  • Auto-triggering (motion sensor, command-based) & multi-code batch scanning.

  • Onboard data parsing (outputs text/JSON) with optional cloud synchronization.

  • Energy-efficient designs (<1W) for battery-powered devices (handheld terminals, IoT edge devices).

  • Tailored housings, scan ranges, or add-ons (RFID, OCR, headset compatibility).

  • Industry-specific compliance (FDA for healthcare, IEC for industrial use).

Parameter

Collection capacity

Method of collection

Imaging, CMOS sensor

picking rate

1 / 60 second

Field of view Angle

Horizontal 62°, vertical 48.5°

joggle

4 Pin cable socket: USB KBW

4PIN cable socket: serial port TTL232 (5V or 3.3V)

scan pattern

Command mode/sensing mode/trigger mode

Read the success message

LED and buzzer

Data cable (optional)

4PIN straight line

External expansion interface

suona ,LED

enviromental parameter

working temperature

-20℃ ~ 60℃

storage temperature

-20℃ ~ 70℃

humidity

Relative humidity 5% ~ 95% (no condensation)

ambient light

Max.100,000 Lux

Electrical parameters

input voltage

5V or 3.3V

working current

125mA (no voice broadcast) / 450mA (with voice broadcast)

Wait for the electromotive force

85mA
FAQ
Q1. Are you a manufacturer?
Yes, our factory is located in Shenzhen.
Q2. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q3.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days
for mass production after receipt of payments .
Q4. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q5. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be credit in formal order. Most of samples are
in stock, it takes 3-6 days by express delivery.
