Specifications
private mold :
NO
products status :
Stock
type :
Barcode Scanner
scan element type :
CMOS
colour depth :
36 Bit
interface type :
usb
max paper size :
A4
optical resolution :
Optical Resolution: 4mil
Brand Name :
WCMI
Place of Origin :
Tianjin, China
warranty(year) :
15Months
after-sales service :
Return and Replacement, Others, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support
color :
Black
Product name :
Barcode Scanner Handheld
Certification :
CE,RoHS,FCC
Interface :
USB
Light source :
White LED Red LED
Scan Mode :
Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
Scan Angle :
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Sensor :
640 X 480 CMOS @ 30fps
Depth of Field :
Code39: (5mil) EAN13:(15mil) QR:(15mil)
Dimension :
138.18mm x 101.51mm x 63mm
Weight :
0.2
Description
Product Description

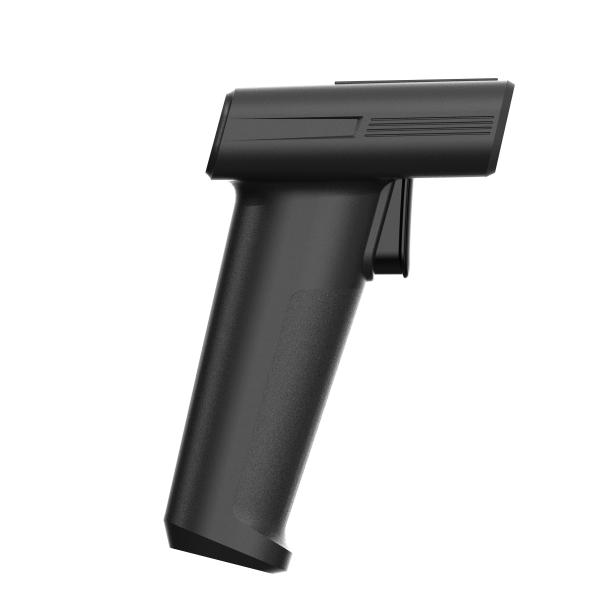

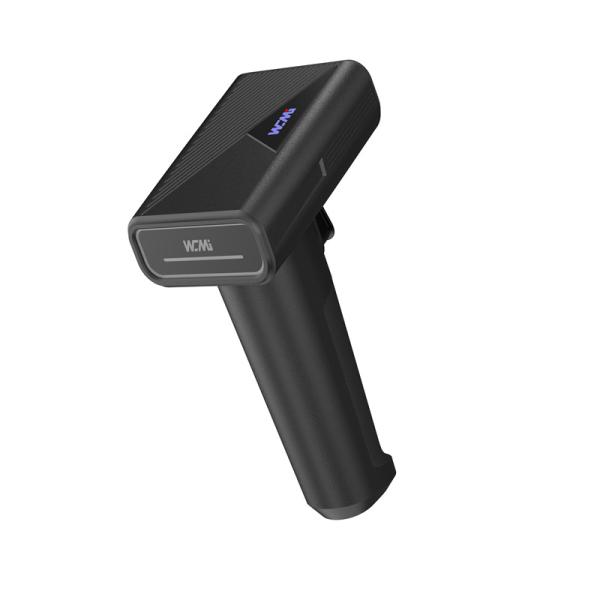

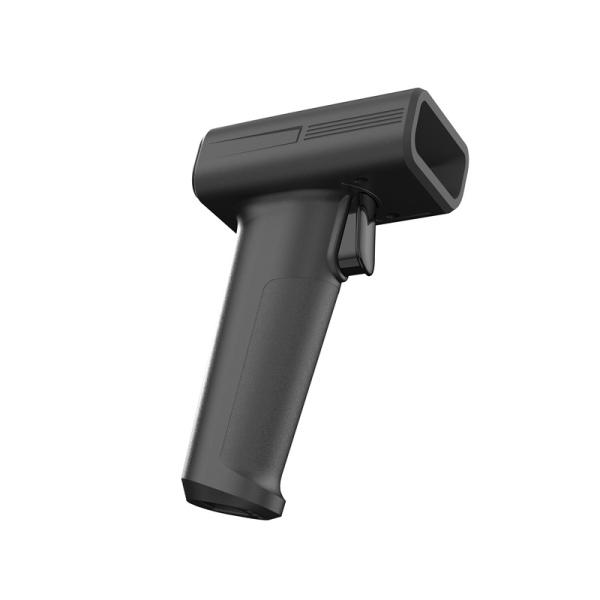

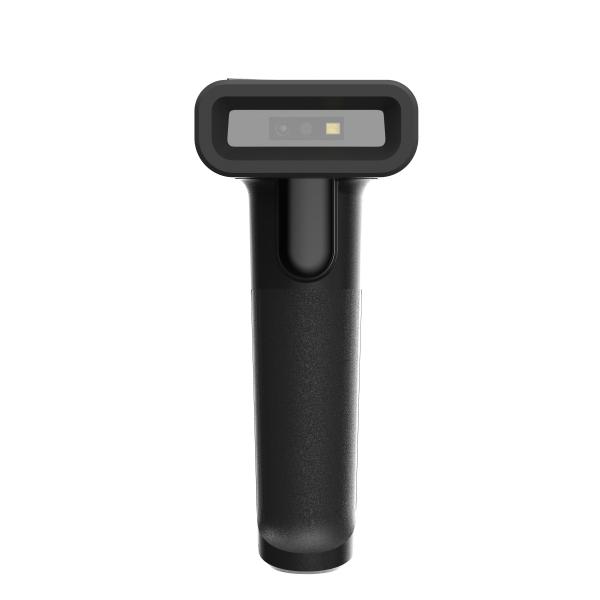

SH9130 is a wireless handheld barcode scanner with a minimum 4mil identification density.The product has excellent paper and screen barcode scanning performance. The lighting can be customized according to requirements,it supports scan code buzzer feedback and vibration feedback.It can quickly read fuzzy, damaged, reversed, color, incomplete 1D or 2D barcode, besides, it can work in a wide range of temperature and humidity under various lighting environments (including completely dark environments).With a high-speed camera optical technology, which is suitable for smart scenarios such as restaurant, supermarket, hotel, governments and so on.
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
Specification
Product Parameters





General
Type
Handheld Barcode Scanner
Product model
SH9130
Brand Name
WCMI
Products Status
Stock
Place of Origin
Tianjin,China
Private Model
Yes
Warranty(Year)
15 months
After-sales Service
Return and Replacement; Free spare parts
Certification
CE、RoHS、FCC
Language Supported
English/Customized








Scan code performance
Image (Pixels) Sensor
640 X 480 CMOS @ 30fps
Light Source
Fill Light: White 6500K LED / Aiming Light: Red LED
View Angle
Horizontal 32°, Vertical 24°



Decoding capability
2D: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、
Code128、Code39、Code93、CodaBar 、Interleaved 2
of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI
Plessey 、RSS-14、RSS-Expand、RSS-Limited、
Standard 2 of 5、Code 16K、Plessey、ChinaPost

Depth of Field
Code39: 40~105mm （5mil）
EAN13: 40~280 mm （13mil）
CODE128: 45~370 mm （15mil）QR:20-210mm(15mil)
Scan Angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Scan Mode
Continuous mode, Induction mode, Manual mode, Command-Triggered Mode
Precisions
1d ≥4mil / 2d ≥10mil
Symbol Contrast
≥15%



Physical Parameters
Weight
<200g
Dimensions
138.18mm x 101.51mm x 63mm
Interface
USB
Prompt Mode
LED prompt，Vibration motor and buzzer
Voltage
DC+5V ±5%
Line Length
1.8m
Current
320mA
Environmental Parameter
Operating temperature
-20℃ ~ 60℃
Storage temperature
-40℃ ~ 70℃
Operating Humidity
5%RH~95%RH (Non-condensing)
Company Profile
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture

Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. is one of the leading professional R&D manufacturers for barcode scanning products in China. Our company is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it. The company has more than 50 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors.
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
Packing & Delivery
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
Certifications
WCMI Wireless Barcode Scanner Hand Free Low Price bar Code Scanner Wireless Handheld Portable Direct Factory China Manufacture
FAQ
\uD83C\uDD9A Is OEM or ODM available?
Yes. We are the factory directly. We can make it as your requirement.
\uD83C\uDD9A What’s the warranty policy for the barcode scanners?
We provide 2 year maintenance warranties. During warranty, free spare parts if necessary for replacement or new barcode scanners replacement in next order.
\uD83C\uDD9AWhy so competitive?
We have a professional R & D team and technical team and have a large domestic market. What's more, we have mature technology to save costs.
\uD83C\uDD9AHow to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
\uD83C\uDD9AHow about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by government. Many technical and design patents in different professional fields approved.
