Specifications
private mold :
Yes
products status :
Stock
type :
Barcode Scanner
scan element type :
CMOS
colour depth :
32 Bit
interface type :
usb
max paper size :
A4
optical resolution :
4mil
Brand Name :
WCMi
Place of Origin :
China
warranty(year) :
2-Year
after-sales service :
Return and Replacement, Others, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support
software development kit (sdk) :
Yes
color :
Black
Product name :
Grenn Pass Barcode Scanner Box
Precisions :
1d ≥5mil / 2d ≥10mil
Screen :
2.4 inch color screen(optional)
Image (Pixels) Sensor :
640 X 480 CMOS @ 30fps
NFC Distence :
ID Card:0-3cm, Other cards: 0-5cm(optional)
Decoding capability :
Healthy barcode /Body temperature/IC
Dimensions :
80mm x 135mm x 33mm
Interface :
USB(TypeC), Switch
Scan Code Feedback :
voice broadcast(Max 115dB,)Red,Green,Yellow three light indication
Storage temperature :
-20℃ ~ 60℃
Description

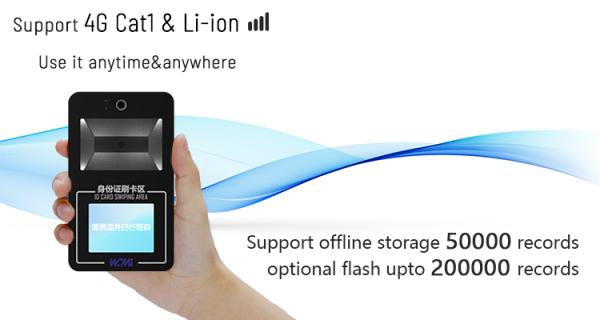

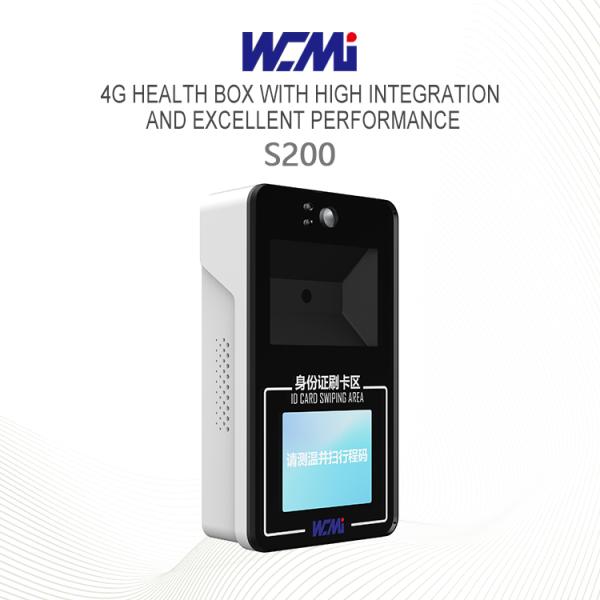

S200 is a 4G green pass health box with high integration and excellent performance, which is used to scan health codes and ID cards in public places such as shopping malls, hospitals, pharmacies, subway stations, and etc. Optional battery, temperaturemeasurement function, screen and card swipe function.Supports 4G data download and upload
Product Description
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
Product Parameters




General
Type
Grenn Pass Barcode Scanner Box
Product model
S200
Brand Name
WCMI
Products Status
Stock
Place of Origin
Tianjin,China
Private Model
Yes
Warranty(Year)
15 months
After-sales Service
Return and Replacement; Free spare parts
Certification
CE、RoHS、FCC
Language Supported
English/Customized



Scan code performance
Image (Pixels) Sensor
640 X 480 CMOS @ 30fps
Screen
2.4 inch color screen（optional）
View Angle
Horizontal 67.4°, Vertical 56° FOV85°
Decoding capability
Healthy barcode /Body temperature/IC
NFC Distence
ID Card：0-3cm, Other cards: 0-5cm（optional）
Scan Angle
Rotation: 360°, Pitch: ±60°, Deflection: ±60°
Precisions
1d ≥5mil / 2d ≥10mil
Symbol Contrast
≥15%

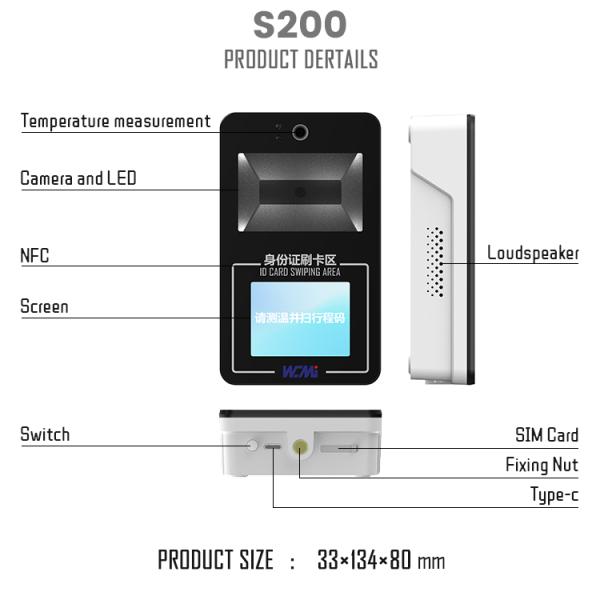

Physical Parameters
Scan Code Feedback
Speaker voice broadcast（Max 115dB,)Red,Green,Yellow three light indication
Weight
<200g
Dimensions
80mm x 135mm x 33mm
Interface
USB(TypeC), Switch
Prompt Mode
Red,Green,Yellow LED prompt，and Buzzer
Offline Storage
Offline Storage
Line Length
1.8m
Network
4G-Cat1 FDD-LTE (Frequency Range：B1/B3/B5/B8) TDD-LTE (Frequency Range：B34/B38/B39/B40/B41)
Voltage
5V±10%
Usage Time
14h
Current
<700mA
Environmental Parameter
Operating temperature
-20℃ ~ 60℃
Storage temperature
-40℃ ~ 70℃
Operating Humidity
5%RH~95%RH (Non-condensing)
Related Products
Certifications
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
Our Advantages
Tianjin wavecreating Micro Intelligennt Technology CO., Ltd. continuously insist on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency and consistently strive to improve it.
The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors. Currently，It has obtained 7 invention patents, 4 utility model patents and 10 appearance patents. The company has passed ISO9001 and ISO1400 1 certifications, all of the products can meet RoSH, REACH, CE, and FCC certification requirements, It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service.
Company Introduction
Tianjin Wavecreating Microelectronics Limited Company is one of the leading professional R&D manufacturers for barcode scanning products in China. It is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan.
The company's main products: wired and wireless barcode scanner, omni-directional barcode scanner, desktop barcode scanner, access control products, wearable barcode scanning product，barcode scanner engine, algorithm licenses, etc. It can provide you with related solutions and services from chips to finished products，improve the efficiency and quality of processes in retail, manufacturing, transportation and logistics, site security, healthcare and service industries.
We sincerely look forward to win-win cooperation with you!
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
Packing&Shipping
A Portable 2.4 Inch Screen 1D/2D Barcode Scanner 4G Cat1 Qr Code Reader Barcode Scanner 2D Bar Code Reader
FAQ
1,Do you have the items in stock?
The most of products are in stock.We can send the goods out within 7 days after payment received.For the goods are out of stock,production time is about 7-10 days.
2. What’s the warranty policy for the barcode scanners? We provide 24 months maintenance warranties. During warranty, free and quick advice for repairing, free spare parts if it is necessary for replacement or new barcode scanners replacement in the next order.

3,If the goods are damaged badly,who is responsible for it?
We will be responsible for the damaged goods when it is damaged during transport,and we can exchange the new goods for you.

4,Can you make OEM or ODM for products?
OEM and ODM products is available for customer,as long as customer meet the MOQ.


5,What about MOQ?
For production,we can accept sample order firstly,so there is not limit for MOQ

6,Besides the English language,do your printers support other languages?what operation system they backup?
Yes,our printer not only supports English language,but also Russian,Spanish,Portuguese ect. 48 different languages available,and it backups IOS,Android,Windows,Linux,Opos operation systems.
7.why should you buy from us not from other suppliers?
We have much experience in the development barcode scanner and all in one scanning products. Our products range incluseds wired and wireless barcode scanner, omni-directional barcode scanner,barcode scanner engine, algorithm
licenses . For the small quantity project, we are availble for the fast feedback and customized.

8,What warranty and after-sale service do you offer?
Each production will have two year (24 months) warranty. Free components will be offered for repair in warranty period,if the issue caused by non-artificial damages.
