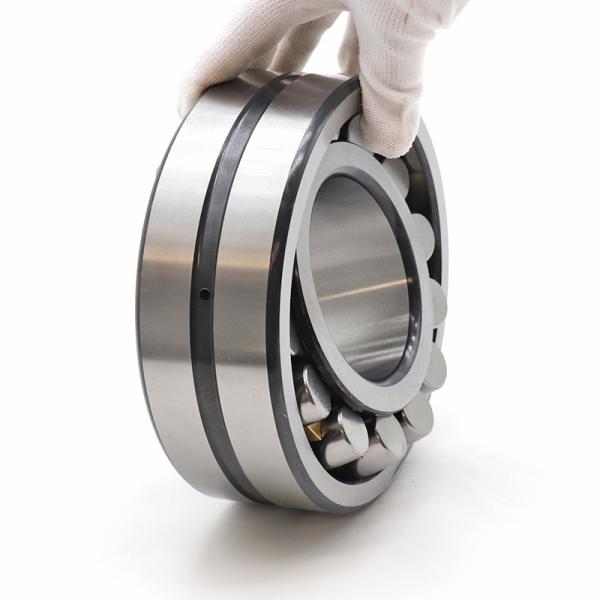

23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing
23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing
23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing
23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing
23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing
23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing
23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing
23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing
Specifications
Brand Name :
GQZ or FAG
Model Number :
23030CA/W33
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
$10 / pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 Sets per month
Delivery Time :
3-5 working days
Packaging Details :
in individual packing box
Product :
23030CA/W33 Spherical Roller Bearing
Material :
GCr15 Chrome Steel
Hardness :
HRC58-62
Precision Rating :
P0 P6 P5 P4
Number of Row :
Double row
Size :
150x225x56mm
Sample :
avaliable
Description

23030CAW33 Spherical Roller Bearing 23030 CA W33 Bearing 150x225x56mm 23030CA/W33 Double Row Bearing

This type of bearing is equipped with spherical rollers between the spherical raceway outer ring and the double raceway inner ring. According to the different internal structures, CA, CC, MB,E Four types, since the arc center of the outer ring raceway is consistent with the bearing center, it has the self-aligning performance, so it can automatically adjust the shaft center misalignment caused by the deflection or misalignment of the shaft or the shell, and can withstand radial loads and Bidirectional axial load.

Main uses of spherical roller bearings: papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox seats, rolling mill rollers, crushers, vibrating screens, printing machinery, woodworking machinery, various industrial reducers, vertical Self-aligning bearing with seat.



For more products please contact us:

Bearing No.
Dimensions(mm)
Weight
d
D
T
kg
22208CA/C3W33
40
80
23
0.54
22209CA/C3W33
45
85
23
0.58
22210CA/C3W33
50
90
23
0.62
22211CA/C3W33
55
100
25
0.84
22212CA/C3W33
60
110
28
1.2
22213CA/C3W33
65
120
31
1.6
22214CA/C3W33
70
125
31
1.7
22215CA/C3W33
75
130
31
1.8
22216CA/C3W33
80
140
33
2.2
22217CA/C3W33
85
150
36
2.7
22218CA/C3W33
90
160
40
3.28
22219CA/C3W33
95
170
43
4.1
22220CA/C3W33
100
180
46
5
22222CA/C3W33
110
200
53
7.2
22224CA/C3W33
120
215
58
8.9
22226CA/C3W33
130
230
64
11.2
22228CA/C3W33
140
250
68
14.5
22230CA/C3W33
150
270
73
18.6
22308CA/C3W33
40
90
33
1
22309CA/C3W33
45
100
36
1.38
22310CA/C3W33
50
110
40
1.85
22311CA/C3W33
55
120
43
2.35
22312CA/C3W33
60
130
46
2.95
22313CA/C3W33
65
140
48
3.55
22314CA/C3W33
70
150
51
4.4
22315CA/C3W33
75
160
55
5.25
22316CA/C3W33
80
170
58
6.39
22317CA/C3W33
85
180
60
7.25
22318CA/C3W33
90
190
64
8.6
22319CA/C3W33
95
200
67
10.1
22320CA/C3W33
100
215
73
13.4
22322CA/C3W33
110
240
80
18
22324CA/C3W33
120
260
86
22
22326CA/C3W33
130
280
93
28.5
Bearing No.
Dimensions(mm)
Weight
d
D
T
KG
21306CA/C3W33
30
72
19
0.412
21307CA/C3W33
35
80
21
0.542
21308CA/C3W33
40
90
23
0.743
21309CA/C3W33
45
100
25
1
21310CA/C3W33
50
110
27
1.3
21311CA/C3W33
55
120
29
1.65
21312CA/C3W33
60
130
31
2.08
21313CA/C3W33
65
140
33
2.57
21314CA/C3W33
70
150
35
3.11
21315CA/C3W33
75
160
37
3.76
21316CA/C3W33
80
170
39
4.47
21322CA/C3W33
110
240
50
11.8
23024CA/C3W33
120
180
46
3.98
23026CA/C3W33
130
200
52
5.85
23028CA/C3W33
140
210
53
6.31
23030CA/C3W33
150
225
56
7.74
23032CA/C3W33
160
240
60
9.43
23034CA/C3W33
170
260
67
12.8
23036CA/C3W33
180
280
74
16.9
23038CA/C3W33
190
290
75
17.7
23040CA/C3W33
200
310
82
22.7
23044CA/C3W33
220
340
90
29.7
23048CA/C3W33
240
360
92
32.4
24024CA/C3W33
120
180
60
5.05
24026CA/C3W33
130
200
69
7.55
24028CA/C3W33
140
210
69
8.01
24030CA/C3W33
150
225
75
10.1
24032CA/C3W33
160
240
80
12.2
24034CA/C3W33
170
260
90
16.7
24036CA/C3W33
180
280
100
22.1
24038CA/C3W33
190
290
100
23
24040CA/C3W33
200
310
109
29.3
24044CA/C3W33
220
340
118
38.1
24048CA/C3W33
240
360
118
40.8
