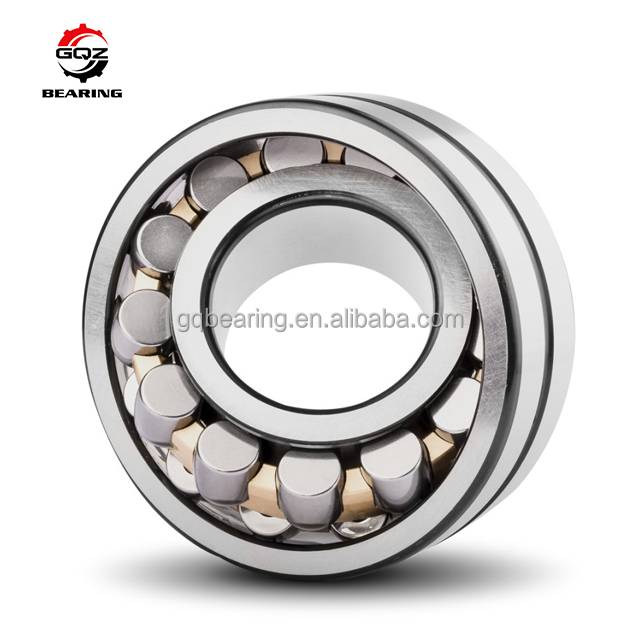

23032CA/W33 is double-row symmetrical spherical roller bearing equipped with machined solid brass cage, matched with W33 lubriion groove and 3 oil holes on outer ring. It features outstanding self-aligning performance, ultra-large radial load capacity and can bear bidirectional axial loads simultaneously. The W33 design allows convenient online grease refilling without disassembly, ideal for heavy-load equipment suffering shaft deflection, impact vibration and installation misalignment.

Formal quotation will be sent within 24 hours upon your inquiry.

Model: 23032CA/W33

Dimensions: d160 mm, D240 mm, B60 mm, min chamfer r=2.1 mm

Net weight: approx 9.7–10.0 kg

Dynamic load rating Cr: 490–566 kN

Static load rating Cor: 875–917 kN

Limiting speed: Grease lubriion 1700–1800 rpm, Oil lubriion 2200 rpm

Structure: Double row symmetrical spherical rollers, CA solid machined brass cage, outer ring with W33 lubriion groove

Material: GCr15 high carbon chrome bearing steel, high-strength brass cage

Clearance: Standard C0 clearance; C2/C3/C4 enlarged clearance optional

Complete dimension drawings and load performance data available on request.

1. Double-row symmetrical roller layout delivers superior radial bearing capacity and stable operation under continuous heavy shock loads
2. CA solid machined brass cage owns high rigidity and heat resistance, hardly deformed under low-speed heavy-load high-temperature working conditions
3. W33 integrated lubriion groove and oil holes realize uniform grease circulation, supporting real-time supplementary lubriion on machine
4. Excellent self-aligning property automatically compensates shaft bending, assembly deviation and housing deformation
5. Balanced structure bears both heavy radial load and bidirectional axial force at the same time
6. Standard ISO metric dimensions, fully interchangeable with same-spec spherical roller bearings
7. Customizable options: special internal clearance, high-temperature heat treatment, OEM laser marking, double-sided dust-proof seals
   Effectively reduce running vibration, roller abrasion and frequent shutdown maintenance for heavy industrial equipment.

• Mining crushers, ball mills, vibrating screens and mineral conveying heavy-duty equipment
• Large industrial gearboxes, speed reducers and high-power driving motors
• Cement production rotary kilns, vertical roller mills and industrial large fans
• Steel plant rolling machinery, heavy hydraulic equipment and metallurgical transmission assemblies
• Paper calender rollers, textile printing large rotary roller devices
• General heavy machinery with heavy load, vibration and misalignment operating conditions

25 years professional manufacturer of spherical roller bearings

Products exported to over 50 countries worldwide

Strict full inspection on raw material hardness, roller surface finish, load capacity and self-aligning performance before delivery

24-hour professional technical support for bearing clearance selection and installation matching guidance

Sufficient bulk stock for mining, cement, motor and heavy machinery distributors

We provide stable dimensional accuracy, shock-resistant heavy-load performance and long-term cooperative support.

GCr15 raw material chemical composition and hardness inspection

Complete quenching & tempering heat stabilization treatment

Superfinishing grinding for inner/outer ring raceways and spherical rollers

Precision machining and deburring for solid brass cage

Full dimensional tolerance, static & dynamic load and rotational smoothness performance test

If you need 23032CA/W33 brass cage spherical roller bearings:

Send inquiry to obtain below supports:

• Quick formal quotation within 24 hours
• Professional clearance matching suggestion for different working temperatures and loads
• Custom sealed structure and high-temperature resistant lubriion solutions
• Competitive factory direct price
  Contact our sales team for full technical datasheets and formal offer.
