Specifications
Brand Name :
GQZ or Other famous brand
Model Number :
BAA-0004
Certification :
ISO9001,ROHS
Place of Origin :
China
MOQ :
5pcs
Supply Ability :
10000/month
Packaging Details :
Plastic Bag+cox+carton
Bore type :
Cylindrical
Basic dynamic load rating :
47.5 kN
Basic static load rating :
37.5 kN
Weight :
2.2KG
Shaft diameter :
28 mm
Material, bearing :
Bearing steel
Application :
For individual tillage disc application
Description

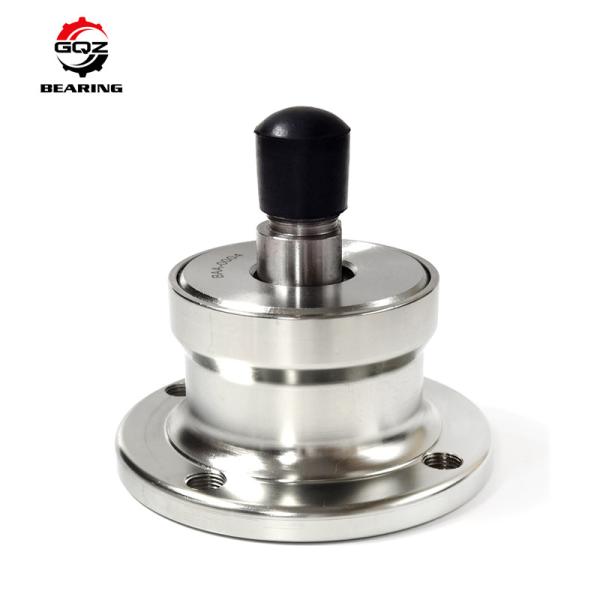

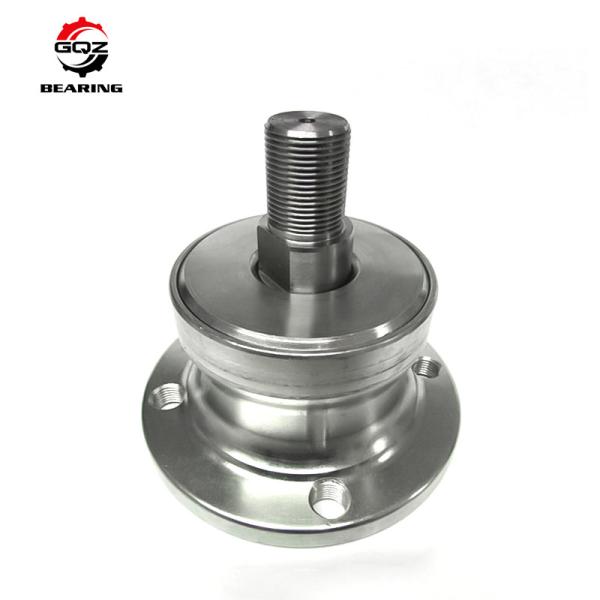

Agricultural Bearing BAA-0004 Wheel Hub Bearing BAA0004 For Harrow Disc China Quality

Agri Hubs are maintenance-free, sealed bearing units, providing major advantages for both original equipment manufacturers and final customers. Prepared with grease and sealed, Agri Hubs do not need grease refill and reduce the risk for grease spillage. Thanks to their high stiffness, the risk for disc tilt is minimized and machine reliability is further improved.

  • Easy and quick to mount and remove
  • Maintenance-free
  • Greased for life
  • Improved machine reliability
Products Description
Applicable Industries
For individual tillage disc application
Place of Origin
China
Type
BALL
Model Number
BAA-0004
Brand Name
GQZ or OEM
Weight
2.2KG
Material
Chrome Steel
Outside diameter
117mm
Bore size
28mm
Feature
Long Life
Certificate
ISO9001:2008
Vibration
Z1V1 Z2V2 Z3V3
Precision
P0,P4,P6
Service
OEM Service
Stock
Rich

Package
Original Packing

Detailed Images

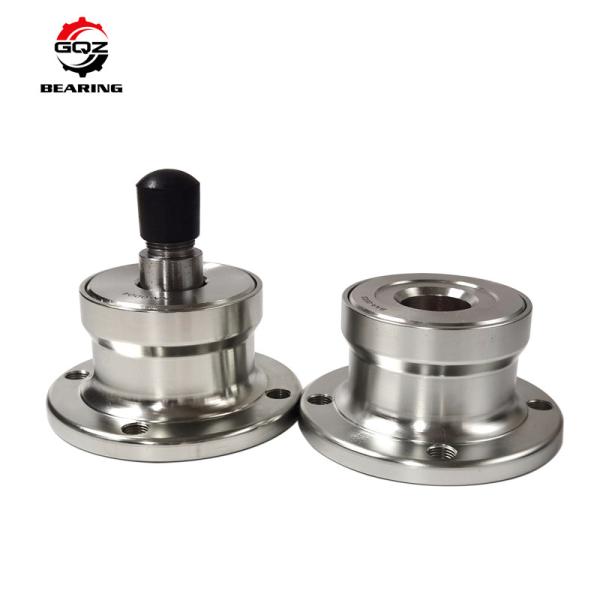

Agricultural BAA-0004 Wheel Hub Bearing BAA0004 For Individual Tillage DiscAgricultural BAA-0004 Wheel Hub Bearing BAA0004 For Individual Tillage Disc

Recommend Products

Cross reference No.Holes Dimension(mm) Basic load rating Type Disc diameter
D d J L1 L Gf Gs Cr(KN) Cor(KN)
BAA-0003A 4 117 28 98 60 M12*1.25 47.5 37.5 Type C From 500 to 610mm
BAA-0004 4 117 28 98 60 105 M12*1.25 M24*2.0 47.5 37.5 Type C From 500 to 610mm
BAA-0005 4 117 28 98 60 102 M12*1.25 M22*1.5 47.5 37.5 Type C From 500 to 610mm
BAA-0006 6 117 28 98 60 102 M12*1.25 M22*1.5 47.5 37.5 Type C From 500 to 610mm

AHU34120B-01
6 120 34 100 52 71.45 M10*1.5 M20*2.5 46.1 50.9 Type C From 500 to 610mm

AHU28140A-01
5 140 28 108 89 95 M12*1.25 M22*1.5 46.1 50.9 Type A From 500 to 700mm

BAA-0012
5 117 28 98 60 102 M12*1.25 M22*1.5 47.5 37.5 Type C From 500 to 610mm

BAA-0013
6 117 30 98 60 105 M12*1.25 M24*2.0 47.5 37.5 Type C From 500 to 610mm

BAA-0020
4 117 28 98 60 102 M12*1.25 7/8-14UNF 47.5 37.5 Type C From 500 to 610mm

AHU30140A-01
5 140 35 112 89 98.45 M12*1.5 M24*2.0 46.1 50.9 Type A From 500 to 700mm
Packaging & Shipping

Agricultural BAA-0004 Wheel Hub Bearing BAA0004 For Individual Tillage Disc

Company Introduction

Agricultural BAA-0004 Wheel Hub Bearing BAA0004 For Individual Tillage DiscAgricultural BAA-0004 Wheel Hub Bearing BAA0004 For Individual Tillage DiscAgricultural BAA-0004 Wheel Hub Bearing BAA0004 For Individual Tillage DiscAgricultural BAA-0004 Wheel Hub Bearing BAA0004 For Individual Tillage Disc

FAQ

How should maintenance routines be structured for agricultural wheel hub bearings?

Effective maintenance is key to maximizing lifespan and performance.

Inspection Schedules: Establish routine inspection schedules to detect potential issues early.

Re-lubrication Intervals: Determine appropriate intervals for re-lubrication based on usage and operating conditions.

Solution: To maintain agricultural wheel hub bearings effectively:

Develop a comprehensive maintenance schedule including cleaning, inspection, and re-lubrication of agricultural wheel hub bearings.

Maintain detailed records of maintenance activities to track condition and performance over time.

Are there specific considerations for selecting agricultural wheel hub bearings for heavy-duty applications?

Heavy-duty applications require robust solutions for substantial loads and stresses.

Load Capacity: Ensuring selected bearings have adequate load capacity is critical.

Durability: Materials and design features that enhance durability under heavy use are necessary.

Solution: When choosing agricultural wheel hub bearings for heavy-duty applications:

Opt for agricultural wheel hub bearings designed with higher load capacities and made from durable materials.

Consult manufacturers for products tailored to meet specific demands of your application.
