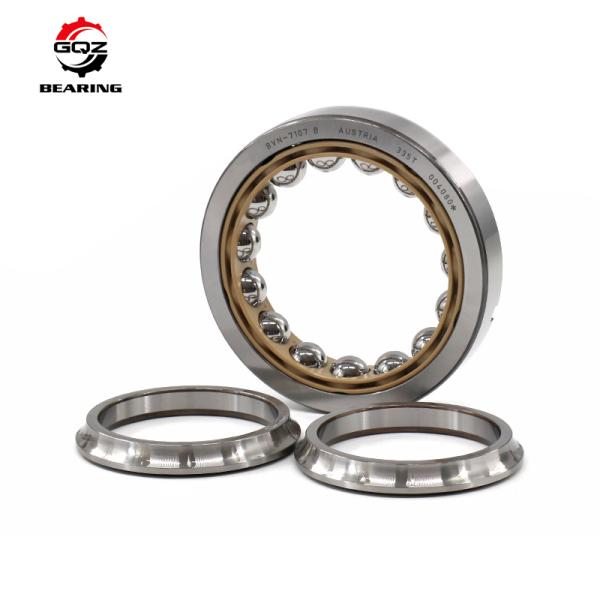

71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle
71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle
71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle
71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle
71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle
71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle
71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle
71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle
Specifications
Model Number :
71814
Bearing Model :
71814
Certifiion :
ISO9001:2015
Supply Ability :
100000 Sets per month
Material :
GCr15 Chrome Bearing Steel
MOQ :
1 PCS
Inner diameter（d） :
70mm
Certification :
ISO9001:2015
Outer diameter（D） :
90mm
Payment Terms :
T/T
Packaging Details :
in individual packing box
Place of Origin :
China
Width（B） :
10mm
Price :
USD 5-20
Brand Name :
GQZ /OEM
Number of row :
Single Row
Delivery Time :
3-5 working days
Description
71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle

71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle

Product Overview
  • 71814 is single row open thin-section angular contact ball bearing. Dimensions 70×90×10mm. It can bear combined radial and unidirectional axial load. Ultra-thin wall design saves installation space, widely applied for precision spindles and compact rotary machinery.

*Need a quick quote? Just send us your bearing model & quantity — we’ll get back to you fast.

Key Specifications
Item Spec
Model 71814
Bearing Type Angular Contact Ball Bearing
Row Type Single Row
Inner Diameter(d) 70 mm
Outer Diameter(D) 90 mm
Width(B) 10 mm
Seal Type Open
Contact Angle 15°
Material Chrome Steel(GCr15)
Cage Material Nylon Cage
Dynamic Load(Cr) 12.2 KN
Static Load(C0r) 14.2 KN
Grease Speed 7500 r/min
Oil Speed 11000 r/min
Weight 0.14 kg
Operating Temperature -20℃ ~ +120℃
Application Machine tool spindle,precision instrument,automation equipment,light load rotary assembly
Main Features
  • Single row angular contact design with 15° contact angle
  • Ultra thin section structure to reduce overall assembly size
  • Nylon cage delivers smooth rotation with low friction
  • Open design for good heat dissipation at high speed
  • GCr15 bearing steel ensures high precision and rigidity
  • Suits compact equipment with limited mounting space
Typical Applications
  • Machine tool spindles
  • Precision measuring instruments
  • Automation rotary assemblies
  • Light-duty high-speed machinery
  • Compact transmission units

*Ready stock. Short lead time. Fast delivery. Send us your bearing list and let’s get started!

Why Choose GQZ Bearing
  • 30 years professional bearing industry experience
  • ISO certified strict quality inspection
  • Flexible OEM & private label customization
  • 3-5 days fast delivery for stocked bearings
  • Full bearing series, universal interchangeable size
  • Factory direct price & reliable after-sales service

71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle

71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle

71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle

71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle

71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle

71814 Angular Contact Ball Bearing 70×90×10mm For Machine Tool Spindle

FAQ

Q1: What is 71814 bearing?
A: 71814 is single row thin-section open angular contact ball bearing.
Q2: What are dimensions of 71814?
A: Dimension 70×90×10mm.
Q3: What is the seal type of 71814?
A: Standard open type without seals.
Q4: What contact angle does 71814 have?
A: It features 15° contact angle.
Q5: What loads can this bearing carry?
A: It bears combined radial load and unidirectional axial load.

*Need custom bearings? Share your drawings, specifications or requirements — we’ll find the right solution for you.
