Specifications
Model Number :
ZKLN1034
Width（B） :
20mm
Certifiion :
ISO9001:2015
Supply Ability :
100000 Sets per month
Material :
GCr15 Chrome Bearing Steel
Price :
USD 5-15
Bearing Model :
ZKLN1034
Payment Terms :
T/T
Packaging Details :
in individual packing box
MOQ :
1 PCS
Number of row :
Double Row
Delivery Time :
3-5 working days
Certification :
ISO9001:2015
Inner diameter（d） :
10mm
Place of Origin :
China
Outer diameter（D） :
34mm
Brand Name :
GQZ /OEM
Seal type :
Double‑sides Lip Seal 2RS
Description
ZKLN1034‑2RS‑PE Double‑row Axial Angular Contact Ball Bearing 10×34×20mm Screw Drive CNC Lead‑screw Support Spare Part

ZKLN1034‑2RS‑PE Double‑row Axial Angular Contact Ball Bearing 10×34×20mm Screw Drive CNC Lead‑screw Support Spare Part

Product Overview

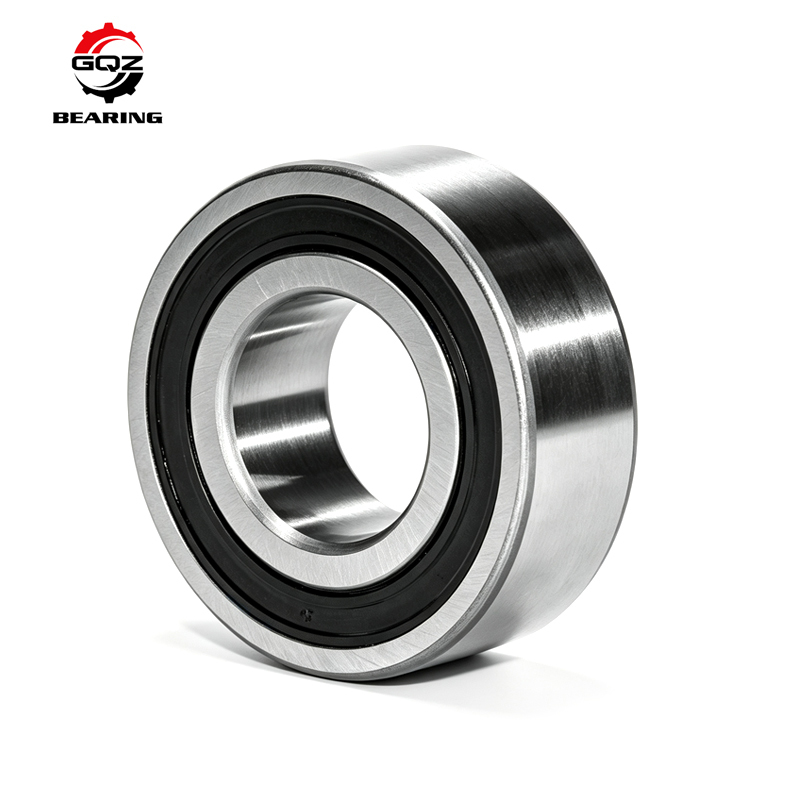

  • ZKLN1034‑2RS‑PE is a double‑row high‑precision axial angular‑contact ball bearing with a 60‑degree contact angle, specially designed for ball‑screw drive supports. Factory pre‑loaded for high axial rigidity, it can withstand bidirectional heavy axial loads. Double‑sided lip seals offer reliable dust‑proof protection, making it ideal for precision feed systems on CNC machine tools and automation equipment.

*Send inquiry to get full technical datasheet and factory price.

Key Specifiions

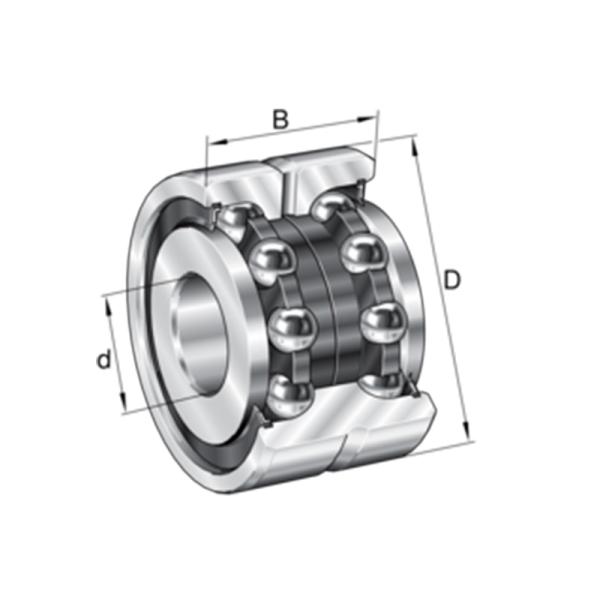

Specification Value
Bearing Model ZKLN1034‑2RS‑PE
Bearing Type Double‑row Axial Angular‑contact Ball Bearing
Inner diameter d 10 mm
Outer diameter D 34 mm
Width B 20 mm
Contact Angle 60°
Minimum Chamfer r 0.3 mm
Minimum Chamfer r1 0.6 mm
Material GCr15 Chrome Bearing Steel
Seal Type Double‑sides Lip Seal 2RS
Precision Grade P5/ABEC‑5
Basic Dynamic Axial Load Ca 13.4 KN
Basic Static Axial Load C0a 18.8 KN
Grease Limiting Speed 8600 rpm
Net Weight 0.10 kg
Recommended Lock Nut ZM10
Main Features
  • 60° contact‑angle structure provides excellent bidirectional axial‑load capacity
  • Pre‑matched internal assembly delivers high axial rigidity and low axial runout
  • Double‑row ball configuration bears heavy axial forces and small radial loads
  • Double‑sided lip seals prevent dust and contaminants entering rolling raceways
  • High‑precision tolerance ensures stable, accurate screw‑shaft rotary performance
  • Compact integrated design simplifies installation without extra preload adjustment
Typical Appliions
  • CNC machine tool lead‑screw supports
  • Precision automation feed drives
  • Testing instrument transmission assemblies
  • Medical precision motion platforms
  • Packaging machinery screw drive units
  • Industrial robot linear actuators
Why Choose GQZ Bearing
  • 30 years professional bearing industry experience
  • ISO certified strict quality inspection
  • Flexible OEM & private label customization
  • 3-5 days fast delivery for stocked bearings
  • Full bearing series, universal interchangeable size
  • Factory direct price & reliable after-sales service

ZKLN1034‑2RS‑PE Double‑row Axial Angular Contact Ball Bearing 10×34×20mm Screw Drive CNC Lead‑screw Support Spare Part

ZKLN1034‑2RS‑PE Double‑row Axial Angular Contact Ball Bearing 10×34×20mm Screw Drive CNC Lead‑screw Support Spare Part

ZKLN1034‑2RS‑PE Double‑row Axial Angular Contact Ball Bearing 10×34×20mm Screw Drive CNC Lead‑screw Support Spare Part

ZKLN1034‑2RS‑PE Double‑row Axial Angular Contact Ball Bearing 10×34×20mm Screw Drive CNC Lead‑screw Support Spare Part

ZKLN1034‑2RS‑PE Double‑row Axial Angular Contact Ball Bearing 10×34×20mm Screw Drive CNC Lead‑screw Support Spare Part

ZKLN1034‑2RS‑PE Double‑row Axial Angular Contact Ball Bearing 10×34×20mm Screw Drive CNC Lead‑screw Support Spare Part

FAQ

Q1: What is ZKLN1034‑2RS‑PE bearing?
A1: It is a double‑row pre‑loaded high‑precision axial angular‑contact ball bearing mainly used for ball‑screw support.

Q2: What loads can ZKLN1034‑2RS‑PE take?
A2: It is designed primarily for heavy bidirectional axial loads, and can accept limited radial loads.

Q3: Does this bearing need extra preload during installation?
A3: No, it is factory‑pre‑matched with defined preload; install it together with the matching ZM10 lock‑nut.

Q4: Can this bearing run in dusty environments?
A4: Yes, double‑sided lip seals provide good dust‑proof performance under normal working conditions.

*Stable stock for single row angular contact bearings, support fast bulk order shipment.
