NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox
NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox
NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox
NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox
NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox
NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox
NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox
NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox
Specifications
Bearing Model :
NJ324E.M1
Model Number :
NJ324E.M1
Inner diameter（d） :
120mm
Payment Terms :
T/T
Bearing Type :
Cylindrical Roller Bearing
Supply Ability :
100000 Sets per month
Outer diameter（D） :
260mm
MOQ :
1 PCS
Delivery Time :
3-5 working days
Material :
GCr15 Chrome Bearing Steel
Price :
USD 20-40
Packaging Details :
in individual packing box
Seal Type :
Open
Brand Name :
GQZ /OEM
Width（B） :
55mm
Certifiion :
ISO9001:2015
Number of row :
Single Row
Place of Origin :
China
Description
NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox

NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox

Product Overview

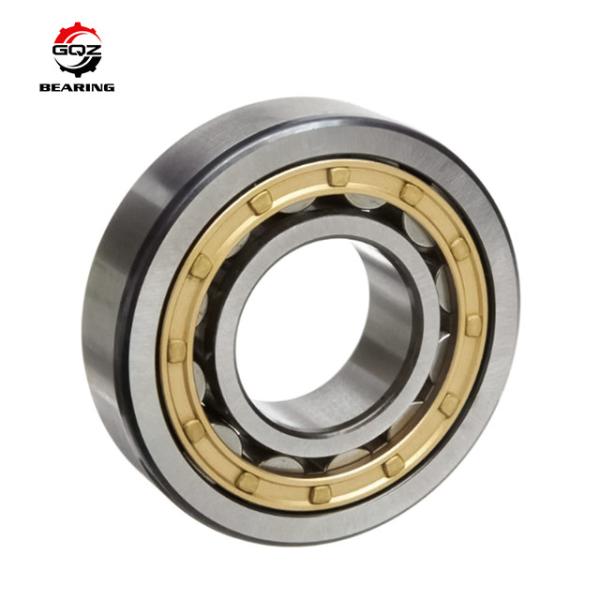

  • NJ324E.M1 is single‑row open‑style cylindrical roller bearing fitted with machined two‑piece brass roller‑guided cage. The upgraded E‑type structure delivers improved load‑carrying capacity. It can withstand heavy radial load and moderate one‑way axial force. Its separable inner‑outer‑ring layout brings easy installation and maintenance, widely applied on heavy‑duty gearboxes, driving motors and mining‑industry equipment.

*Send inquiry to get latest factory price and technical datasheet.

Key Specifiions
Specifiion Value
Bearing Model NJ324E.M1
Bearing Type Cylindrical Roller Bearing
Number of row Single Row
Inner diameter d 120 mm
Outer diameter D 260 mm
Width B 55 mm
Material GCr15 Chrome Bearing Steel
Seal Type Open
Roller Set Diameter Fw 154 mm
Minimum Chamfer r,r1 3 mm
Basic Dynamic Load Cr 610000 N
Basic Static Load C0r 600000 N
Grease Limit Speed 2400 rpm
Oil Limit Speed 2800 rpm
Net Weight 15.4 kg
Retainer Material M1 Machined Brass Cage
Main Features
  • Optimized E‑type structure for enhanced radial load‑bearing capacity
  • Two‑piece machined brass cage with excellent wear‑resistance
  • Accepts moderate unidirectional axial force besides heavy radial loads
  • Separable inner ring and outer ring for convenient assembly
  • Stable‑running property and low noise under continuous heavy‑duty operation
  • Hardened GCr15 steel material for prolonged working lifespan
Typical Appliions
  • Heavy‑duty industrial reduction gearboxes
  • Large‑sized industrial drive electric motors
  • Stone‑crushing and mining processing machinery
  • Metallurgical plant transmission assemblies
  • Bulk‑goods heavy‑duty conveyor equipment
  • Heavy‑duty construction machine drive shafts

*Check matched bearing models to complete your mechanical assembly.

Why Choose GQZ Bearing
  • 30 years professional bearing industry experience
  • ISO certified strict quality inspection
  • Flexible OEM & private label customization
  • 3-5 days fast delivery for stocked bearings
  • Full bearing series, universal interchangeable size
  • Factory direct price & reliable after-sales service

NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox

NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox

NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox

NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox

NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox

NJ324E.M1 Single‑Row Cylindrical Roller Bearing 120*260*55mm Brass Cage For Industrial Gearbox

FAQ
Q1:What loads can the NJ324E.M1 undertake?
A1:It bears huge radial load and suitable moderate one‑direction axial load.
Q2:What does the suffix M1 represent?
A2:M1 stands for two‑part machined brass cage guided by rollers.
Q3:Is this bearing separable?
A3:Yes, its inner ring assembly can be detached from the outer ring.
Q4:What is its raw‑material grade?
A4:The whole bearing adopts durable GCr15 chrome bearing steel.
Q5:Which lubriion mode gains higher rotating speed?
A5:Oil lubriion supports a higher limiting rotating speed than grease lubriion.

*Place your enquiry to check stock availability, bulk‑order discounts and long‑term after‑sales assistance.
