SUS304 Herringbone Mesh Conveyor Belt Stainless Steel Balanced Weave Wire Belt for Food Processing
SUS304 Herringbone Mesh Conveyor Belt Stainless Steel Balanced Weave Wire Belt for Food Processing
SUS304 Herringbone Mesh Conveyor Belt Stainless Steel Balanced Weave Wire Belt for Food Processing
SUS304 Herringbone Mesh Conveyor Belt Stainless Steel Balanced Weave Wire Belt for Food Processing
Specifications
Packaging Details :
Export wooden case with moisture-proof wrapping, 180x120x65cm
Weave Type :
Herringbone Balanced Weave
Supply Ability :
2000 Square Meters per Month
Surface Treatment :
Polished / Pickled
Application :
Food Processing, Blanching, Washing Lines
Load Capacity :
50-100 kg per Square Meter
Certification :
FDA
Payment Terms :
T/T,L/C,Western Union,PayPal
Edge Type :
Welded Edge / Chain Edge
Price :
USD 15-45 / Square Meter
Mesh Opening :
5-25mm Customizable
Belt Width :
100-4000mm Customizable
Maximum Operating Temperature :
750 Degree C
Material :
SUS304 Stainless Steel
Delivery Time :
7-15 working days after deposit
Spiral Wire Diameter :
0.8-2.5mm
Place of Origin :
Hebei, China
Brand Name :
COMESH
MOQ :
1 Square Meter
Connecting Rod Diameter :
1.5-4.0mm
Description

SUS304 Herringbone Mesh Conveyor Belt Stainless Steel Balanced Weave Wire Belt for Food Processing

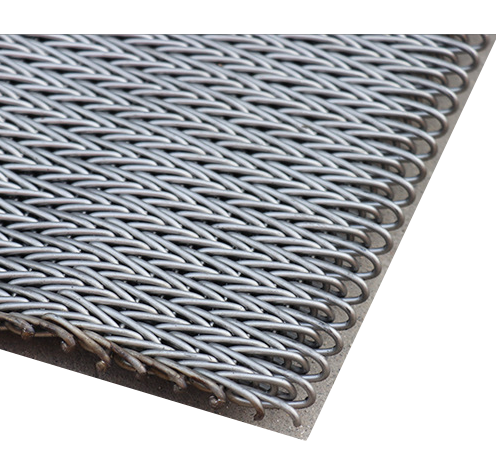

This herringbone mesh conveyor belt is woven from SUS304 stainless steel wires in a balanced herringbone pattern, delivering a smooth, burr-free surface for safe and stable food conveyance. The interlocked left and right hand spirals form a dense, uniform mesh that minimizes product vibration and provides excellent flatness during operation.

Key Specifications

Parameter Value
Material SUS304 Stainless Steel (SUS316 optional)
Weave Type Herringbone Balanced Weave
Spiral Wire Dia 0.8-2.5mm
Connecting Rod Dia 1.5-4.0mm
Max Operating Temp 750 Degree C
Belt Width 100-4000mm Customizable

Product Features

  • SUS304 food grade material with excellent corrosion and rust resistance
  • Herringbone weave provides a stable, non-slip conveying surface
  • High temperature resistance up to 750 Degree C for harsh processing environments
  • Smooth surface for easy cleaning and sanitary maintenance
  • Available with welded edge, laddered edge or chain edge
  • Customizable width, mesh opening and wire diameter

Applications

Ideal for food processing, vegetable blanching, washing and draining lines, fruit conveying, seafood processing and other sanitary conveying applications.

SUS304 Herringbone Mesh Conveyor Belt Stainless Steel Balanced Weave Wire Belt for Food Processing

FAQ

Q1: Are you a factory?
A: Yes, we are a professional wire mesh conveyor belt manufacturer with 15 years of export experience.

Q2: Can the belt be customized?
A: Yes, width, length, mesh opening, wire diameter and edge type are all customizable.

Q3: What is the delivery time?
A: 7-15 working days after deposit confirmation.

Contact us for the factory price of SUS304 herringbone mesh conveyor belts today.
