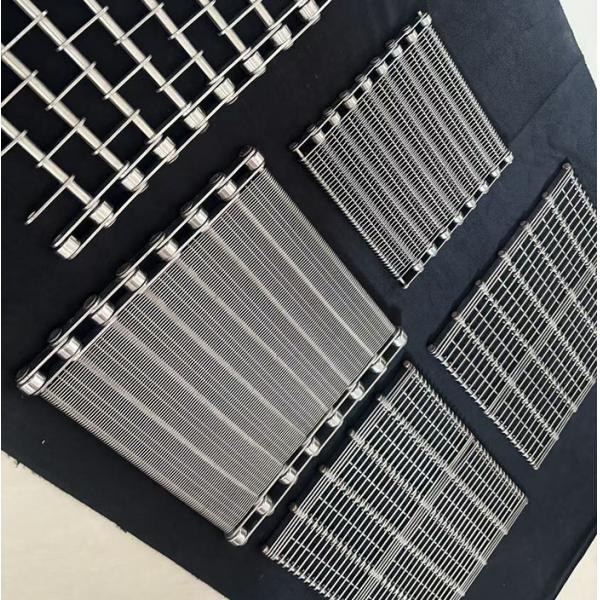

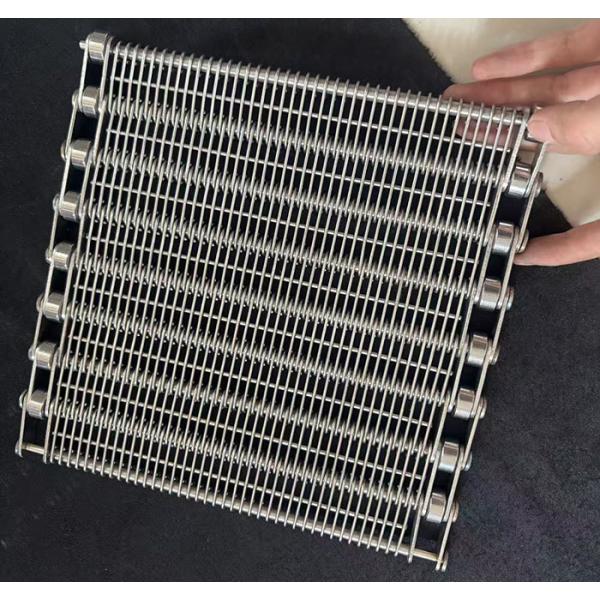

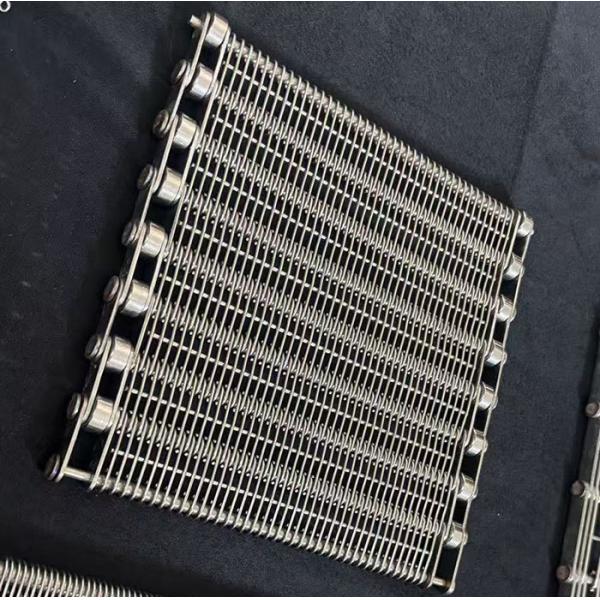

304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
Specifications
Brand Name :
comesh
Model Number :
zora250120
Certification :
FDA
Place of Origin :
hebei
MOQ :
1 meter
Price :
USD2.0~USD8.0
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50meters 15days
Delivery Time :
20days
Packaging Details :
wooden box 180*120*65cm
Common material :
304/316/316L Stainless Steel
Wire Type :
Round,Flat
Side Process :
Welding,With Chain
Load-bearing :
50KG,100KG ......
Application :
Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club
Feature :
Single Row, Double Row
Spiral Wire Dia :
0.4-8mm or customized
String Wire Dia :
0.4-8mm or customized
Rod Dia :
1-20mm or customized
Speed :
Adjustable
Surface treatment :
Polishing
Technique  :
welding
Color :
Silver
Adavantage :
Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance
Product Name :
Pizza Oven 304 Stainless Steel Wire Mesh Conveyor Belt For Baking
Keyword :
Wire Mesh Conveyor Belt
Description
High Temperature Resistant Stainless Steel Balanced Conveyor Belt for Furnace and Drying Systems
304 316 Stainless Steel Roller Chain Driven Belt For Deepfry
Balanced weave spiral mesh belt as the simplest version of universal weave conveyor belt features right and left hand round wires twisted into each other similar to a diamond mesh wire cloth. This design provides large open area to enhance the efficiency of product washing and drying process.
Stainless steel wire mesh chain conveyor belt is a type of conveyor belt that combines stainless steel wire mesh with interlocking chains to create a robust and versatile conveying surface. This type of belt is commonly used in industrial applications that require strength, durability, and efficient product transportation.
Roller Chain Driven Belt Specification
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
Balanced Woven Belt
A: Spiral Wire Pitch (mm)
B: Spiral Wire Diameter (mm)
C: Cross Rod Pitch (mm)
D: Cross Wire Diameter (mm)
Balanced Woven Belt Chain Edge with Chain Edge
A: Spiral Wire Pitch (mm)
B: Spiral Wire Diameter (mm)
C: Cross Rod Pitch (mm)
D: Cross Wire Diameter (mm)
E: Roller Diameter (mm)
F: Support Rod Diameter (mm)
G: Support Rod Pitch (mm)
H: Chain Pitch (mm)
I: Plate Thickness (mm)
Stainless steel wire mesh chain conveyor belts offer a durable and efficient solution for conveying products in industrial applications. Their combination of stainless steel wire mesh and interlocking chains provides strength, stability, and customization options to meet specific conveying needs.
Applications include: Transporting light products, oven, froster and frying equipment, annealing and cleaning facilities, wrapping machines, serving as metallic screen at lifting platforms, and metal working industry even at high temperatures.
Material Availability
Material Maximum Operating Temperature °C
Carbon Steel 550
Galvanised Mild Steel 400
Chrome Molybdenum 700
304 Stainless Steel 750
321 Stainless Steel 750
316 Stainless Steel 800
316L Stainless Steel 800
314 Stainless Steel 1120
Roller Chain Driven Belt Features
  • Smooth and burr-free. The finish is smooth and burr-free for quick and easy cleaning, maximizing production.
  • High temperature resistance. The stainless steel material can maintain the perfect performance even in the extremely high or low temperature applications.
  • Corrosion and rust resistance. The stainless steel material and galvanized steel have excellent chemical stability, which are corrosion and rust resistance.
  • Durable and long service life. The high quality material and rigid structure can ensure the long lifespan of the flexible rod conveyor belt.
  • Easy to install and replace. The flexible rod conveyor belt is lightweight and easy to install and replace.
  • U-shaped links can be added on the center of conveyor belt. To decrease turning radii and improve conveying efficiency, the U-shaped conveyor belt are added onto the center of the conveyor belt.
  • Side guards are available. Side guards can be added on both side of the conveyor belt to prevent products from spillage.
Belt Types
  • Standard Balanced Spiral Woven Belt
  • Double Balanced Spiral Woven Belt
  • Standard balanced Spiral Woven Belt with straight cross wire
  • Double Balanced Spiral Woven Belt with straight cross wire
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
Edge Type
  • Welded Edge
  • Laddered Edge
  • Hook Edge
  • Chain Edge Driven Mesh
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
Chain Type
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens 304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens 304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
Contact Us
304 Stainless Steel Wire Mesh Conveyor Belt 50KG Load for Baking Ovens
FAQ
Q1. Are you a factory or trading company?
A: We are both factory and trade company
Q2. How to place an order?
A: Once you find the US, you can place an order signed a contract with the US.30% deposit is charged before customized fabric are manufactured
Q3. What about payment terms?
A: T/T, L/C, Western Union, Escrow, Paypal, and some other payment terms are accepted.
Q4. What about the shipping date?
A: The shipping date would be in 15 days after contract confirmed, except customized fabric.
