Herringbone Compound Weave Mesh Conveyor Belt Stainless Steel Wire Belt for Stable Product Flow
Herringbone Compound Weave Mesh Conveyor Belt Stainless Steel Wire Belt for Stable Product Flow
Herringbone Compound Weave Mesh Conveyor Belt Stainless Steel Wire Belt for Stable Product Flow
Herringbone Compound Weave Mesh Conveyor Belt Stainless Steel Wire Belt for Stable Product Flow
Specifications
Surface Finish :
Smooth Dense Surface
Place of Origin :
Hebei, China
Application :
Bakery, Snack, Frozen Food Lines
Load Capacity :
50-100 kg per Square Meter
Certification :
FDA
Belt Structure :
Herringbone Compound Weave
Maximum Operating Temperature :
800 Degree C
Belt Width :
250-4500mm Customizable
Payment Terms :
T/T,L/C,D/P,Western Union
Model Number :
Na-20260820
Packaging Details :
Reinforced export wooden cases with inner foam protection, 200x130x70cm
Weave Density :
Compound Dense Weave
Brand Name :
COMESH
MOQ :
1 Square Meter
Price :
USD 25-68 / Square Meter
Material :
SUS304 / SUS316 Stainless Steel
Wire Diameter :
0.7-2.2mm
Mesh Opening :
5-18mm Customizable
Supply Ability :
3800 Square Meters per Month
Delivery Time :
10-18 working days after confirmation
Edge Type :
Welded Edge / Laddered Edge
Description

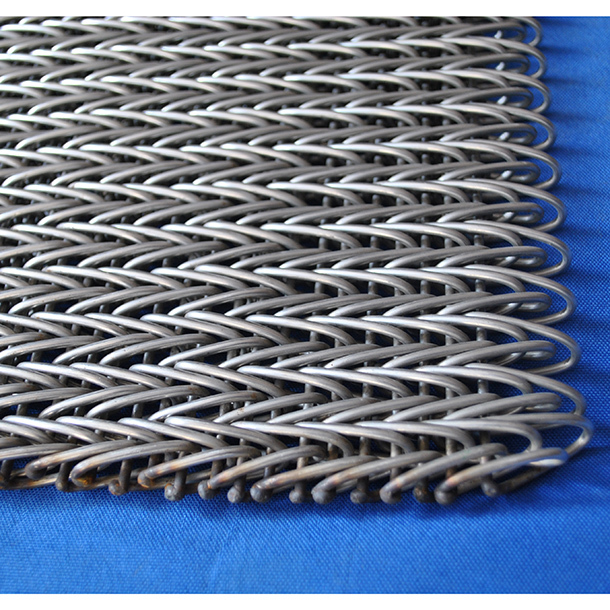

Herringbone Compound Weave Mesh Conveyor Belt Stainless Steel Wire Belt for Stable Product Flow

This belt combines the directional stability of a herringbone pattern with the density of a compound weave structure, creating a versatile conveying surface that keeps products perfectly aligned and stable throughout the production flow. The compact weave minimizes vibration and product shift on fast moving lines.

Key Specifications

Parameter Value
Material SUS304 / SUS316 Stainless Steel
Belt Structure Herringbone Compound Weave
Wire Diameter 0.7-2.2mm
Mesh Opening 5-18mm Customizable
Max Operating Temp 800 Degree C
Belt Width 250-4500mm Customizable

Product Features

  • Herringbone pattern provides directional stability for straight line conveying
  • Compound dense weave supports small products without sagging
  • Minimized vibration keeps products aligned on high speed lines
  • FDA compliant food grade stainless steel
  • Excellent heat resistance for baking and freezing cycles
  • Customizable mesh opening, wire diameter, width and length

Applications

Widely applied in bakery lines, snack food production, frozen food conveying, confectionery lines and other applications demanding stable product flow.

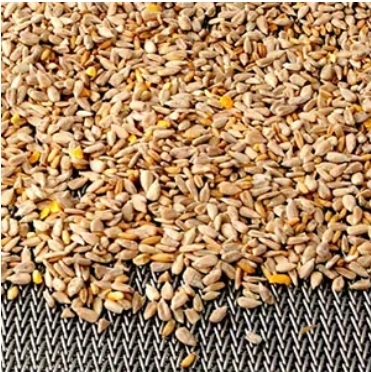

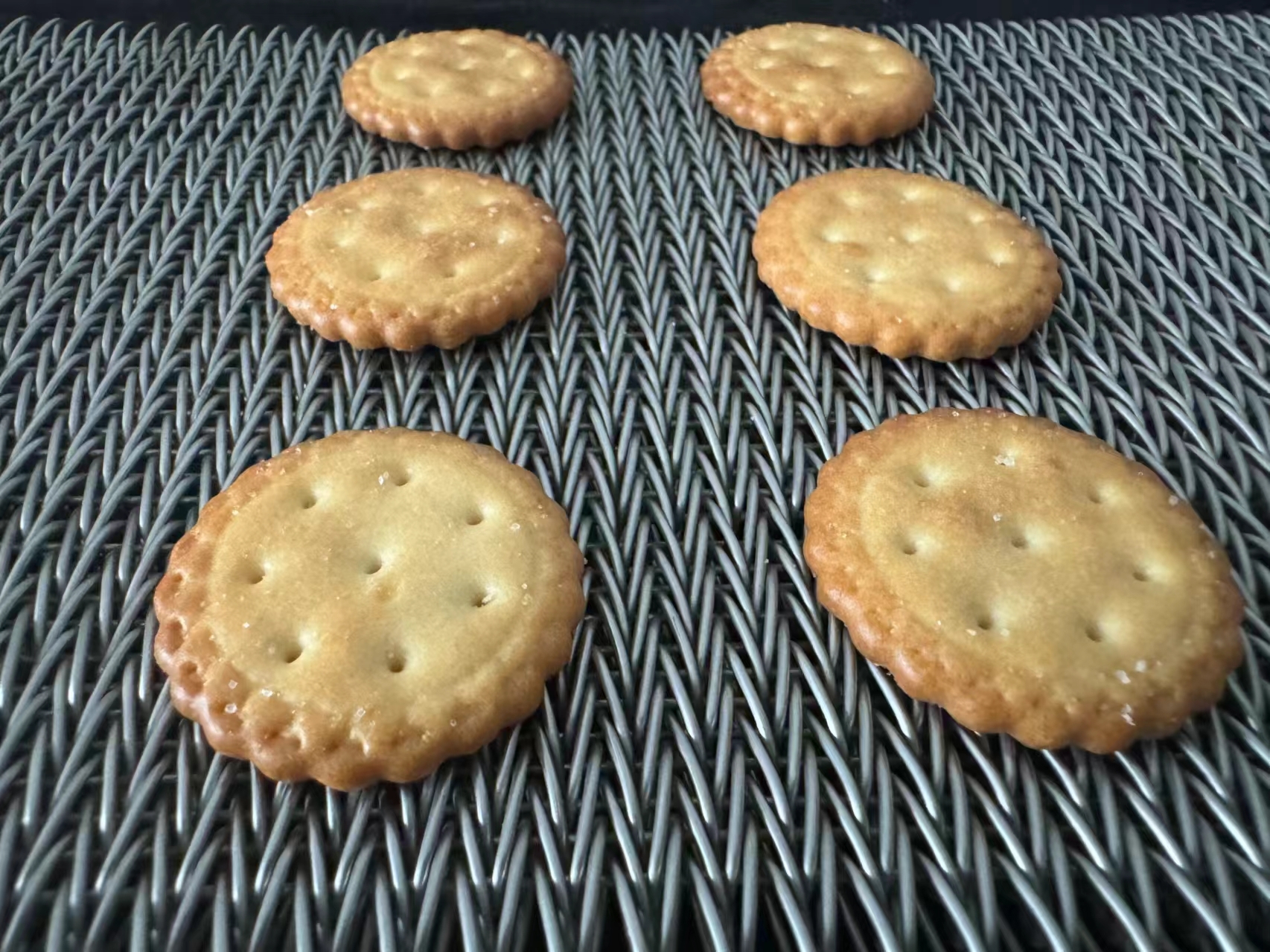

Herringbone Compound Weave Mesh Conveyor Belt Stainless Steel Wire Belt for Stable Product FlowHerringbone Compound Weave Mesh Conveyor Belt Stainless Steel Wire Belt for Stable Product Flow

FAQ

Q1: What makes this belt stable?
A: The herringbone pattern combined with compound weave reduces vibration and keeps products aligned during conveying.

Q2: Can it handle frozen food?
A: Yes, it works in both baking temperatures up to 800 Degree C and freezing environments.

Q3: Is customization available?
A: Yes, mesh opening, wire diameter, width and length are all customizable.

Contact us for a quote on herringbone compound weave mesh conveyor belts today.
