SUS304 No Slip Mesh Conveyor Belt Anti Slip Stainless Steel Mesh Belt for Incline Conveying
SUS304 No Slip Mesh Conveyor Belt Anti Slip Stainless Steel Mesh Belt for Incline Conveying
SUS304 No Slip Mesh Conveyor Belt Anti Slip Stainless Steel Mesh Belt for Incline Conveying
SUS304 No Slip Mesh Conveyor Belt Anti Slip Stainless Steel Mesh Belt for Incline Conveying
Specifications
Belt Structure :
No Slip Grip Mesh
MOQ :
2 Square Meters
Edge Type :
Welded Edge / Chain Edge
Certification :
FDA
Mesh Opening :
8-25mm Customizable
Belt Width :
200-4000mm Customizable
Price :
USD 18-50 / Square Meter
Packaging Details :
Export wooden case with steel strapping, 185x120x65cm
Maximum Operating Temperature :
750 Degree C
Incline Angle :
Up to 35 Degrees
Application :
Incline Conveying, Elevating Lines, Parts Washing
Load Capacity :
60-120 kg per Square Meter
Model Number :
Na-20260820
Payment Terms :
T/T,L/C,Western Union,PayPal
Brand Name :
COMESH
Material :
SUS304 Stainless Steel
Anti Slip Design :
Raised Grip Surface
Delivery Time :
7-16 working days after deposit
Wire Diameter :
1.2-3.0mm
Place of Origin :
Hebei, China
Supply Ability :
2400 Square Meters per Month
Description

SUS304 No Slip Mesh Conveyor Belt Anti Slip Stainless Steel Mesh Belt for Incline Conveying

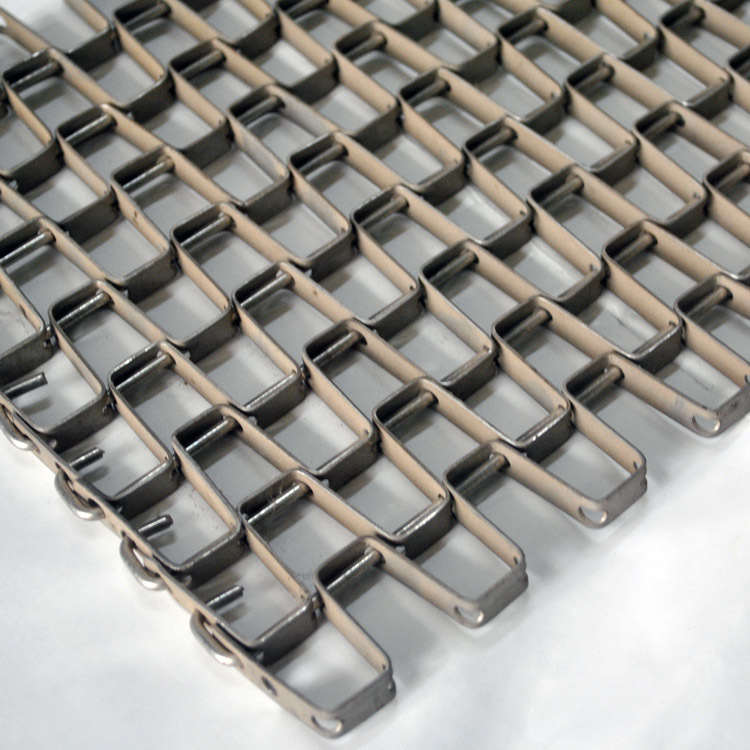

This no slip mesh conveyor belt features a specially designed raised grip surface that firmly holds products in position during incline conveying and elevating operations. The SUS304 stainless steel construction delivers excellent corrosion resistance while the grip texture prevents product sliding and accumulation.

Key Specifications

Parameter Value
Material SUS304 Stainless Steel
Belt Structure No Slip Grip Mesh
Wire Diameter 1.2-3.0mm
Mesh Opening 8-25mm Customizable
Max Operating Temp 750 Degree C
Belt Width 200-4000mm Customizable

Product Features

  • Raised grip surface prevents product sliding on inclines up to 35 degrees
  • SUS304 stainless steel with excellent corrosion and wear resistance
  • Stable tracking reduces downtime and maintenance cost
  • Open mesh structure allows drainage and air flow during conveying
  • Available with welded edge or chain edge
  • Customizable width, mesh opening and wire diameter

Applications

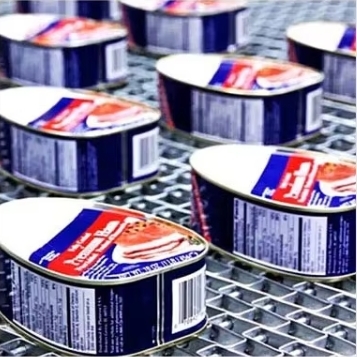

Ideal for incline and elevating conveyor lines, parts washing machines, vegetable and fruit elevating lines, and other applications requiring non slip conveying.

SUS304 No Slip Mesh Conveyor Belt Anti Slip Stainless Steel Mesh Belt for Incline ConveyingSUS304 No Slip Mesh Conveyor Belt Anti Slip Stainless Steel Mesh Belt for Incline Conveying

FAQ

Q1: What incline angle can the belt handle?
A: The grip surface design supports incline conveying up to 35 degrees without product sliding.

Q2: Is the belt suitable for wet processes?
A: Yes, SUS304 material resists corrosion in washing and wet processing environments.

Q3: Can width be customized?
A: Yes, belt width from 200mm to 4000mm is customizable.

Contact us for the factory price of SUS304 no slip mesh conveyor belts today.
